Product Information

Manufacturer

ASUS

Series

X570

Variant

ROG X570 Crosshair VIII Dark Hero

Release Year

2020

Manufacturer Color

Black

UPC

192876961629

EAN

0192876961629

Part Numbers

ROG Crosshair VIII Dark Hero Crosshair VIII Dark Hero 90MB1760-M0EAY0

BuildCores ID

1xw0bsn9t

General Specifications

Socket

AM4

Form Factor

ATX

Chipset

AMD X570

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK GREY RGB

Lighting

Unknown

PCIe Slots

3 x PCIe 4.0 x16 1 x PCIe 4.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280/22110 PCIe 3.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

1 x Realtek RTL8125-CG 2.5Gb Ethernet 1 Gb/s Inte I211-AT 1Gb Ethernet 10 Gb/s

WiFi

Wifi 6 Bluetooth 5.1

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220

Audio Channels

7.1

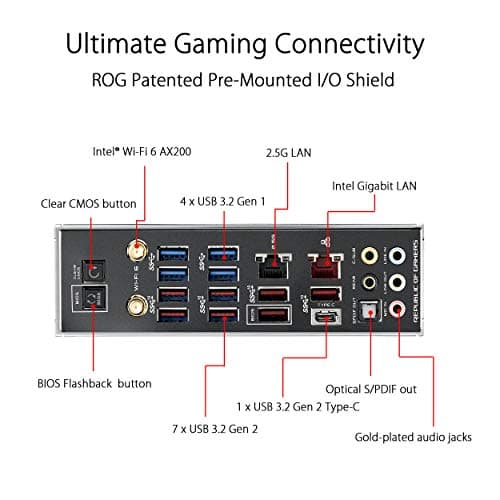

Back Panel Ports

8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x ASUS Wi-Fi Module 1 x Realtek RTL8125-CG 2.5Gb Ethernet port 1 x Intel I211-AT 1Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
