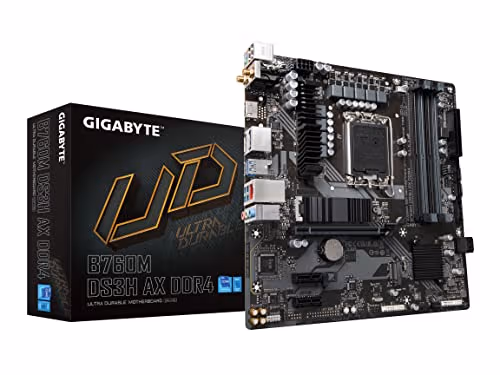

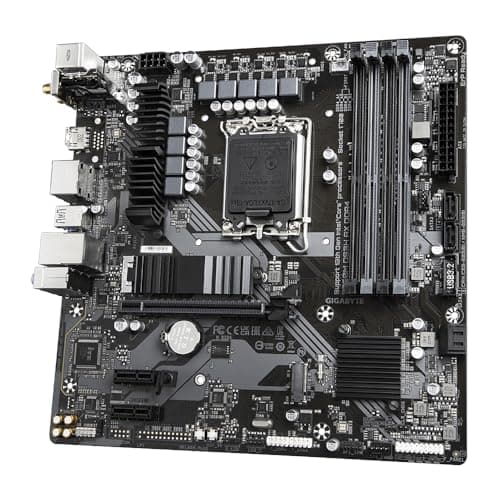

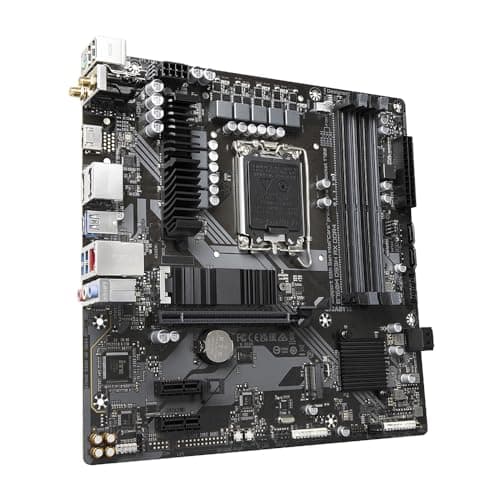

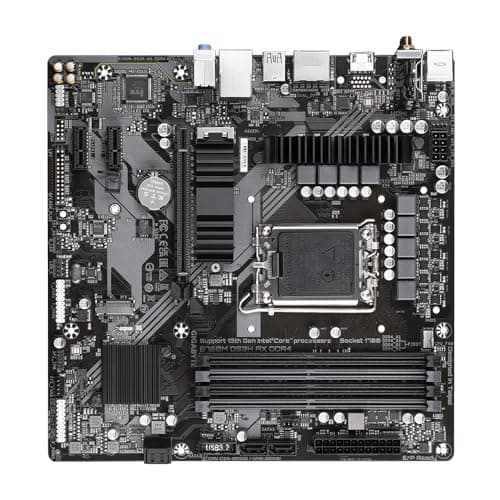

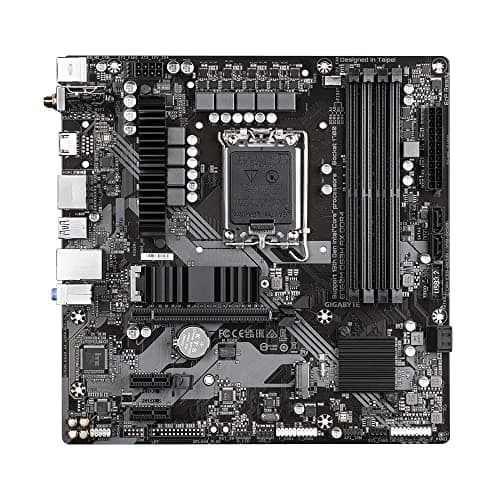

Gigabyte B760M DS3H AX DDR4 Micro ATX image

Gigabyte B760M DS3H AX DDR4 Micro ATX main image

Product Information

Manufacturer

Gigabyte

Series

B760M

Variant

DS3H AX DDR4

Release Year

2024

Manufacturer Color

Black

UPC

889523034620

EAN

0889523034620

Part Numbers

B760M DS3H AX DDR4

BuildCores ID

5o8qu6ieh

General Specifications

Socket

LGA 1700

Form Factor

Micro ATX

Chipset

Intel B760

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 3.0 x1

M.2 Slots

M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wi-Fi 6E Bluetooth 5.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

Back Panel Ports

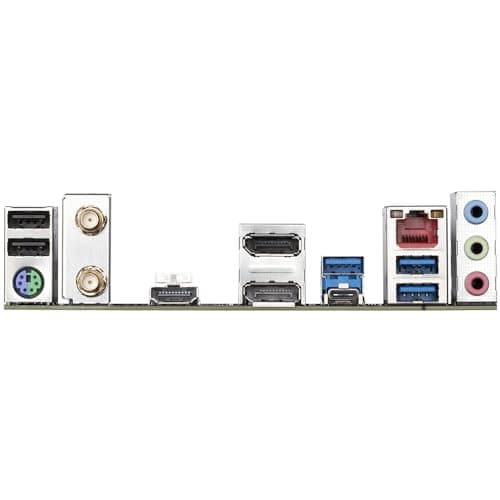

1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x DisplayPorts 1 x USB Type-C port with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

See an issue?Report an issue on OpenDB

Motherboard

Gigabyte B760M DS3H AX DDR4 Micro ATX

Name: Gigabyte B760M DS3H AX DDR4 Micro ATX
Brand: Gigabyte
SKU: 5o8qu6ieh

Best Price

$129.99

via

	—	$129.99
Loading... Loading
	FREE s/h	$129.99
Loading... Loading
	FREE s/h	$133.98
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$129.99 via Amazon Loading... Loading
	FREE s/h	—	In stock	$129.99 via Newegg Loading... Loading
	FREE s/h	—	In stock	$133.98 via Walmart Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$129.99 via Amazon Loading... Loading
	FREE s/h	—	In stock	$129.99 via Newegg Loading... Loading
	FREE s/h	—	In stock	$133.98 via Walmart Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.
