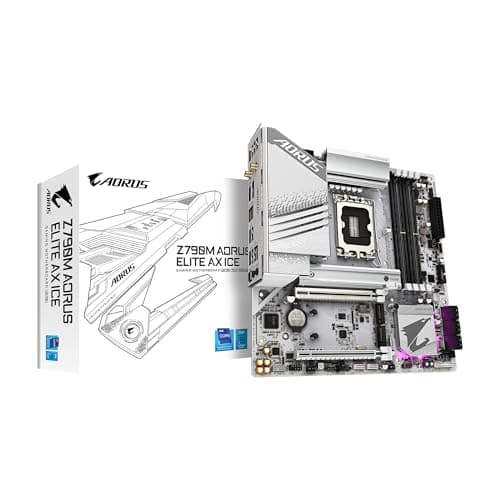

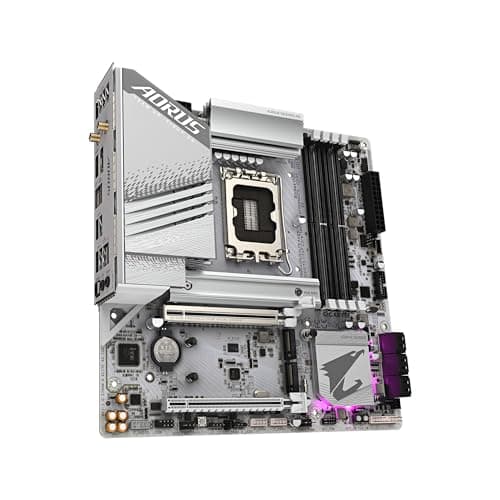

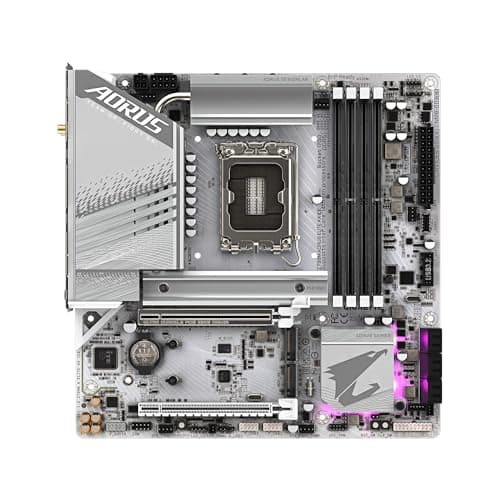

Gigabyte Z790M AORUS ELITE AX ICE DDR5 Micro ATX image

Gigabyte Z790M AORUS ELITE AX ICE DDR5 Micro ATX main image

Product Information

Manufacturer

Gigabyte

Series

Z790M

Variant

AORUS ELITE AX ICE

Release Year

Unknown

Manufacturer Color

Unknown

UPC

889523041857

EAN

4719331860585

Part Numbers

Z790M AORUS ELITE AX ICE

BuildCores ID

61ta8omn1

General Specifications

Socket

LGA 1700

Form Factor

Micro ATX

Chipset

Intel Z790

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

WHITE GREY

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x16

M.2 Slots

M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4 M 2280-22110 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

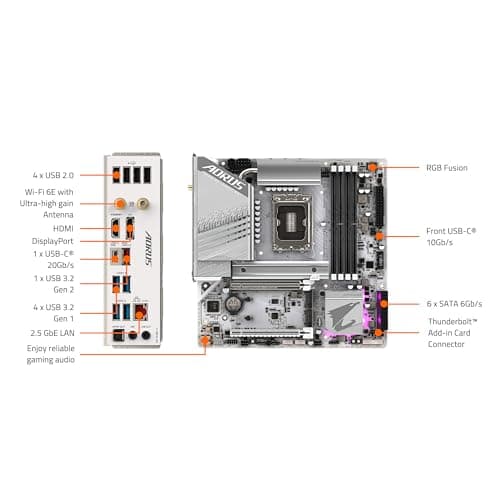

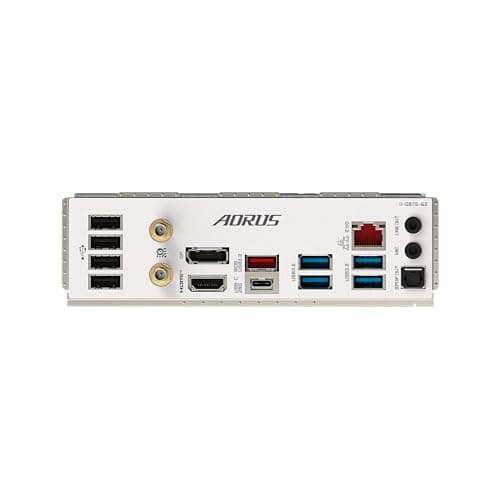

Back Panel Ports

1 x USB Type-C® port with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

See an issue?Report an issue on OpenDB

Motherboard

Gigabyte Z790M AORUS ELITE AX ICE DDR5 Micro ATX

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Product Information

Manufacturer

Gigabyte

Series

Z790M

Variant

AORUS ELITE AX ICE

Release Year

Unknown

Manufacturer Color

Unknown

UPC

889523041857

EAN

4719331860585

Part Numbers

Z790M AORUS ELITE AX ICE

BuildCores ID

61ta8omn1

General Specifications

Socket

LGA 1700

Form Factor

Micro ATX

Chipset

Intel Z790

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

WHITE GREY

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x16

M.2 Slots

M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4 M 2280-22110 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

Back Panel Ports
