Product Information

Manufacturer

MSI

Series

Z790

Variant

PRO-A WIFI

Release Year

2022

Manufacturer Color

Black

UPC

824142301388

EAN

0824142301388

Part Numbers

PRO Z790-A WIFI DDR4 7E07-001R PROZ790AWIFID4 911-7E07-001 Z790-A WIFI DDR4

BuildCores ID

97akqx5gh

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel Z790

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK GREY

Lighting

Unknown

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242-2260 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

1 x Intel 2.5Gbps LAN controller 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC4080

Audio Channels

7.1

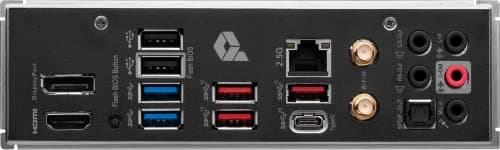

Back Panel Ports

1 x DisplayPort 1 x HDMI port 1 x Flash BIOS button 2 x USB 2.0 Type-A ports (From Hub GL850G) 2 x USB 3.2 Gen1 5Gbps Type-A ports 3 x USB 3.2 Gen 2 10Gbps Type-A ports 1 x USB 3.2 Gen 2x2 20Gbps Type-C port 1 x 2.5Gbps LAN (RJ45) jack 2 x Wi-Fi antenna connectors 5 x Audio jacks 1 x Optical S/PDIF Out connector

See an issue?Report an issue on OpenDB
