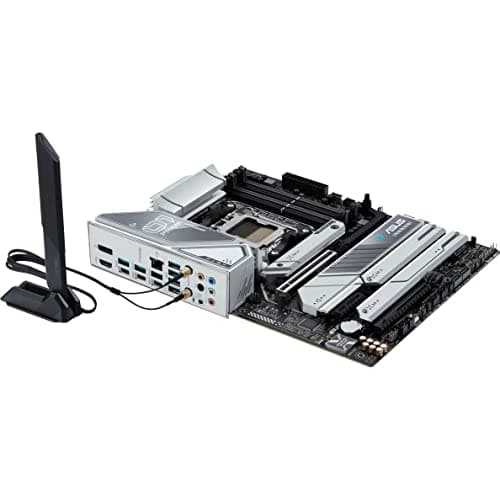

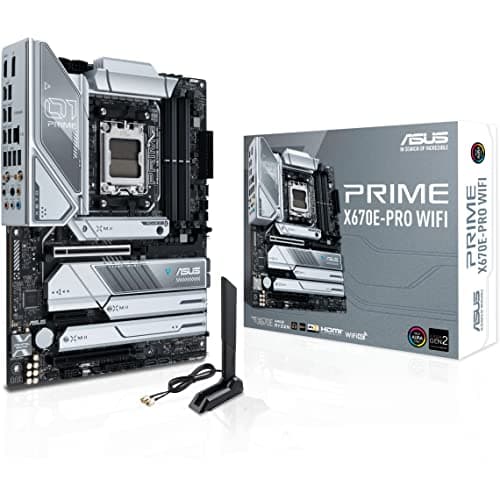

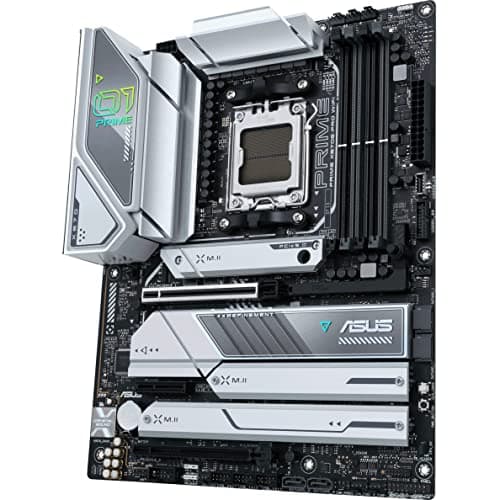

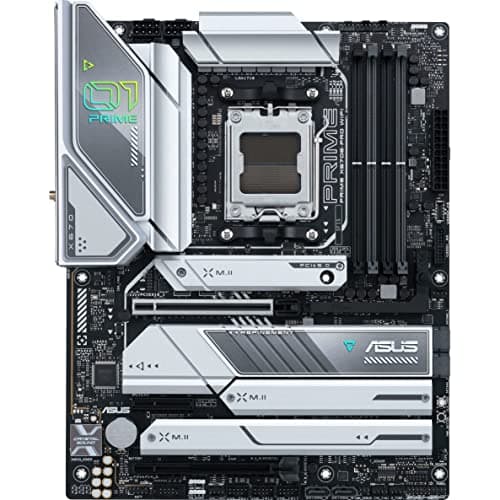

Asus X670E PRIME-PRO WIFI AM5 DDR5 ATX image

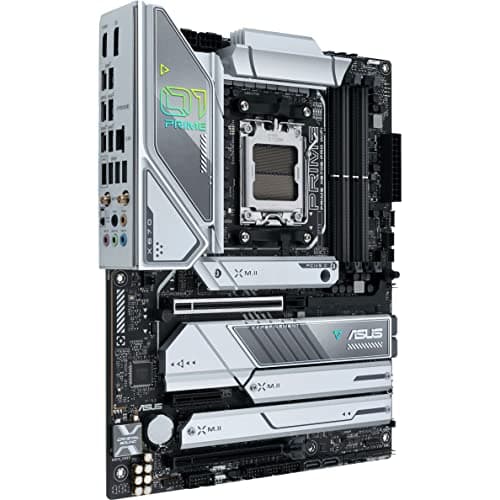

Asus X670E PRIME-PRO WIFI AM5 DDR5 ATX main image

Product Information

Manufacturer

ASUS

Series

X670E

Variant

E-PRO WIFI

Release Year

2022

Manufacturer Color

Unknown

UPC

195553905664

EAN

0195553905664

Part Numbers

PRIME X670E-PRO WIFI 90MB1BL0-M0AAY0 90MB1BL0-M0EAY0

BuildCores ID

a3zbpnj8u

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X670E

Max Memory

192 GB

Memory Type

DDR5

Memory Slots

Colors

GREY BLACK

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 1 x PCIe 4.0 x4

M.2 Slots

M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

2x2 Wi-Fi 6E Bluetooth v5.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

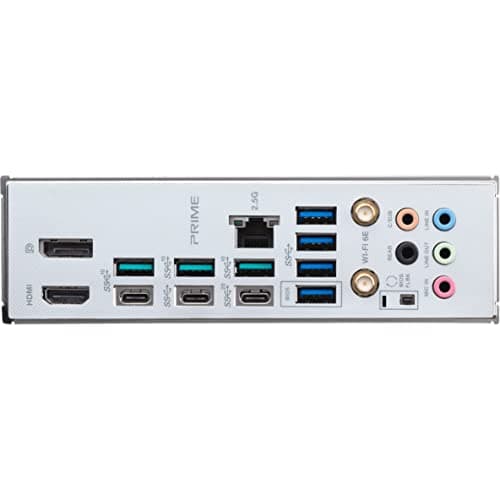

Back Panel Ports

1 x 2.5 Gb/s Ports (Realtek) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A 1 x USB Type-C) 5 x USB 3.2 Gen 1 ports (4 x Type-A 1 x USB Type-C) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 5 x Audio jacks 1 x BIOS FlashBack button
