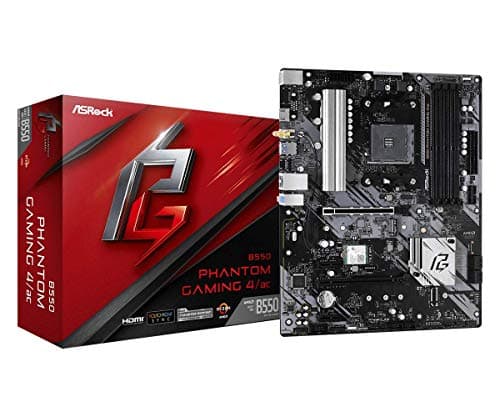

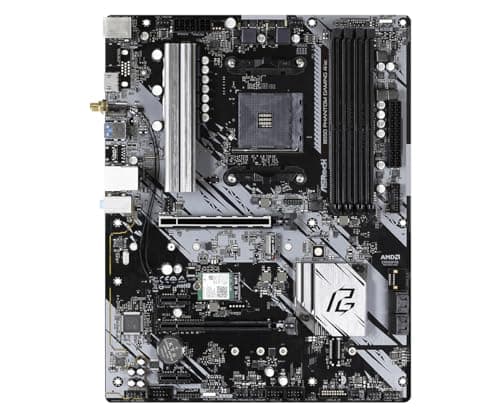

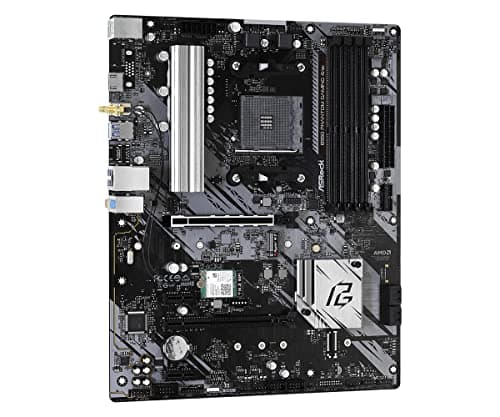

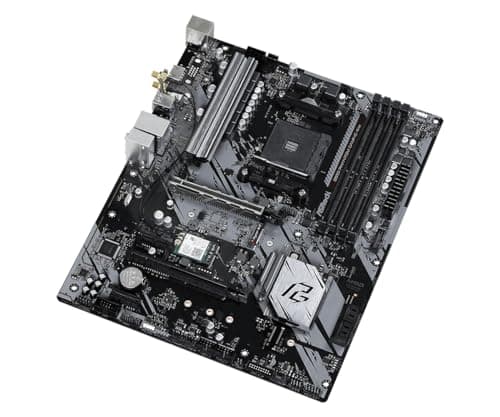

ASRock B550 Phantom Gaming 4/ac AM4 DDR4 ATX image

ASRock B550 Phantom Gaming 4/ac AM4 DDR4 ATX main image

Product Information

Manufacturer

ASRock

Series

B550

Variant

Phantom Gaming 4/ac

Release Year

2020

Manufacturer Color

Black

UPC

818281267025

EAN

4710483931512

Part Numbers

B550 Phantom Gaming 4 90-MXBDZ0-A0UAYZ B550 PHANTOM GAMING 4 AC B550 PHAN GAM 4 AC

BuildCores ID

d9djz77ie

General Specifications

Socket

AM4

Form Factor

ATX

Chipset

AMD B550

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

GREY BLACK

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x PCIe 3.0 x4

M.2 Slots

M 2260/2280/22110 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek RTL8111H 1 Gb/s

WiFi

WiFi 5 Bluetooth 4.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

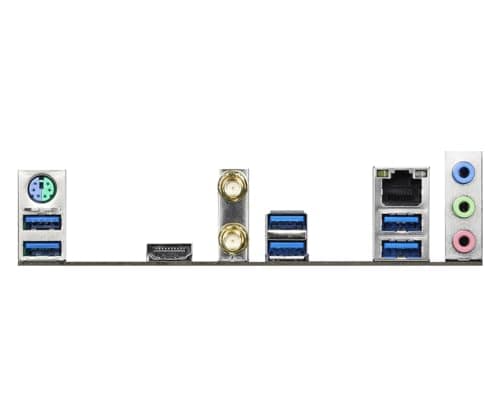

Back Panel Ports

2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 6 x USB 3.2 Gen1 Ports 1 x RJ-45 LAN Port with LED 3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

See an issue?Report an issue on OpenDB
