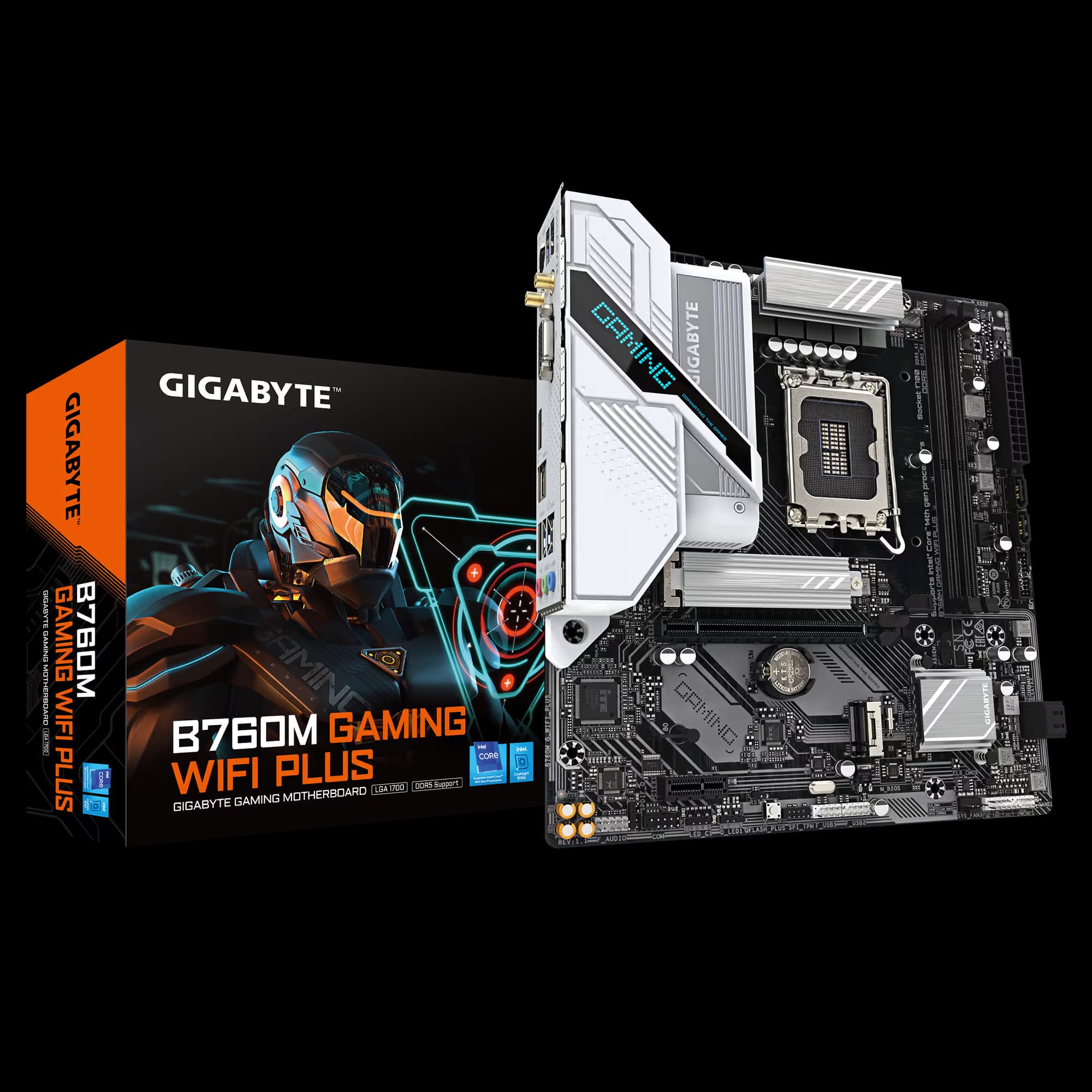

Gigabyte B760M GAMING WIFI PLUS DDR5 Micro ATX image

Gigabyte B760M GAMING WIFI PLUS DDR5 Micro ATX main image

General Specifications

Socket

LGA 1700

Form Factor

Micro ATX

Chipset

Intel B760

Max Memory

128 GB

Memory Type

DDR5

Memory Slots

Colors

GREY BLACK

Lighting

Unknown

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 3.0 x1

M.2 Slots

M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wifi 5 Bluetooth: 5.1

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

Back Panel Ports

1 x 2.5 Gb/s Ports (Realtek) 1x HDMI 2.1 1x DisplayPort 1.2 3x USB 3.2 Gen 1 Type-A 1x USB Type-C 2x USB 2.0 1x PS/2 Keyboard/Mouse 3x Audio Jacks 1x Q-Flash Plus Port

Product Information

Manufacturer

Gigabyte

Series

B760M

Variant

GAMING WIFI PLUS

Release Year

Unknown

Manufacturer Color

Unknown

UPC

None

EAN

None

Part Numbers

B760M GAMING WIFI PLUS

BuildCores ID

eliel94hy

See an issue?Report an issue on OpenDB
