Product Information

Manufacturer

ASRock

Series

Pro

Variant

B760 RS/D4

Release Year

2023

Manufacturer Color

Black/White

UPC

None

EAN

4710483942075

Part Numbers

90-MXBL80-A0UAYZ B760 PRO RS/D4

BuildCores ID

ero1zcmx9

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel B760

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

GREY BLACK

Lighting

Unknown

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 2260/2280 PCIe 4.0 x4 M 2260/2280 PCIe 4.0 x2 M 2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek RTL8125BG 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC897

Audio Channels

7.1

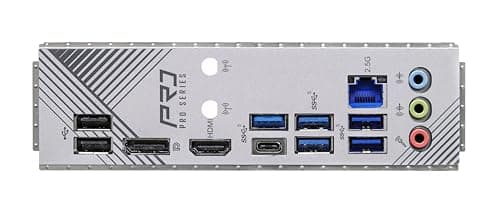

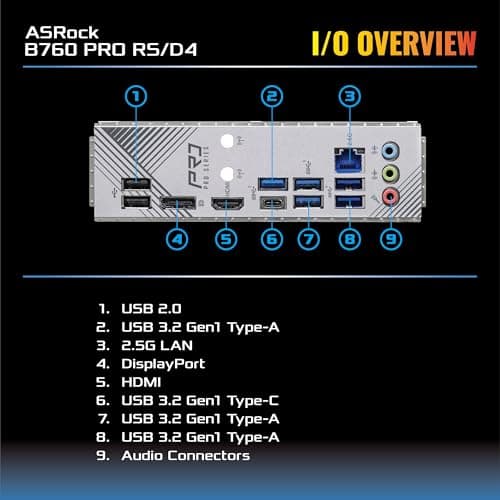

Back Panel Ports

1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port (Rear) 5 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port

See an issue?Report an issue on OpenDB

Motherboard

ASRock B760 Pro RS/D4 LGA1700 DDR4 ATX

Name: ASRock B760 Pro RS/D4 LGA1700 DDR4 ATX
Brand: ASRock
SKU: ero1zcmx9

Best Price

$205.97

via

	—	$205.97
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$205.97 via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$205.97 via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links
