Product Information

Manufacturer

Gigabyte

Series

TRX

Variant

AI TOP

Release Year

2024

Manufacturer Color

Unknown

UPC

889523044667

EAN

0889523044667

Part Numbers

TRX50 AI TOP

BuildCores ID

izpbu1sry

General Specifications

Socket

sTR5

Form Factor

ATX

Chipset

AMD TRX50

Max Memory

2000 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

3 x PCIe 5.0 x16

M.2 Slots

M 2280 PCIe 5.0 x4 M 2280 PCIe 5.0 x4 M 2280 PCIe 5.0 x4 M 2280 PCIe 5.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Dual 10GbE LAN 10 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC4080 + ALC897

Audio Channels

7.1

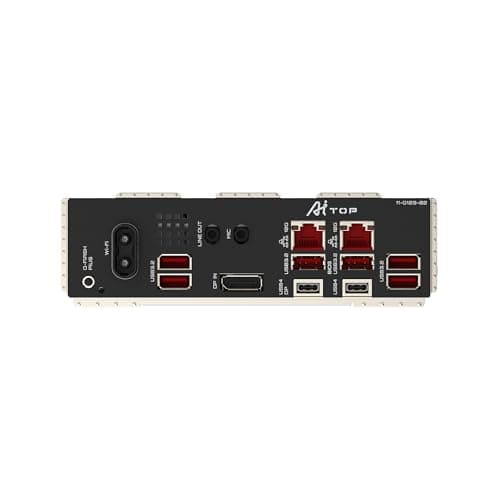

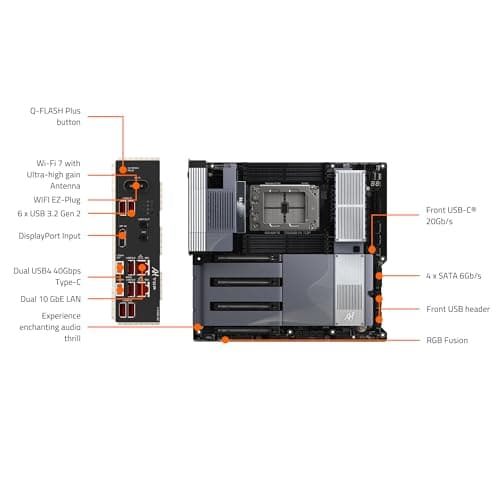

Back Panel Ports

1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort In port 1 x USB4® USB Type-C® port (DisplayPort) 1 x USB4® USB Type-C® port 6 x USB 3.2 Gen 2 Type-A ports (red) 2 x RJ-45 port 2 x audio jacks
