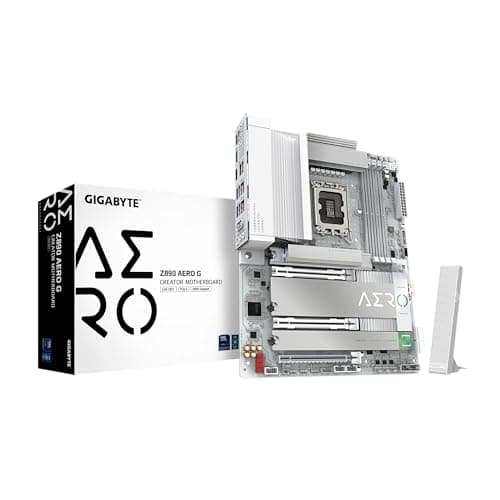

Gigabyte Z890 AERO G DDR5 ATX main image

Product Information

Manufacturer

Gigabyte

Series

Z890

Variant

AERO G

Release Year

Unknown

Manufacturer Color

Unknown

UPC

889523045190

EAN

0889523045190

Part Numbers

Z890 AERO G

BuildCores ID

jsjtu3max

General Specifications

Socket

LGA 1851

Form Factor

ATX

Chipset

Intel Z890

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

WHITE GREY

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 5.0 x8 1 x PCIe 4.0 x4

M.2 Slots

M 25110/22110/2580/2280 PCIe 5.0 x4 M 25110/22110/2580/2280 PCIe 4.0 x4 M 22110/2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC1220

Audio Channels

7.1

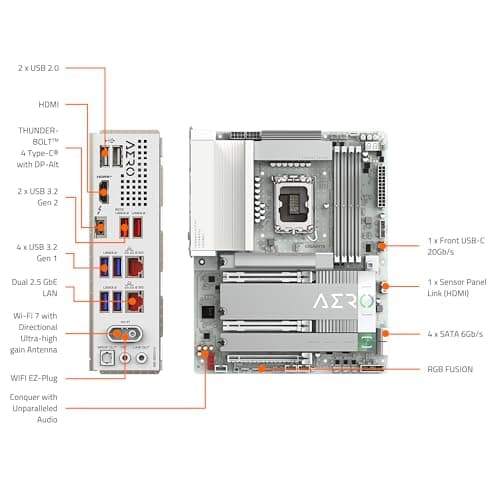

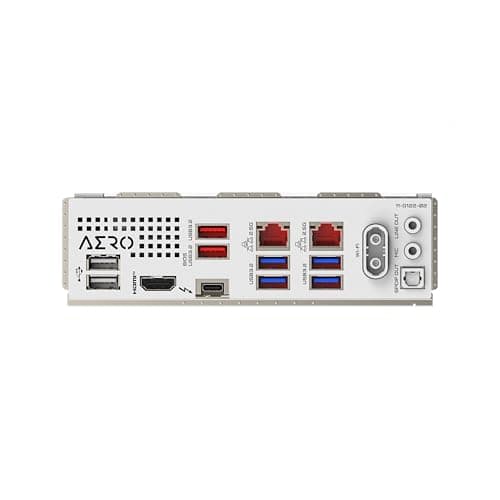

Back Panel Ports

1 x HDMI port 2 x USB 2.0/1.1 ports 2 x USB 3.2 Gen 2 Type-A ports (Red) 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C) 2 x RJ-45 ports (2.5GbE) 4 x USB 3.2 Gen 1 ports 2 x Antenna connectors (2T2R) 2 x Audio jacks 1 x Optical S/PDIF Out connector

See an issue?Report an issue on OpenDB

Motherboard

Gigabyte Z890 AERO G DDR5 ATX

Name: Gigabyte Z890 AERO G DDR5 ATX
Brand: Gigabyte
SKU: jsjtu3max

Best Price

$249.99

via

	—	$249.99
Loading... Loading
	FREE s/h	$249.99
Loading... Loading
	FREE s/h	$249.99
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$249.99 via Amazon Loading... Loading
	FREE s/h	—	In stock	$249.99 via Walmart Loading... Loading
	FREE s/h	—	In stock	$249.99 via Newegg Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$249.99 via Amazon Loading... Loading
	FREE s/h	—	In stock	$249.99 via Walmart Loading... Loading
	FREE s/h	—	In stock	$249.99 via Newegg Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links
