Product Information
Manufacturer
MSI
Series
B860
Variant
M-A WiFi
Release Year
Unknown
Manufacturer Color
Unknown
UPC
824142392942
EAN
0824142392942
Part Numbers
PRO B860M-A WIFI 601-7E42-01S 7E42-002R B860M-A PRO B860M-A WiFi
BuildCores ID
mdp94fhta
General Specifications
Socket
LGA 1851
Form Factor
Micro ATX
Chipset
Intel B860
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
GREY BLACK
PCIe Slots
4 x PCIe 5.0 x16 2 x PCIe 4.0 x1 1 x PCIe 4.0 x4
M.2 Slots
M 2280/2260/2242 PCIe 5.0 x4 M 2280/2260 PCIe 4.0 x4 M 2280 PCIe 4.0 x2
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 8126 5 Gb/s
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
2
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
1
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin 4-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC897
Audio Channels
7.1

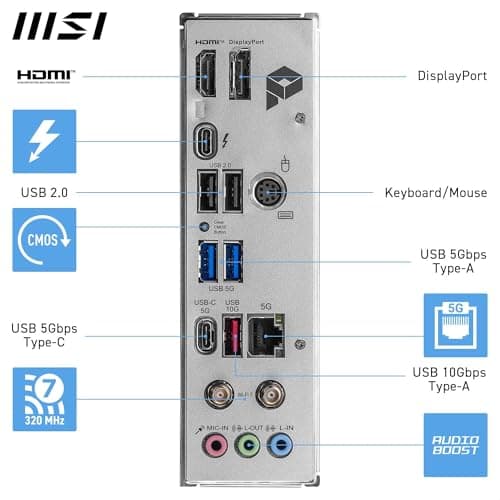

Back Panel Ports
1 x DisplayPort 1.4 1 x HDMI port 2.1 1 x Thunderbolt 4 USB-C port (Supports DisplayPort) 1 x USB 10Gbps Type-A port 1 x USB 5Gbps Type-C port 2 x USB 5Gbps Type-A ports 2 x USB 2.0 Type-A ports 1 x 5Gbps LAN (RJ45) port 2 x Wi-Fi antenna connectors 3 x Audio jacks 1 x Clear CMOS Button 1 x PS/2 port
Motherboard

3D

MSI B860 PRO M-A WIFI DDR5 Micro ATX

Best Price

$166.99

via
Loading...
Loading
Loading...
Loading
Loading...
Loading
Amazon

$166.99

Loading...
Loading
B&H Photo
FREE s/h

$169.99

Loading...
Loading
Newegg
FREE s/h

$179.99

Loading...
Loading
Walmart
FREE s/h

$181.98

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
In stock

$166.99

via Amazon

Loading...
Loading
B&H Photo
FREE s/h
In stock

$169.99

via B&H Photo

Loading...
Loading
Newegg
FREE s/h
In stock

$179.99

via Newegg

Loading...
Loading
Walmart
FREE s/h
In stock

$181.98

via Walmart

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
In stock

$166.99

via Amazon

Loading...
Loading
B&H Photo
FREE s/h
In stock

$169.99

via B&H Photo

Loading...
Loading
Newegg
FREE s/h
In stock

$179.99

via Newegg

Loading...
Loading
Walmart
FREE s/h
In stock

$181.98

via Walmart

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links
