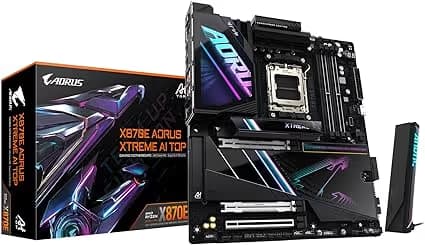

Gigabyte X870E AORUS XTREME X3D AI TOP image

Gigabyte X870E AORUS XTREME X3D AI TOP main image

Product Information

Manufacturer

Gigabyte

Series

X870E

Variant

AORUS XTREME X3D AI TOP

Release Year

Unknown

Manufacturer Color

Unknown

UPC

None

EAN

4719331866150

Part Numbers

X870E A XTR X AI TOP X870E AORUS XTREME AI TOP

BuildCores ID

nblys2yxi

General Specifications

Socket

AM5

Form Factor

EATX

Chipset

AMD X870E

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 5.0 x8 1 x PCIe 4.0 x4

M.2 Slots

M 2580/2280 PCIe 5.0 x4 M 22110/2280 PCIe 5.0 x4 M 22110/2280 PCIe 4.0 x4 M 22110/2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x2

SATA 6Gb/s

SATA 3Gb/s

Unknown

U.2 Ports

Unknown

Onboard Ethernet

None

WiFi

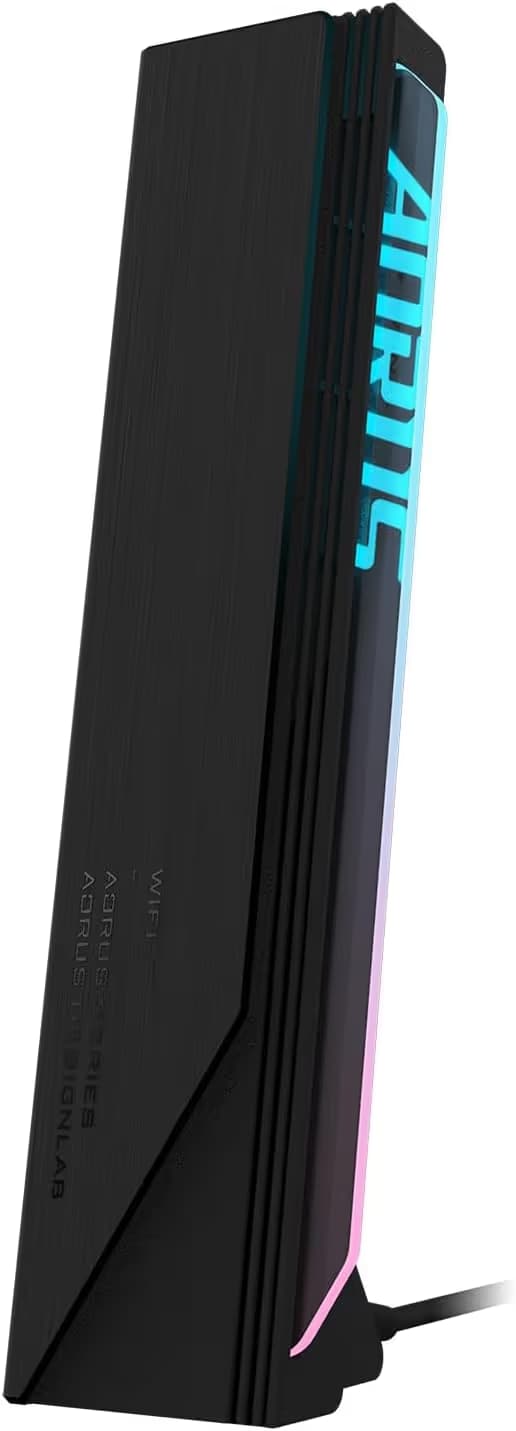

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

Unknown

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Unknown

Temperature Sensor Headers

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Unknown

RAID Support

Yes

Back-Connect Connectors

Unknown

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

ES9280AC

Audio Channels

2.0

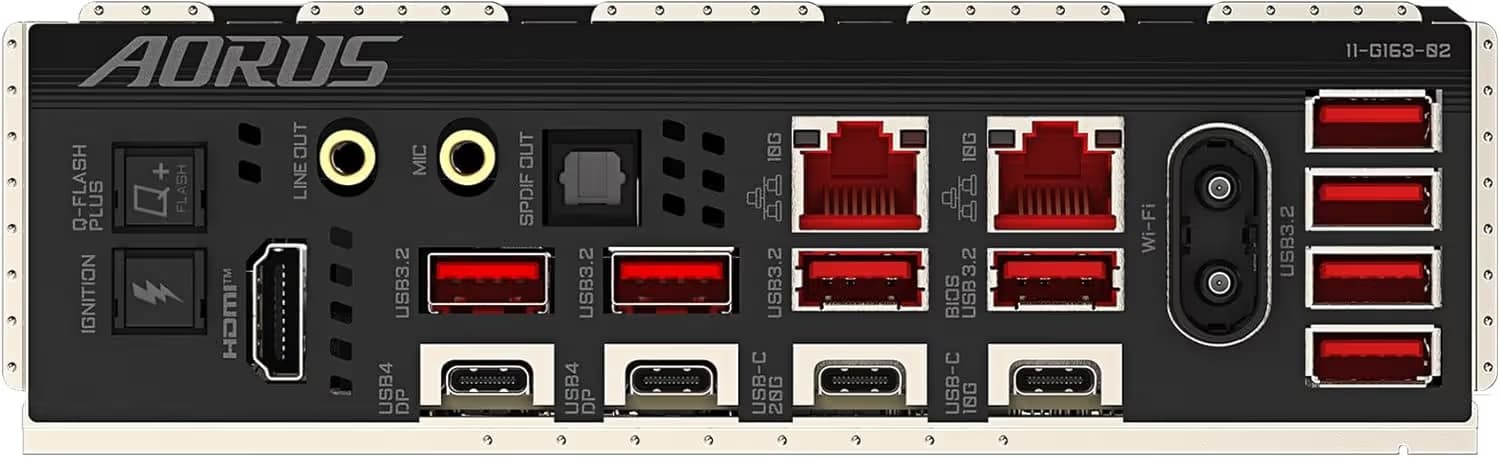

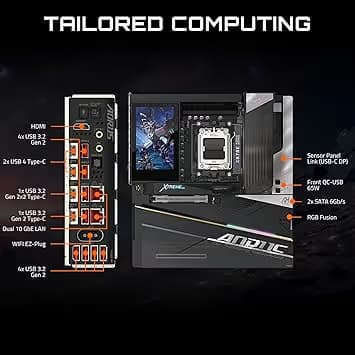

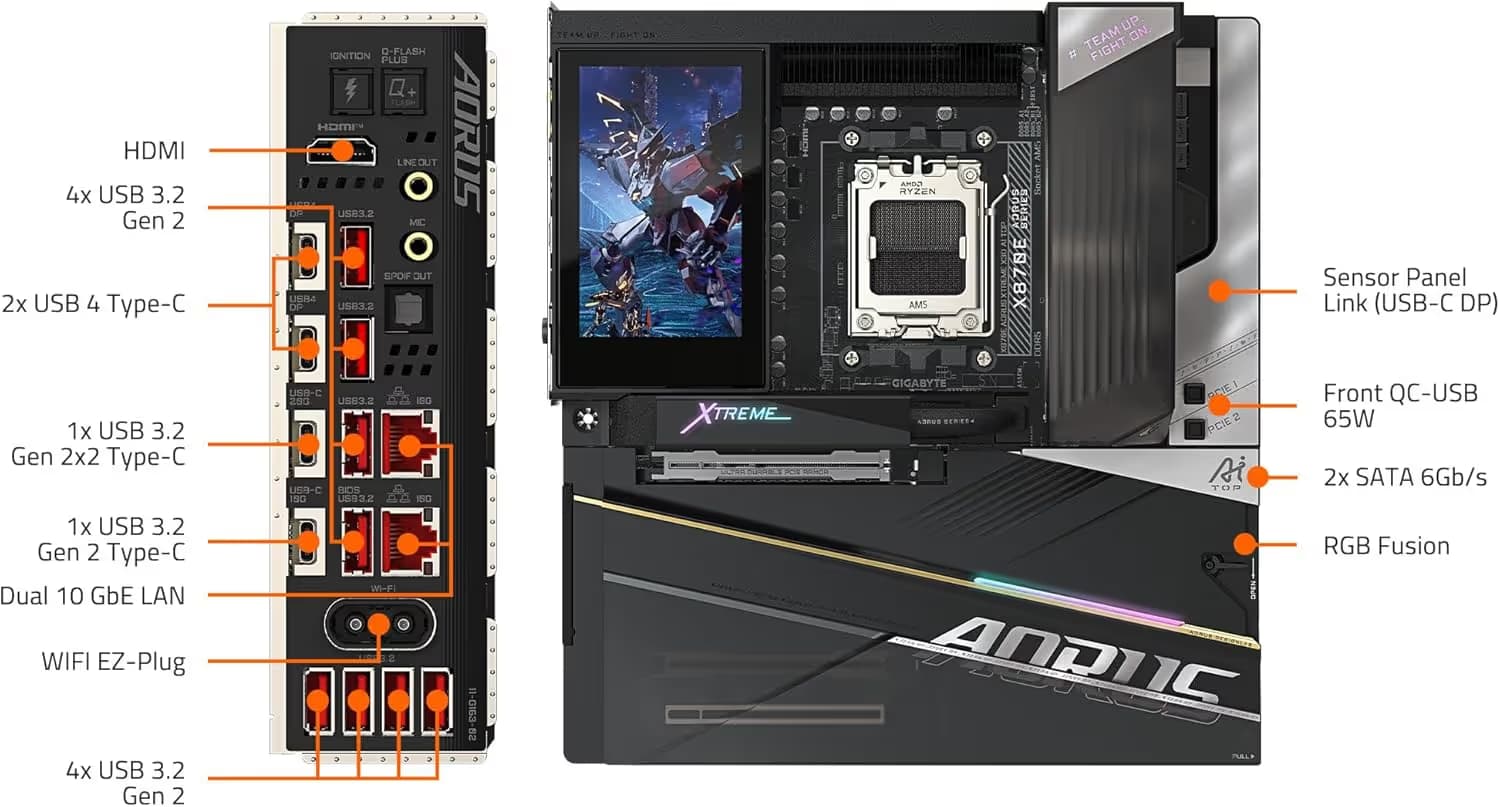

Back Panel Ports

1 x Q-Flash Plus button 1 x OC Ignition button 1 x HDMI port 2 x USB4 USB Type-C ports (DisplayPort) 1 x USB Type-C port (USB 3.2 Gen 2x2) 1 x USB Type-C port (USB 3.2 Gen 2) 8 x USB 3.2 Gen 2 Type-A ports (Red) 2 x RJ-45 ports (10GbE) 2 x Antenna connectors (2T2R) 2 x Audio jacks 1 x Optical S/PDIF Out connector

See an issue?Report an issue on OpenDB
