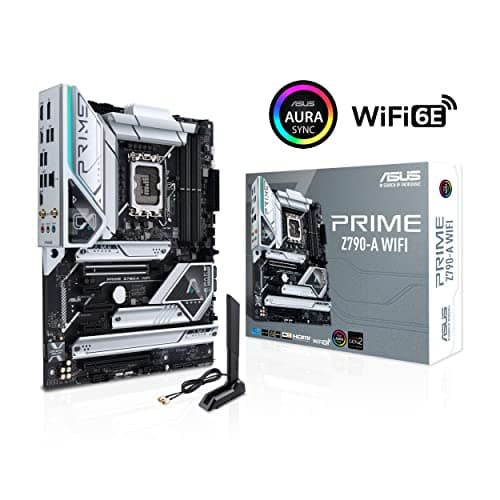

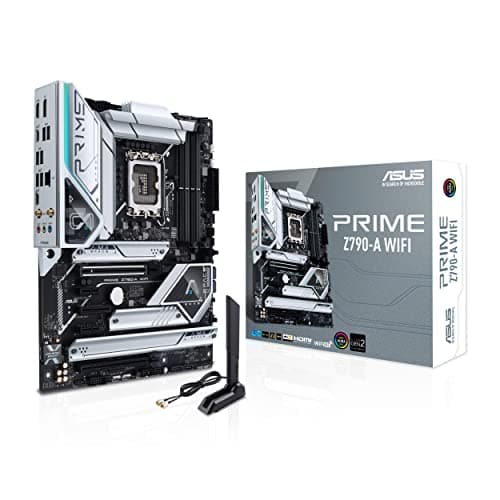

Asus PRIME-A WIFI LGA1700 DDR5 ATX image

Asus PRIME-A WIFI LGA1700 DDR5 ATX main image

Product Information

Manufacturer

ASUS

Series

Z790

Variant

Z790 PRIME-A WIFI

Release Year

Unknown

Manufacturer Color

Unknown

UPC

195553939324

EAN

0195553939324

Part Numbers

PRIME Z790-A WIFI 90MB1CS0-M0EAY0 90MB1CS0-M1EAY0 PRIMEZ790-AWIFI

BuildCores ID

prors8qi5

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel Z790

Max Memory

192 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

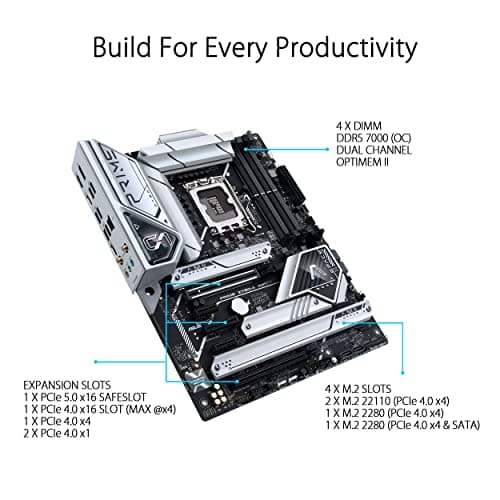

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 4.0 x4 2 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

Yes

BIOS Flashback

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

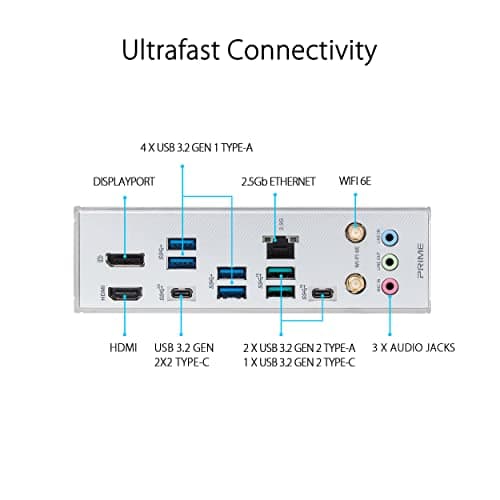

Back Panel Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A 1 x Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 3 x Audio jacks

See an issue?Report an issue on OpenDB

Motherboard

Asus PRIME-A WIFI LGA1700 DDR5 ATX

Name: Asus PRIME-A WIFI LGA1700 DDR5 ATX
Brand: ASUS
SKU: prors8qi5

Best Price

$419.99

via

	—	$419.99
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$419.99 via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$419.99 via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links
