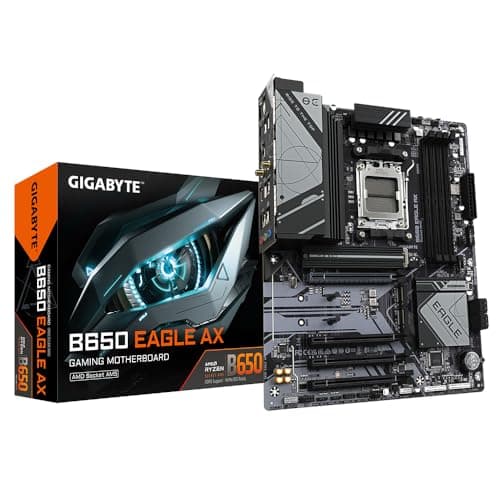

Gigabyte B650 EAGLE AX AM5 DDR5 ATX image

Gigabyte B650 EAGLE AX AM5 DDR5 ATX main image

Product Information

Manufacturer

Gigabyte

Series

B650

Variant

B650 EAGLE AX

Release Year

2022

Manufacturer Color

Unknown

UPC

889523041703

EAN

4719331860158

Part Numbers

B650 EAGLE AX B650 EAGLE AX 1.0 B650-EAGLE-AX

BuildCores ID

si4j384s1

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B650

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

None

PCIe Slots

4 x PCIe 4.0 x16

M.2 Slots

M 25110/22110/2580/2280 PCIe 5.0 x4 M 22110/2280 PCIe 4.0 x2 M 22110/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 1 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

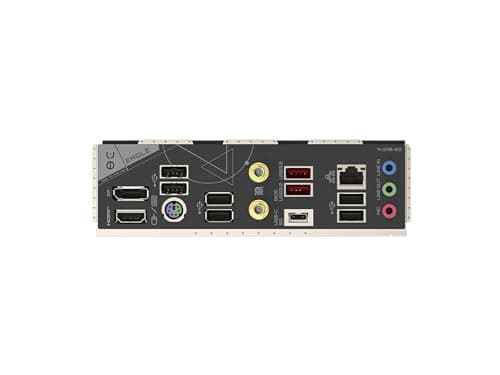

Back Panel Ports

1 x DisplayPort (up to 3840x2160 @ 144 Hz) 1 x HDMI port (up to 4096x2160 @ 60 Hz) 2 x USB 3.2 Gen 2 Type-A ports (Red 10Gbps) 1 x USB Type-C® port (with USB 3.2 Gen 1 support 5Gbps) 6 x USB 2.0/1.1 ports 1 x RJ-45 port (1 Gbps LAN) 2 x SMA antenna connectors (for Wi-Fi 6E) 3 x Audio jacks (Line In Line Out Mic In) 1 x PS/2 keyboard/mouse port

See an issue?Report an issue on OpenDB

Motherboard

Gigabyte B650 EAGLE AX AM5 DDR5 ATX

Name: Gigabyte B650 EAGLE AX AM5 DDR5 ATX
Brand: Gigabyte
SKU: si4j384s1

Best Price

$139.99

via

	FREE s/h	$139.99
Loading... Loading
	FREE s/h	$139.99
Loading... Loading
	FREE s/h	$141.98
Loading... Loading
	FREE s/h	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$139.99 via Best Buy Loading... Loading
	FREE s/h	—	In stock	$139.99 via Newegg Loading... Loading
	FREE s/h	—	In stock	$141.98 via Walmart Loading... Loading
	FREE s/h	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$139.99 via Best Buy Loading... Loading
	FREE s/h	—	In stock	$139.99 via Newegg Loading... Loading
	FREE s/h	—	In stock	$141.98 via Walmart Loading... Loading
	FREE s/h	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links
