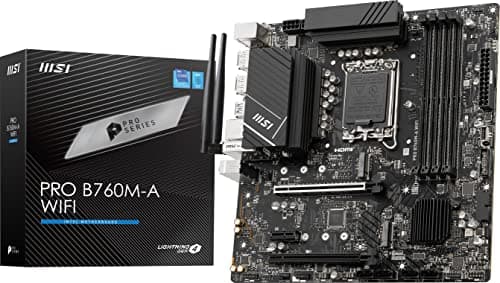

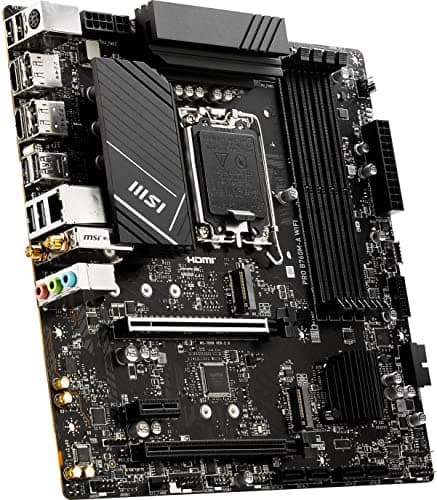

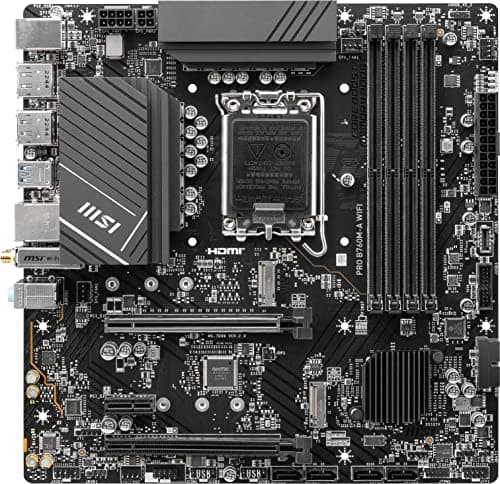

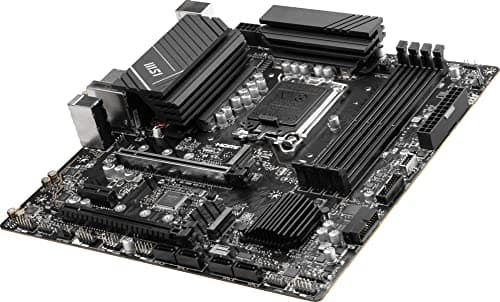

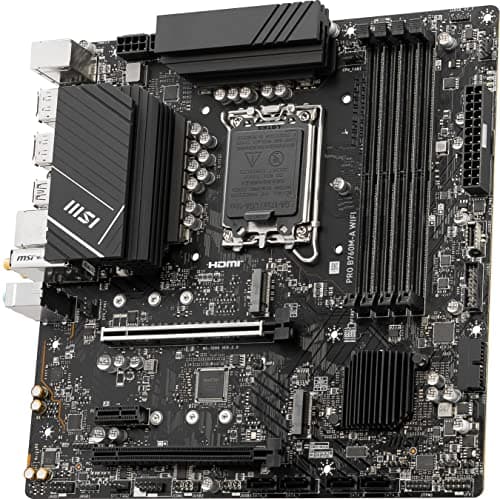

MSI PRO B760M-A WIFI DDR5 Micro ATX image

MSI PRO B760M-A WIFI DDR5 Micro ATX main image

Product Information

Manufacturer

MSI

Series

B760

Variant

PRO M-A WiFi

Release Year

Unknown

Manufacturer Color

Unknown

UPC

824142313176

EAN

0824142313176

Part Numbers

PRO B760M-A WIFI 7D99-007R 911-7D99-007 B760MAWIFI

BuildCores ID

up9jznv11

General Specifications

Socket

LGA 1700

Form Factor

Micro ATX

Chipset

Intel B760

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 2280/2260/2242 PCIe 4.0 x4 M 2280/2260/2242 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek RTL8125BG 2.5 Gb/s

WiFi

Wi-Fi 6E Bluetooth v5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek ALC897

Audio Channels

7.1

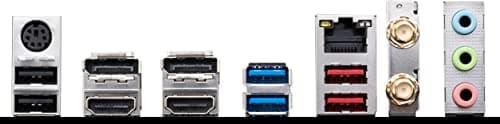

Back Panel Ports

1 x PS/2 Mouse/Keyboard combo port 2 x USB 2.0 Type-A ports 2 x DisplayPort 2 x HDMI 2.1 ports 2 x USB 3.2 Gen 1 5Gbps Type-A ports 1 x 2.5 Gbps LAN (RJ45) port 2 x USB 3.2 Gen 2 10Gbps Type-A ports 2 x Wi-Fi Antenna connectors 3 x Audio jacks

See an issue?Report an issue on OpenDB

Motherboard

MSI PRO B760M-A WIFI DDR5 Micro ATX

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.
