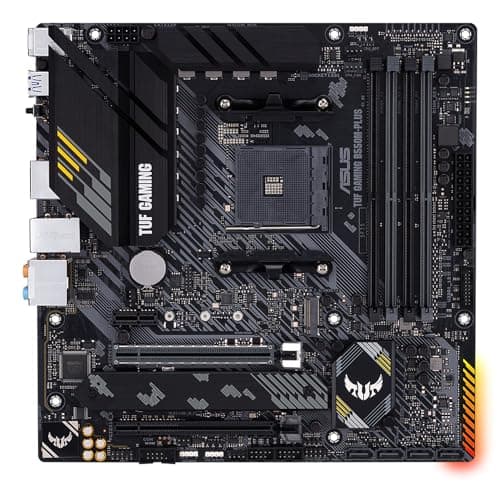

ASUS TUF Gaming B550M-PLUS AM4 Micro ATX Motherboard main image
ASUS TUF Gaming B550M-PLUS AM4 Micro ATX Motherboard image
ASUS TUF Gaming B550M-PLUS AM4 Micro ATX Motherboard image
ASUS TUF Gaming B550M-PLUS AM4 Micro ATX Motherboard image
ASUS TUF Gaming B550M-PLUS AM4 Micro ATX Motherboard image
ASUS TUF Gaming B550M-PLUS AM4 Micro ATX Motherboard image
ASUS TUF Gaming B550M-PLUS AM4 Micro ATX Motherboard image
ASUS TUF Gaming B550M-PLUS AM4 Micro ATX Motherboard image
Product Information
Manufacturer
ASUS
Series
B550
Variant
TUF GAMING M-PLUS
Release Year
2020
Manufacturer Color
Black
UPC
192876623541
EAN
4718017623544
Part Numbers
tuf-gaming-b550m-plus 90MB14A0-M0EAY0
BuildCores ID
5slkipqrf
General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD B550
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK RGB

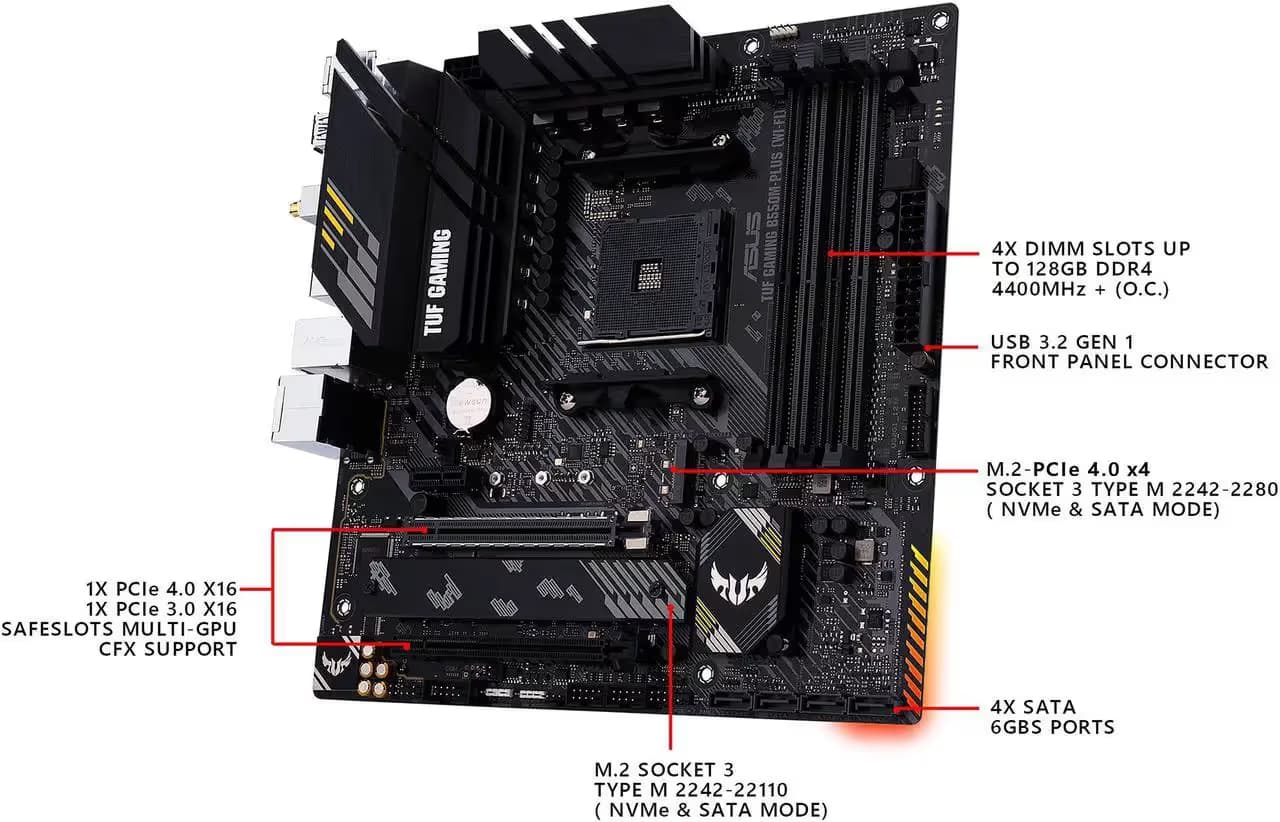

PCIe Slots
1 x PCIe 4.0 x16 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 3.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
1 x Realtek RTL8125B 2.5Gb Ethernet 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown

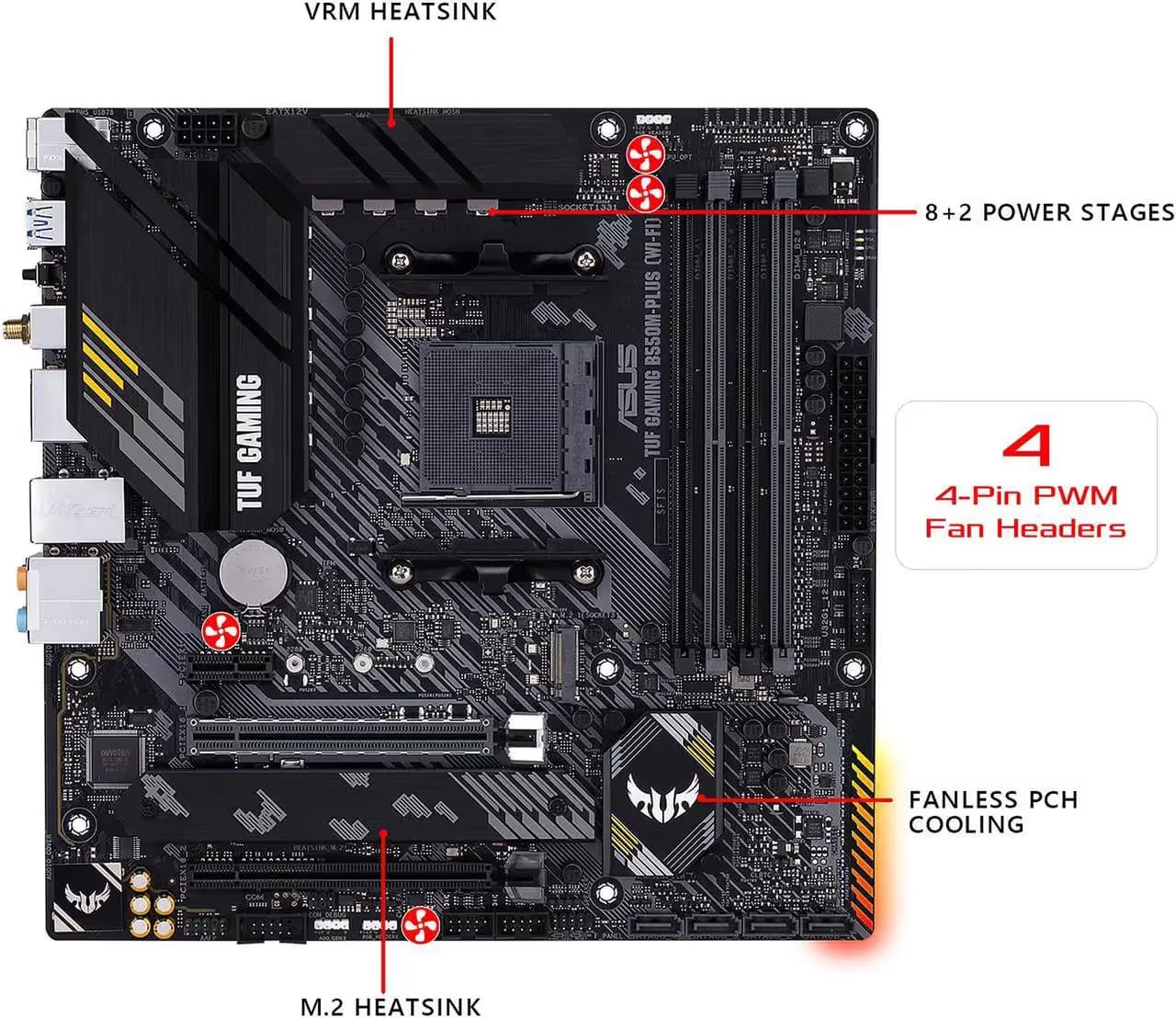

CPU Fan Headers
1
Case Fan Headers
2
Pump Headers
Unknown
CPU Optional Fan Headers
1

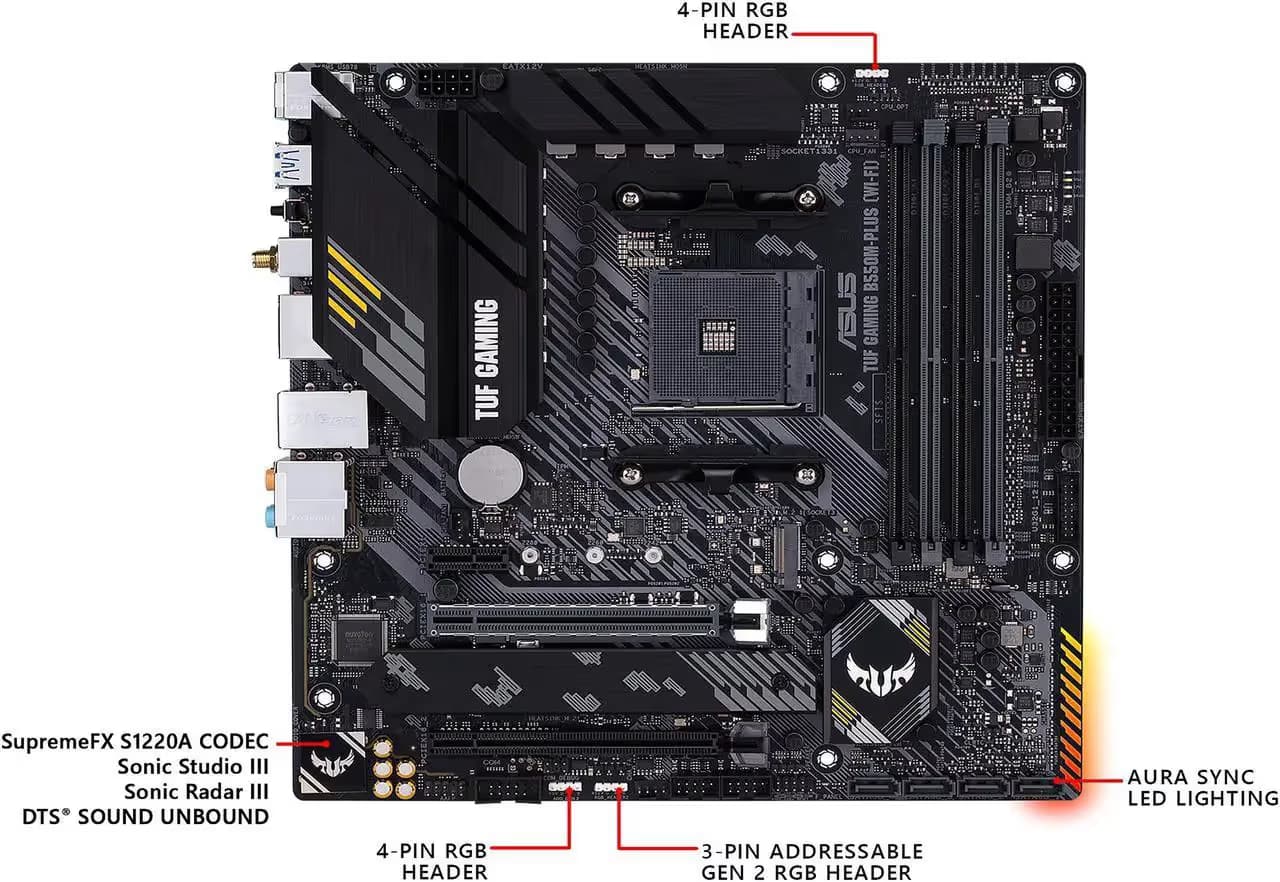

ARGB 5V Headers
1
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC S1200A
Audio Channels
7.1

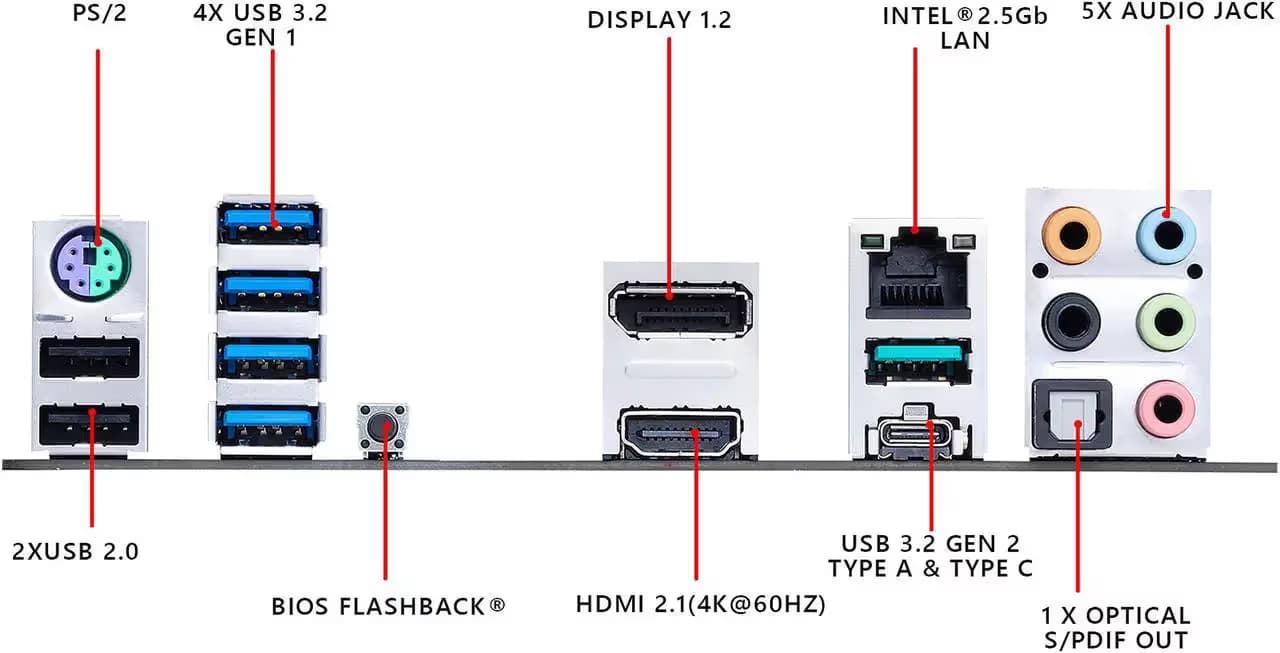

Back Panel Ports
1 x PS/2 Keyboard/Mouse combo port 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek RTL8125B 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button
Motherboard

3D

ASUS TUF Gaming B550M-PLUS AM4 Micro ATX Motherboard

Best Price

$176.49
