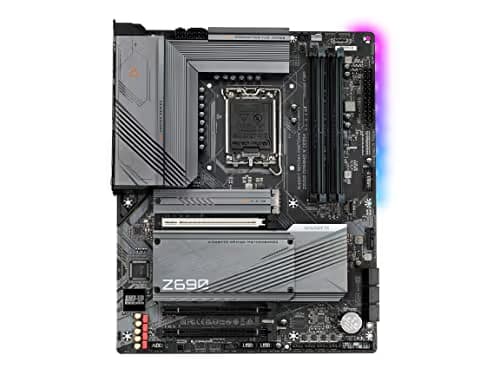

Gigabyte Z690 GAMING X DDR4 (rev. 1.0) image

Gigabyte Z690 GAMING X DDR4 (rev. 1.0) main image

Product Information

Manufacturer

Gigabyte

Series

Z690

Variant

Unknown

Release Year

Unknown

Manufacturer Color

Unknown

UPC

889523030080

EAN

0889523030080

Part Numbers

Z690 GAMING X DDR4

BuildCores ID

6a7y5fx1c

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel Z690

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 3.0 x4

M.2 Slots

M 2260/2280/22110 PCIe 4.0 x4/x2 M 2260/2280/22110 PCIe 4.0 x4/x2 M 2260/2280/22110 PCIe 4.0 x4/x2 M 2260/2280/22110 SATA / PCIe 4.0 x4/x2

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5GbE LAN chip 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC1220-VB

Audio Channels

7.1

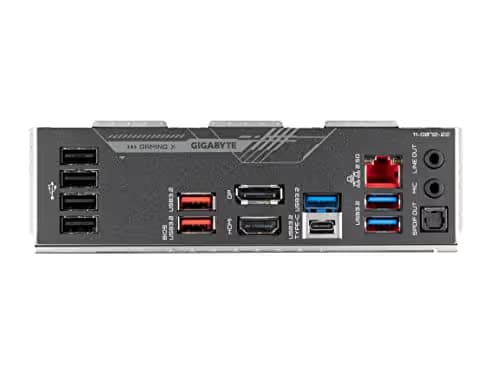

Back Panel Ports

1 x USB Type-C port with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

See an issue?Report an issue on OpenDB
