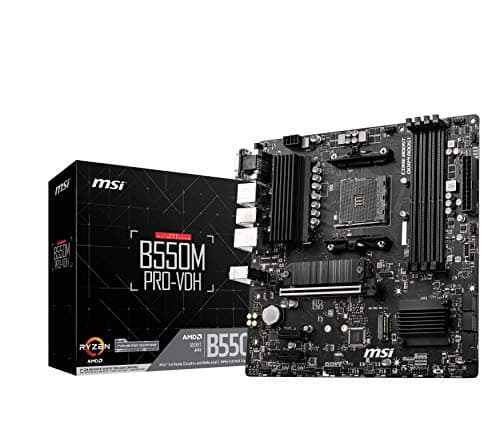

MSI B550M PRO-VDH DDR4 Micro ATX main image

Product Information

Manufacturer

MSI

Series

B550M

Variant

PRO-VDH

Release Year

Unknown

Manufacturer Color

Unknown

UPC

824142227213

EAN

4719072758417

Part Numbers

B550M PRO-VDH 7C95-017R 911-7C95-017

BuildCores ID

ewsfx8l3s

General Specifications

Socket

AM4

Form Factor

Micro ATX

Chipset

AMD B550

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 4.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 3.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 8111HN 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC897

Audio Channels

7.1

Back Panel Ports

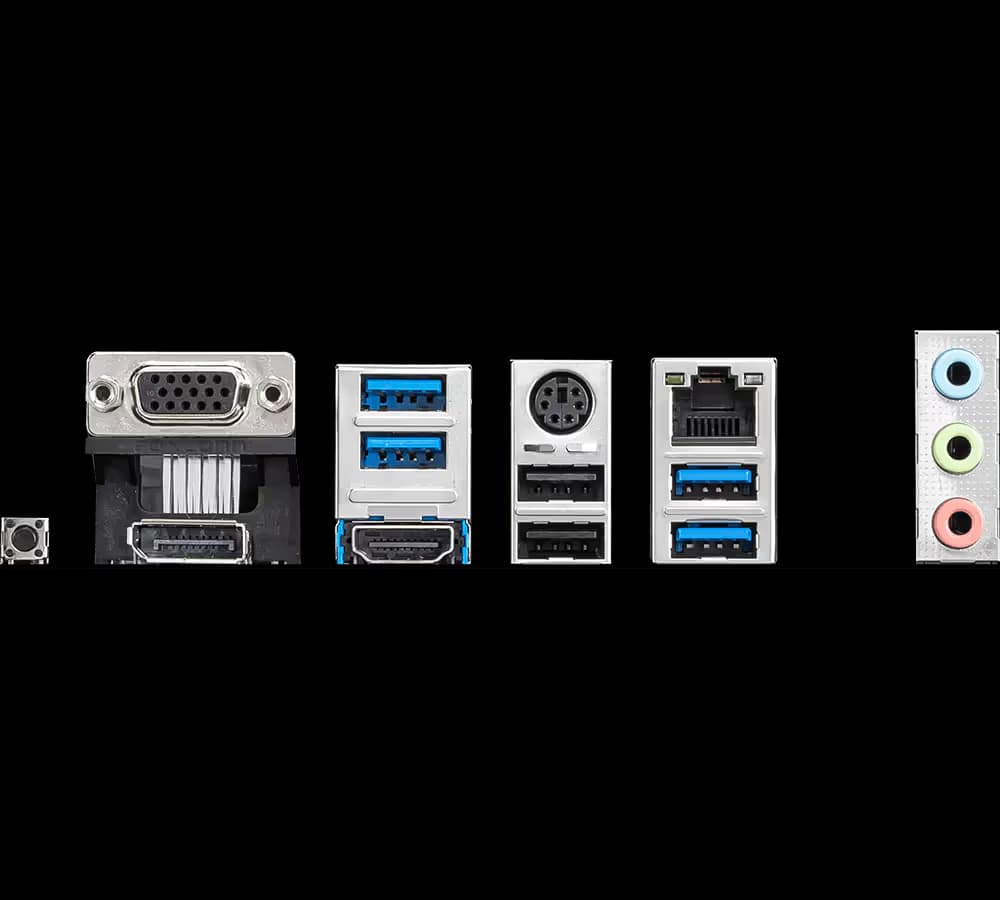

1 x PS/2 keyboard/mouse combo port 2 x USB 2.0 Type-A ports 1 x VGA port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 5Gbps Type-A ports 1 x LAN (RJ45) port 3 x Audio jacks 1 x Flash BIOS Button

See an issue?Report an issue on OpenDB
