Product Information

Manufacturer

MSI

Series

Z790

Variant

PRO Z790-A MAX WiFi

Release Year

2023

Manufacturer Color

Black

UPC

824142337301

EAN

None

Part Numbers

PRO Z790-A MAX WIFI

BuildCores ID

f5uk5p8mq

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel Z790

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

Unknown

U.2 Ports

Unknown

Onboard Ethernet

1 x Intel 2.5Gbps LAN controller 2.5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

Unknown

USB 4.0

Unknown

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC4080

Audio Channels

7.1

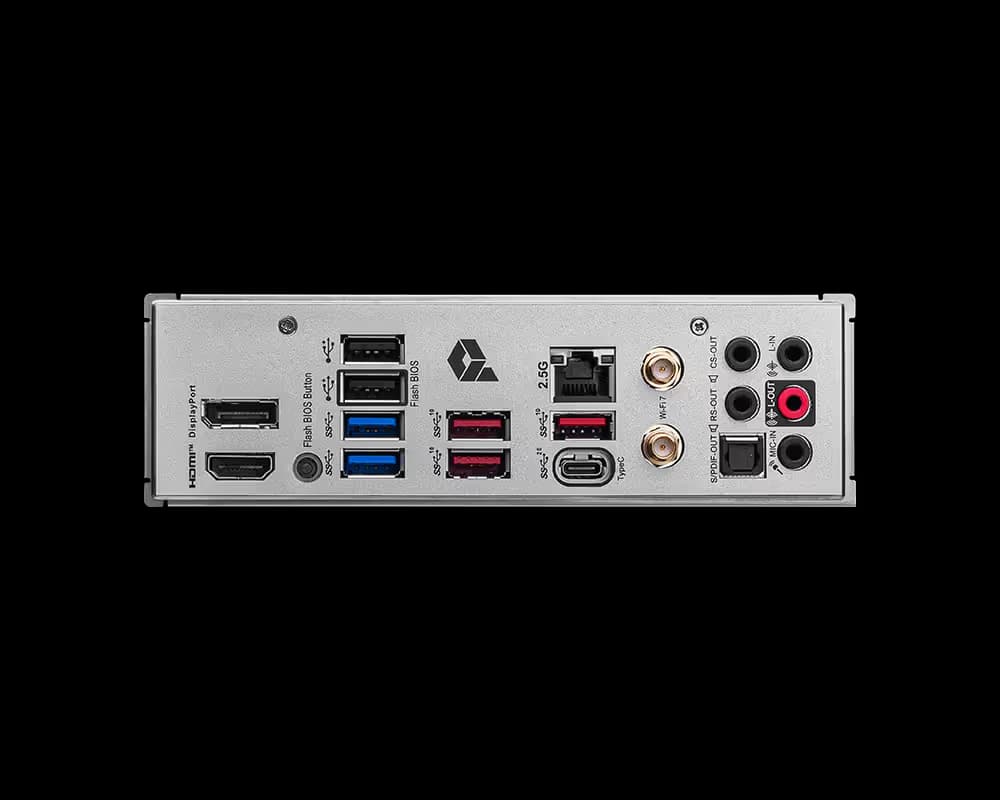

Back Panel Ports

1 x DisplayPort 1 x HDMI port 1 x Flash BIOS button 2 x USB 2.0 Type-A ports (From Hub GL850G) 2 x USB 3.2 Gen1 5Gbps Type-A ports (From Z790 chipset) 3 x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset) 1 x USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset) 1 x 2.5Gbps LAN (RJ45) port 2 x Wi-Fi antenna connectors 5 x Audio jacks 1 x Optical S/PDIF Out connector
