Product Information
Manufacturer
Gigabyte
Series
Ultra Durable
Variant
Z690M DS3H DDR4
Release Year
2021
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
Z690M-DS3H-DDR4-rev-10
BuildCores ID
g11bi34qz
General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z690
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK
GREY
PCIe Slots
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
M.2 Slots
M 2260/2280 PCIe 4.0 x4
M 2260/2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 2.5GbE LAN chip 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
1
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

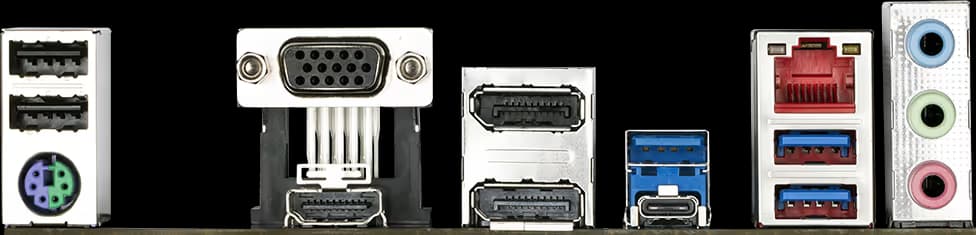

Back Panel Ports
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI 2.0 port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port
with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Motherboard

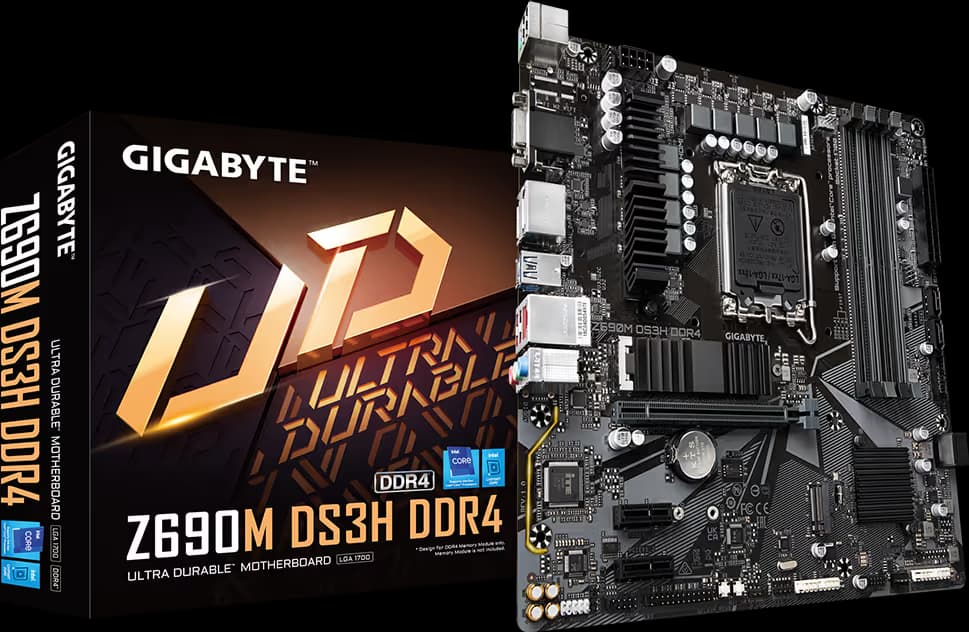

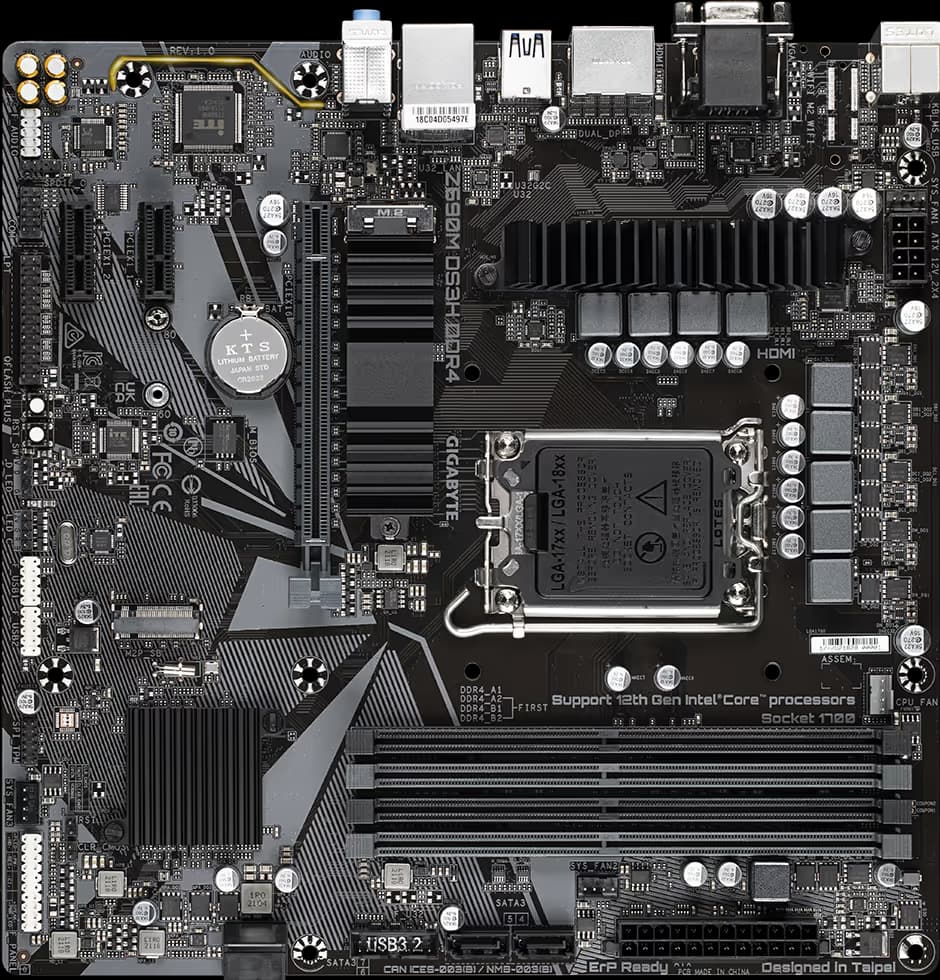

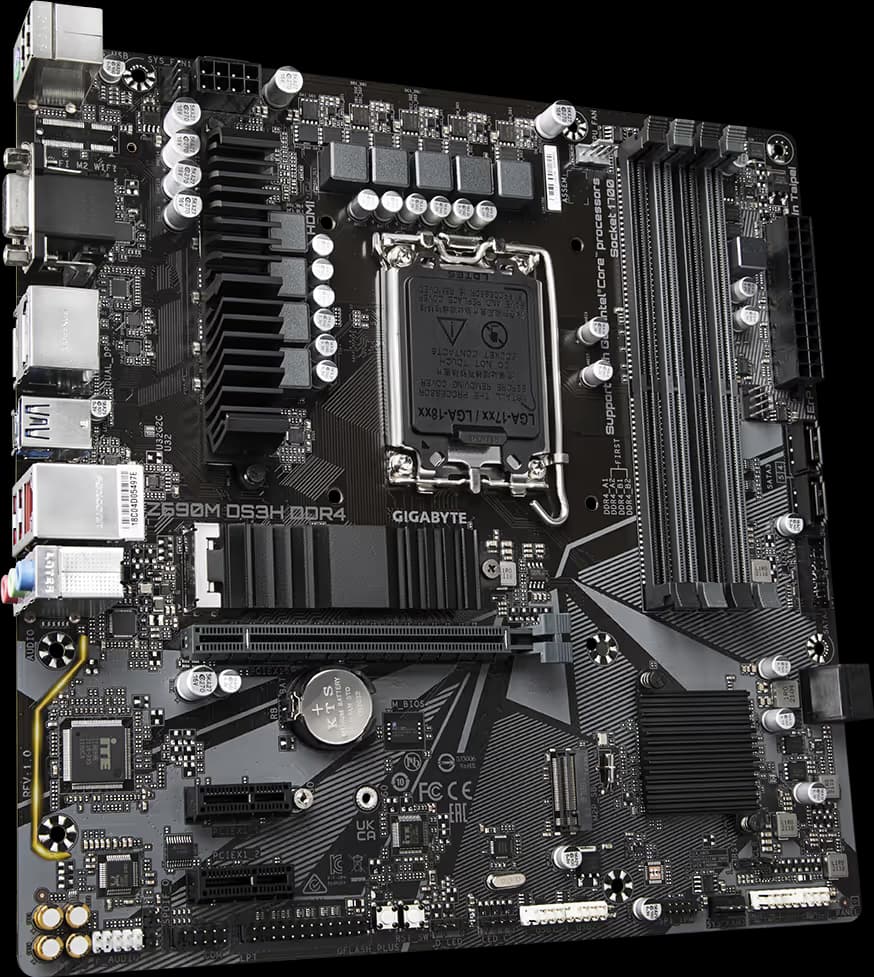

Gigabyte Z690M DS3H DDR4 (rev. 1.0)
Loading...
LoadingLoading...
LoadingNo retailers available yet
Price History
Loading price history...
* Amazon pricing is not included in price history graphs.
