Product Information

Manufacturer

MSI

Series

Z890

Variant

PRO S-WiFi

Release Year

Unknown

Manufacturer Color

Unknown

UPC

824142386569

EAN

0824142386569 4711377269995

Part Numbers

PRO Z890-S WIFI Z890SWIFI Z890-S WIFI 911-7E54-02S

BuildCores ID

l43wx1fku

General Specifications

Socket

LGA 1851

Form Factor

ATX

Chipset

Intel Z890

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

4 x PCIe 5.0 x16 1 x PCIe 3.0 x1 2 x PCIe 4.0 x4

M.2 Slots

M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 8125D 2.5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

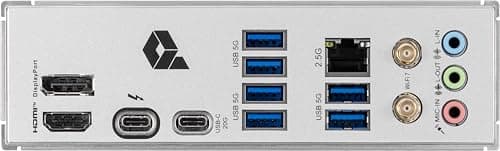

Back Panel Ports

1 x DisplayPort 1 x HDMI port 1 x Thunderbolt 4 USB-C port 1 x USB 20Gbps Type-C port 6 x USB 5Gbps Type-A ports 1 x 2.5G LAN (RJ45) port 2 x Wi-Fi antenna connectors 3 x Audio jacks

See an issue?Report an issue on OpenDB
