LoadingProduct Information
Manufacturer
ASUS
Series
B650
Variant
PRIME EM-A WIFI
Release Year
Unknown
Manufacturer Color
Unknown
UPC
None
EAN
None
Part Numbers
PRIME B650EM-A WIFI
BuildCores ID
lcr0zj3tl
General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B650
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
GREY
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x1
M.2 Slots
M 2280 PCIe 5.0 x4
M 2280 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4
SATA 6Gb/s
3
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 2.5 Gb/s
WiFi
Wifi 6 Bluetooth 5.4
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
4-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1
Back Panel Ports
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
2 x USB 10Gbps ports (Type-A)
2 x USB 5Gbps ports (Type-A)
4 x USB 2.0 ports (Type-A)
1 x Wi-Fi Module
3 x Audio jacks
1 x BIOS FlashBack button
Motherboard
3D

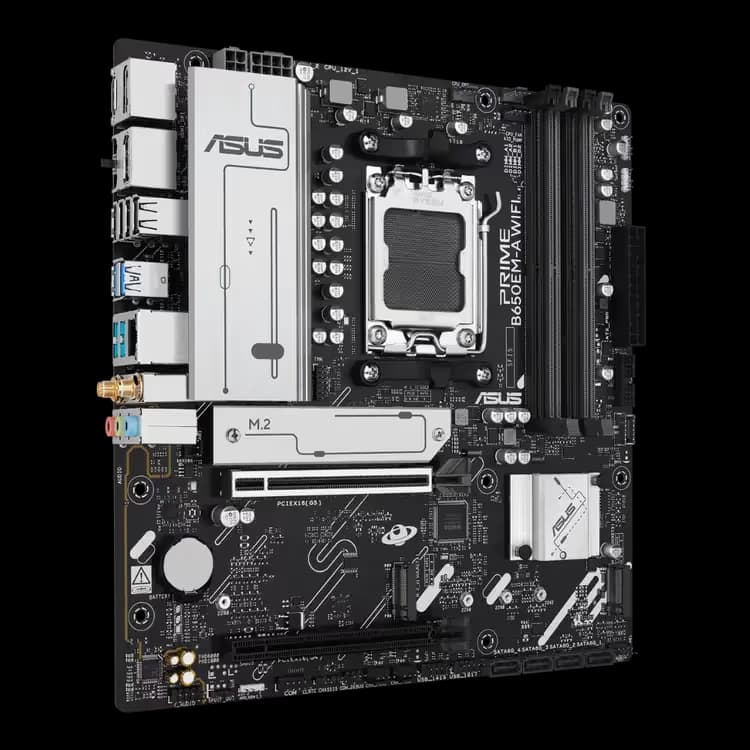

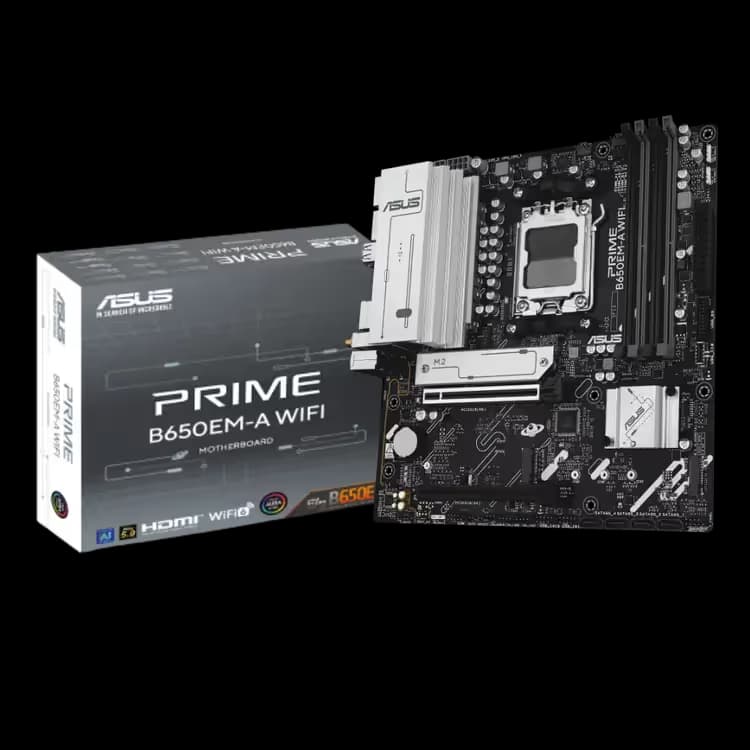

Asus PRIME B650EM-A WIFI AM5 DDR5 Micro ATX
