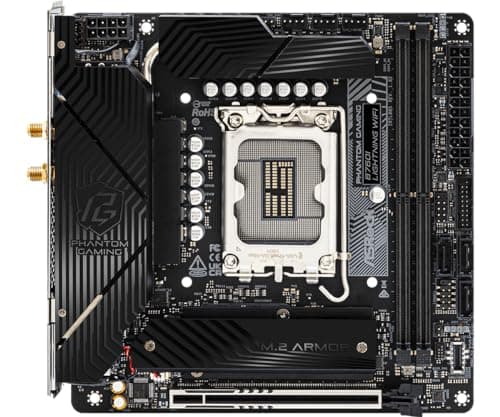

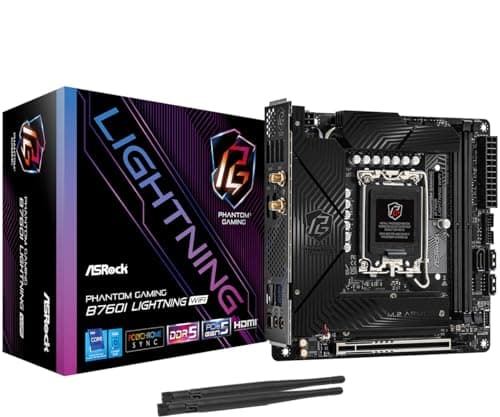

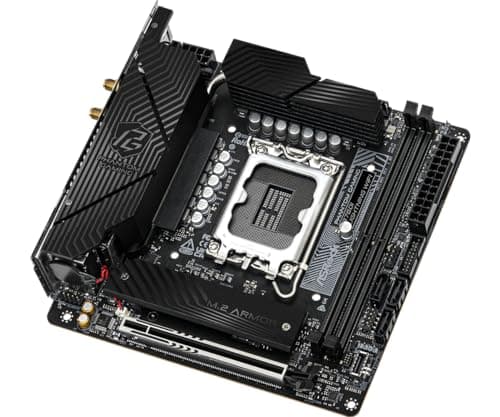

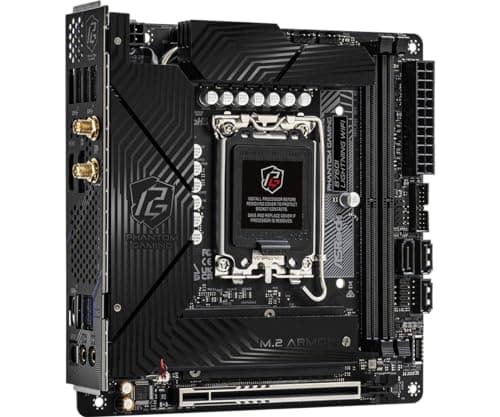

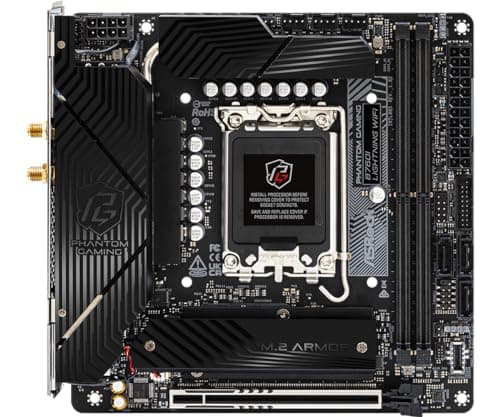

ASRock B760I Lightning WiFi LGA1700 DDR5 Mini ITX image

ASRock B760I Lightning WiFi LGA1700 DDR5 Mini ITX main image

Product Information

Manufacturer

ASRock

Series

B760I

Variant

Lightning WiFi

Release Year

Unknown

Manufacturer Color

Unknown

UPC

None

EAN

4710483946677

Part Numbers

B760I Lightning WiFi 90-MXBNN0-A0UAYZ B760ILIGHTNINGWIFI

BuildCores ID

mwwunbup8

General Specifications

Socket

LGA 1700

Form Factor

Mini-ITX

Chipset

Intel B760

Max Memory

128 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK

PCIe Slots

1 x PCIe 5.0 x16

M.2 Slots

M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek Dragon RTL8125BG 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Unknown

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek ALC 897

Audio Channels

7.1

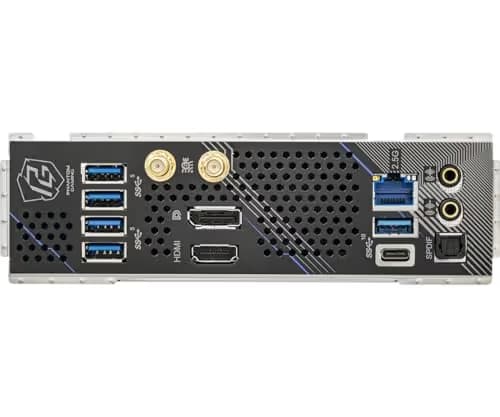

Back Panel Ports

2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 4 x USB 3.2 Gen1 Ports 1 x RJ-45 LAN Port (2.5G Dragon RTL8125BG) 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack)

See an issue?Report an issue on OpenDB
