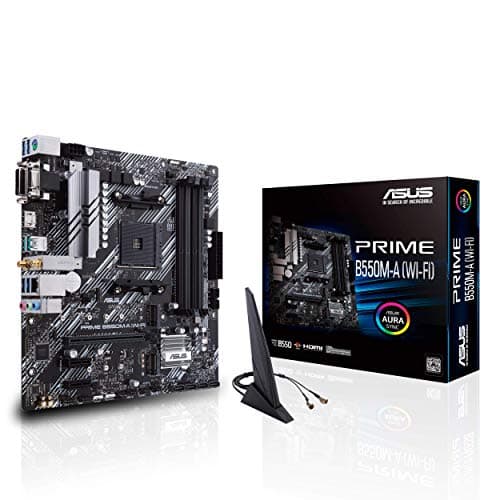

ASUS PRIME B550M-A main image
ASUS PRIME B550M-A image
ASUS PRIME B550M-A image
ASUS PRIME B550M-A image
ASUS PRIME B550M-A image
ASUS PRIME B550M-A image
ASUS PRIME B550M-A image
ASUS PRIME B550M-A image
Product Information
Manufacturer
ASUS
Series
PRIME B550
Variant
M-A
Release Year
2022
Manufacturer Color
Unknown
UPC
192876751817
EAN
0192876751817
Part Numbers
PRIME B550M-A (WI-FI) 90MB14I0-M0EAY0
BuildCores ID
pmo95tfhm
General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD B550
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
1 x PCIe 4.0 x16 1 x PCIe 3.0 x16 2 x PCIe 3.0 x1
M.2 Slots
M 2242 PCIE 3.0 x4 and SATA modes M 2280 PCIE 4.0 x4 and SATA modes M 2260 PCIE 4.0 x4 and SATA modes M 22110 PCIE 4.0 x4 and SATA modes
SATA 6Gb/s
4
Onboard Ethernet
RealtekRTL8111H 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
4
USB 3.2 Gen 2
2
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC887/897
Audio Channels
7.1

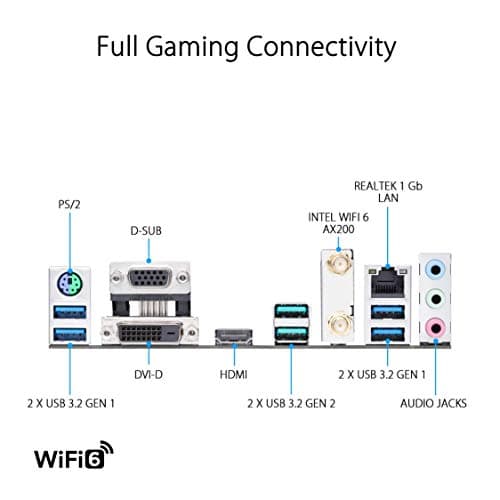

Back Panel Ports
1xPS/2keyboard/mousecomboports 1xDVI-D 1xD-Sub 1xHDMI 1xLAN(RJ45)ports 2xUSB3.2Gen2(tealblue)(2xType-A) 4xUSB3.2Gen1(blue)Type-A 3xAudiojack(s)
Motherboard

ASUS PRIME B550M-A

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

AMD AM4 Socket and PCIe 4. 0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs.Bluetooth v5.1

Ultrafast Connectivity: 1x PCIe 4. 0 x16 SafeSlot, WiFi 6 (802. 11ax), 1Gb LAN, dual M. 2 slots (NVMe SSD)—one with PCIe 4. 0 x4 connectivity, USB 3. 2 Gen 2 Type A , HDMI 2. 1 (4K@60HZ), D Sub & DVI

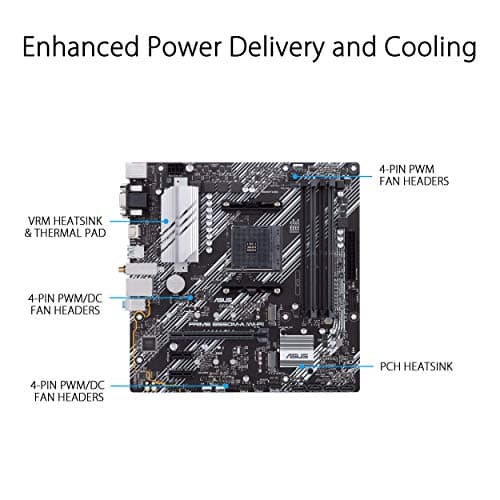

Comprehensive Cooling: VRM heatsink, chipset heatsink, hybrid fan headers and Fan Xpert 2 utility

5X Protection III: all round protection with LANGuard, DRAM overcurrent protection, overvoltage protection, SafeSlot Core safeguards and stainless steel back I/O

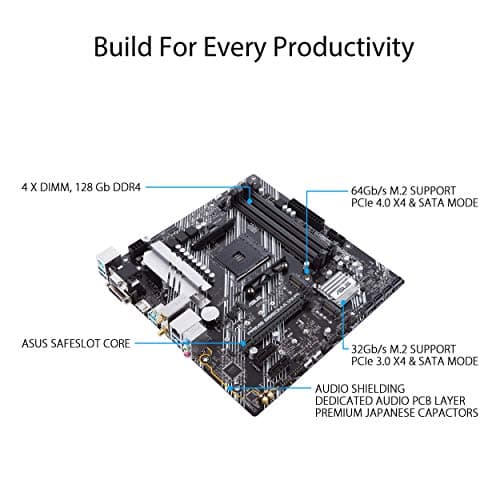

Boosted Memory Performance: ASUS OptiMem proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance.

Additional Features

AMD AM4 Socket and PCIe 4. 0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs.Bluetooth v5.1

Ultrafast Connectivity: 1x PCIe 4. 0 x16 SafeSlot, WiFi 6 (802. 11ax), 1Gb LAN, dual M. 2 slots (NVMe SSD)—one with PCIe 4. 0 x4 connectivity, USB 3. 2 Gen 2 Type A , HDMI 2. 1 (4K@60HZ), D Sub & DVI

Comprehensive Cooling: VRM heatsink, chipset heatsink, hybrid fan headers and Fan Xpert 2 utility

5X Protection III: all round protection with LANGuard, DRAM overcurrent protection, overvoltage protection, SafeSlot Core safeguards and stainless steel back I/O

Boosted Memory Performance: ASUS OptiMem proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance.

Product Information
Manufacturer
ASUS
Series
PRIME B550
Variant
M-A
Release Year
2022
Manufacturer Color
Unknown
UPC
192876751817
EAN
0192876751817
Part Numbers
PRIME B550M-A (WI-FI) 90MB14I0-M0EAY0
BuildCores ID
pmo95tfhm
General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD B550
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
1 x PCIe 4.0 x16 1 x PCIe 3.0 x16 2 x PCIe 3.0 x1
M.2 Slots
M 2242 PCIE 3.0 x4 and SATA modes M 2280 PCIE 4.0 x4 and SATA modes M 2260 PCIE 4.0 x4 and SATA modes M 22110 PCIE 4.0 x4 and SATA modes
SATA 6Gb/s
4
Onboard Ethernet
RealtekRTL8111H 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
4
USB 3.2 Gen 2
2
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC887/897
Audio Channels
7.1
Back Panel Ports
1xPS/2keyboard/mousecomboports 1xDVI-D 1xD-Sub 1xHDMI 1xLAN(RJ45)ports 2xUSB3.2Gen2(tealblue)(2xType-A) 4xUSB3.2Gen1(blue)Type-A 3xAudiojack(s)
