LoadingProduct Information
Manufacturer
MSI
Series
B550M
Variant
PRO-VDH WIFI (CEC)
Release Year
2021
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
B550M PRO-VDH WIFI (CEC)
BuildCores ID
s176iob8y
General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD B550
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK
PCIe Slots
4 x PCIe 4.0 x16
3 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4
SATA 6Gb/s
8
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek RTL8111HN 1 Gb/s
WiFi
Wi-Fi 6E Bluetooth 5.2
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
1
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1

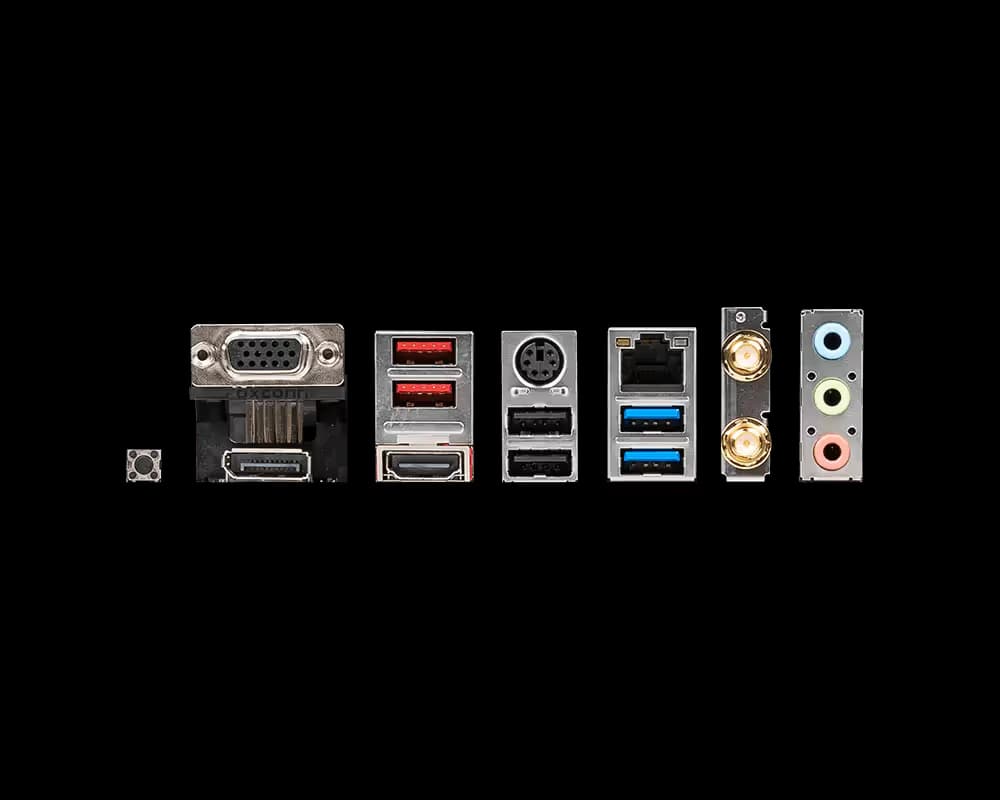

Back Panel Ports
1 x Flash BIOS Button
1 x PS/2 keyboard/mouse combo port
1 x VGA port
1 x Display port
1 x HDMI port
2 x USB 3.2 Gen 2 10Gbps Type-A ports
2 x USB 3.2 Gen 1 5Gbps Type-A ports
2 x USB 2.0 Type-A ports
1 x LAN (RJ45) port
2 x Wi-Fi Antenna connectors
3 x Audio jacks
Motherboard
3D

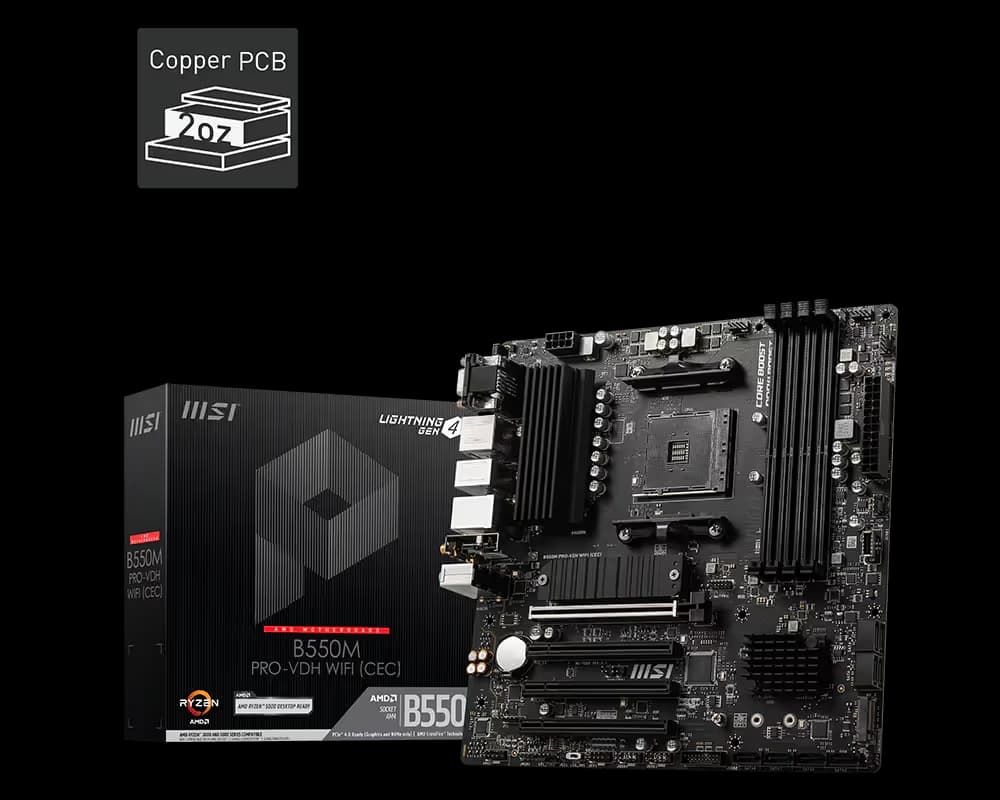

MSI B550M PRO-VDH WIFI (CEC) DDR4 Micro ATX
