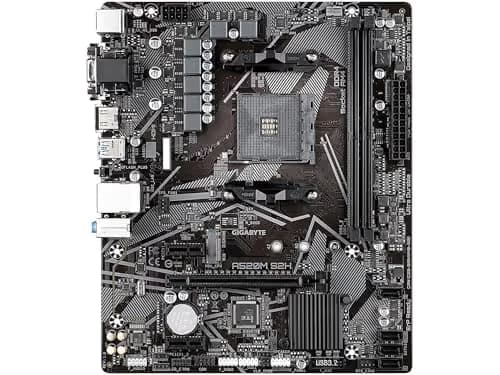

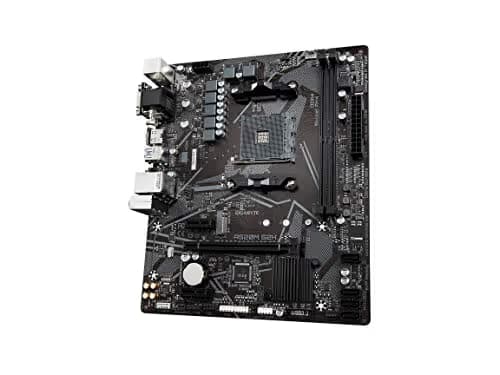

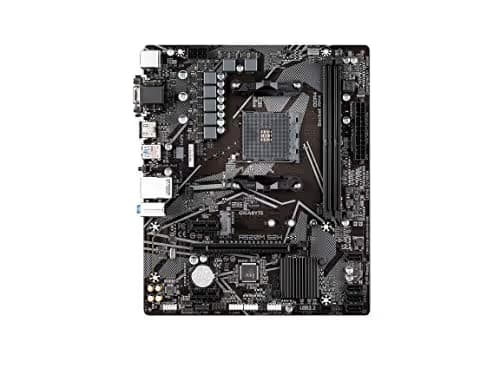

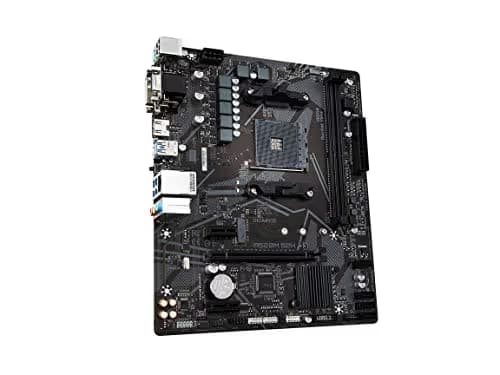

Gigabyte A520M S2H AM4 DDR4 Micro ATX image

Gigabyte A520M S2H AM4 DDR4 Micro ATX main image

Product Information

Manufacturer

Gigabyte

Series

A520

Variant

A520M S2H

Release Year

2023

Manufacturer Color

Black

UPC

889523023594

EAN

0889523023594 4719331809720

Part Numbers

A520M S2H GA-A520M-S2H

BuildCores ID

sq7esfp6d

General Specifications

Socket

AM4

Form Factor

Micro ATX

Chipset

AMD A520

Max Memory

64 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK

PCIe Slots

1 x PCIe 3.0 x16 2 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 3.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek GbE LAN chip 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

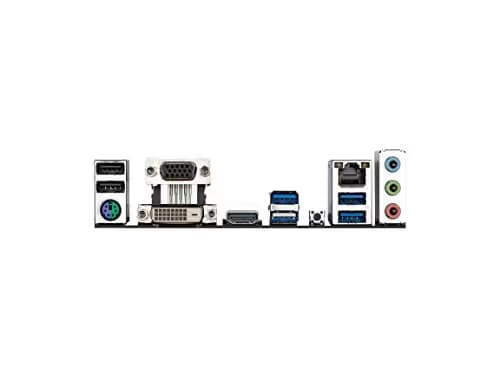

Back Panel Ports

1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x Q-Flash Plus button 3 x audio jacks

See an issue?Report an issue on OpenDB

Motherboard

Gigabyte A520M S2H AM4 DDR4 Micro ATX

Name: Gigabyte A520M S2H AM4 DDR4 Micro ATX
Brand: Gigabyte
SKU: sq7esfp6d

Best Price

$78.99

via

	—	$78.99
Loading... Loading
	FREE s/h	$78.99
Loading... Loading
	FREE s/h	$78.99
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$78.99 via Amazon Loading... Loading
	FREE s/h	—	In stock	$78.99 via Walmart Loading... Loading
	FREE s/h	—	In stock	$78.99 via Newegg Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$78.99 via Amazon Loading... Loading
	FREE s/h	—	In stock	$78.99 via Walmart Loading... Loading
	FREE s/h	—	In stock	$78.99 via Newegg Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links
