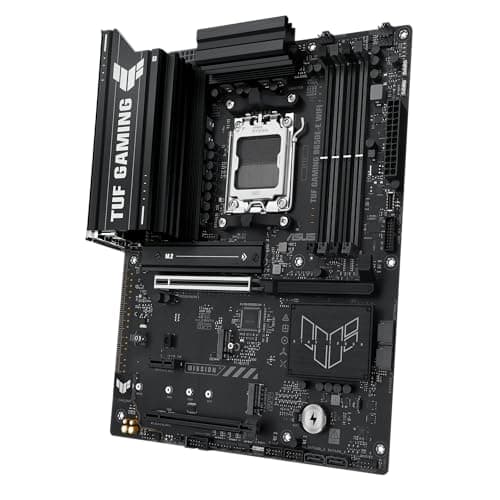

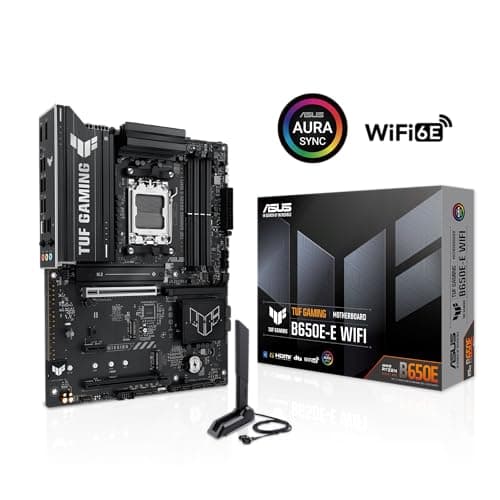

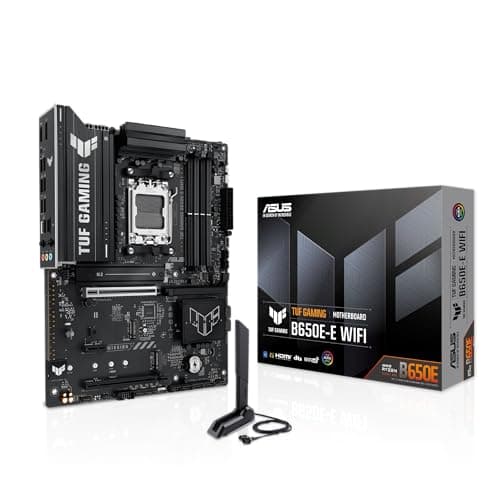

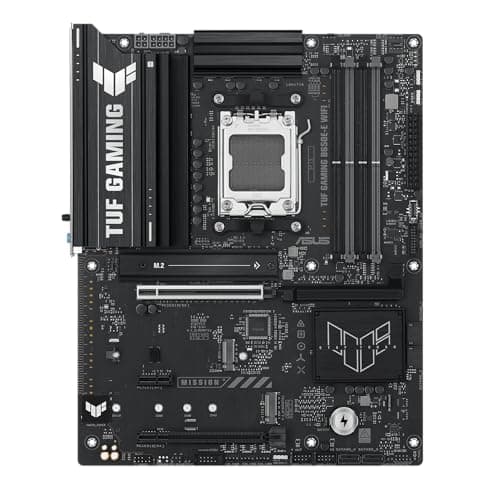

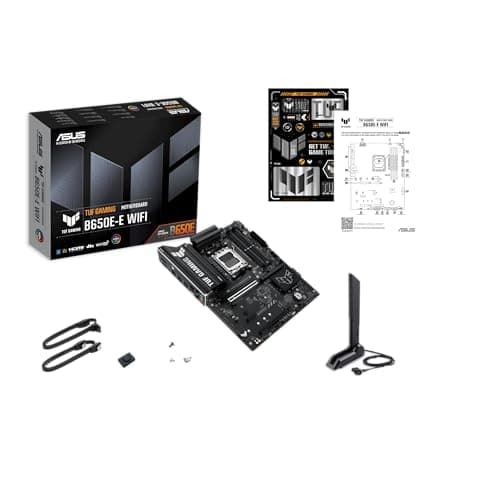

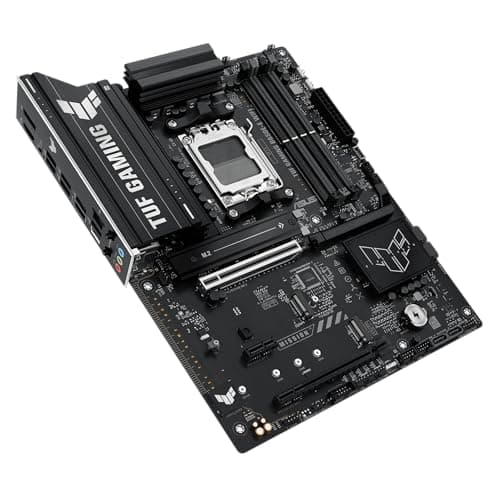

ASUS TUF GAMING B650E-E WIFI DDR5 ATX image

ASUS TUF GAMING B650E-E WIFI DDR5 ATX main image

Product Information

Manufacturer

ASUS

Series

B650E

Variant

WiFi

Release Year

Unknown

Manufacturer Color

Unknown

UPC

197105992498

EAN

0197105992498

Part Numbers

TUF GAMING B650E-E WIFI

BuildCores ID

uyxam5w8a

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B650

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x1 1 x PCIe 4.0 x16

M.2 Slots

M 2280 PCIe 5.0 x4 M 2280 PCIe 4.0 x4 M 2242/2260/2280/22110 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

Unknown

CPU Power

8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

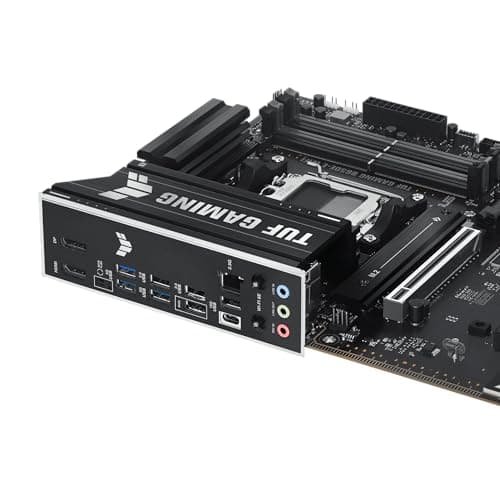

Back Panel Ports

1 x 2.5 Gb/s Ports (Realtek) 1 x Clear CMOS button 1 x HDMI 2.1 port 1 x VGA port 4 x USB 5Gbps Type-A ports 1 x LAN (RJ45) port (2.5Gbps) 1 x Flash BIOS button 2 x USB 2.0 Type-A ports 3 x Audio jacks

See an issue?Report an issue on OpenDB

Motherboard

ASUS TUF GAMING B650E-E WIFI DDR5 ATX

Name: ASUS TUF GAMING B650E-E WIFI DDR5 ATX
Brand: ASUS
SKU: uyxam5w8a

Best Price

$169.99

via

	FREE s/h	$169.99
Loading... Loading
	—	$199.00
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$169.99 via Walmart Loading... Loading
	—	—	In stock	$199.00 via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$169.99 via Walmart Loading... Loading
	—	—	In stock	$199.00 via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links
