Product Information
Manufacturer
Gigabyte
Series
A520M
Variant
Ultra Durable H Rev(1.x)
Release Year
2021
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
A520M H (Rev 1.x)
BuildCores ID
uzjr69ahd
General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD A520
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
2
Colors
BLACK
GREY
PCIe Slots
1 x PCIe 3.0 x0
2 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 3.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek GbE 10 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
2
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

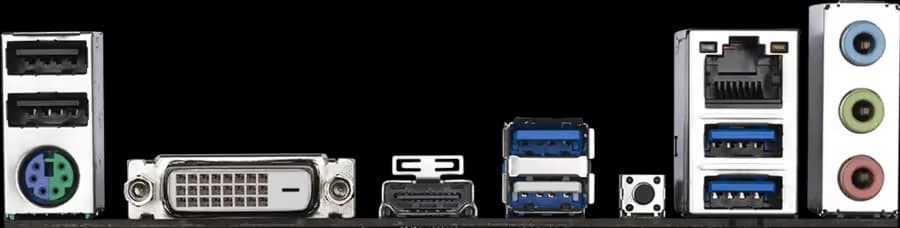

Back Panel Ports
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
3 x audio jacks
Motherboard

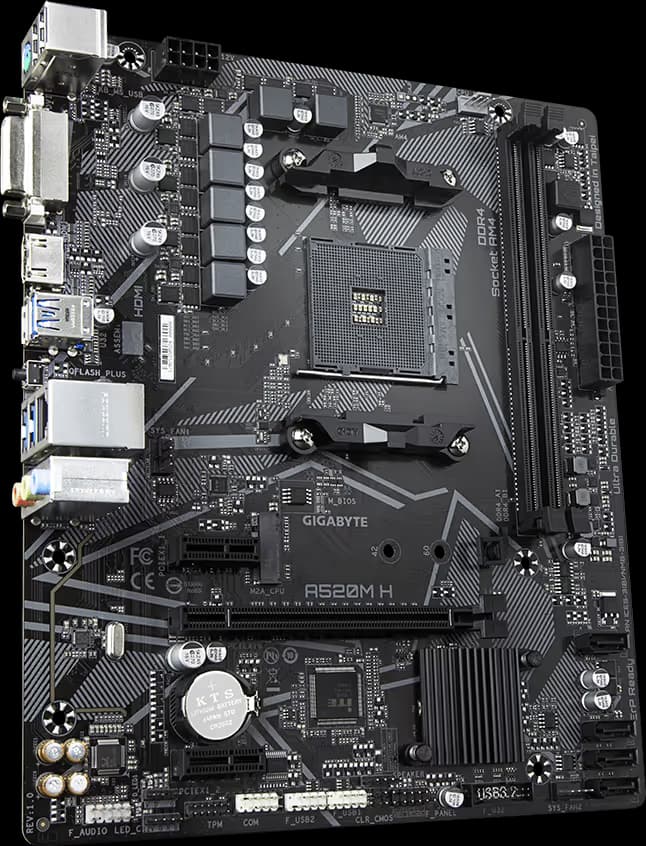

Gigabyte A520M H (Rev. 1.x)
