Product Information

Manufacturer

ASUS

Series

B850

Variant

PLUS WIFI7

Release Year

Unknown

Manufacturer Color

Unknown

UPC

None

EAN

4711636179027

Part Numbers

TUF GAMING B850M-PLUS WIFI7 90MB1MU0-M0EAY0

BuildCores ID

wn2z01bne

General Specifications

Socket

AM5

Form Factor

Micro ATX

Chipset

AMD B850

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x1

M.2 Slots

M 2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Unknown

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC1220

Audio Channels

7.1

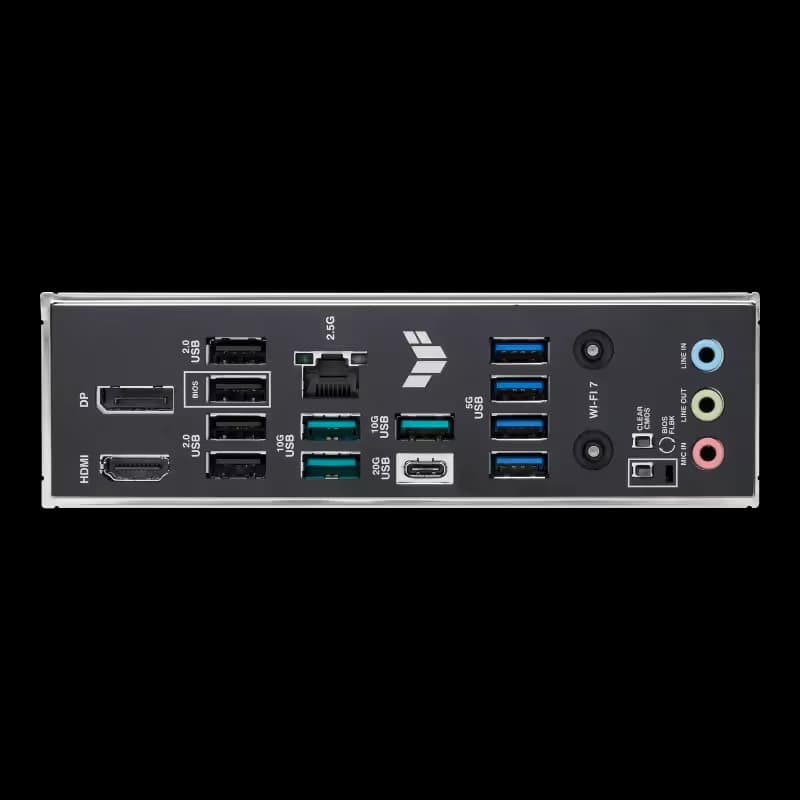

Back Panel Ports

1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button
