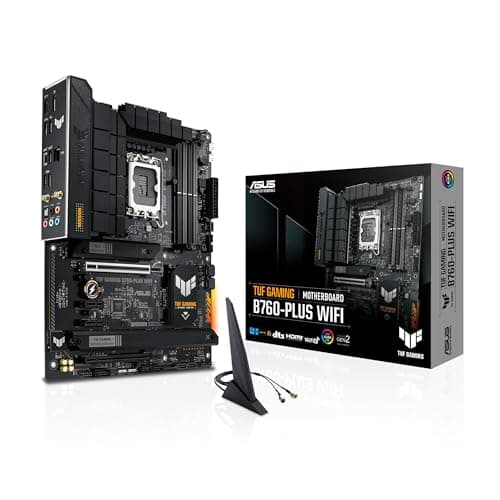

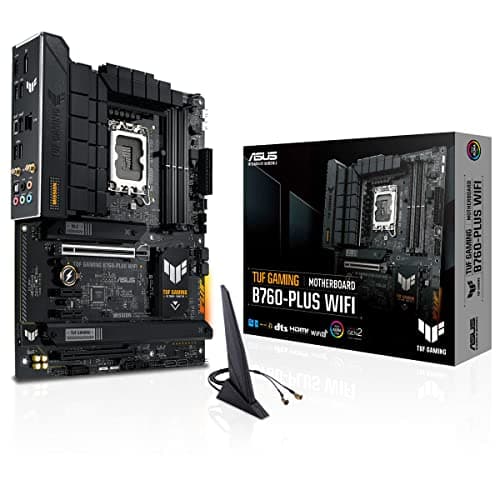

ASUS TUF GAMING B760-PLUS WIFI main image

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel B760

Max Memory

192 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK

Lighting

ARGB

PCIe Slots

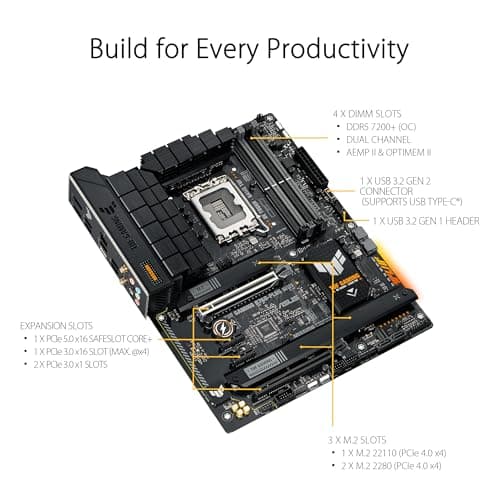

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wi-Fi 6

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

Back Panel Ports

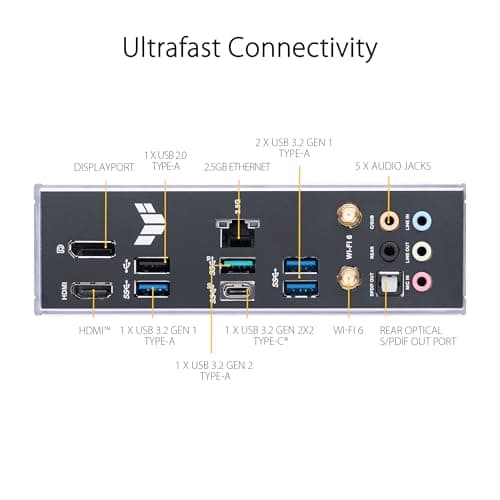

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

Product Information

Manufacturer

ASUS

Series

TUF GAMING

Variant

B760-PLUS WIFI

Release Year

2023

Manufacturer Color

Black

UPC

197105095113

EAN

4711387095119 0197105095113

Part Numbers

TUF GAMING B760-PLUS WIFI 90MB1ER0-M0AAY0 90MB1ER0-M0EAY0 90MB1ER0-M1EAY0

BuildCores ID

1iieujsh5
