Product Information
Manufacturer
ASUS
Series
TUF Gaming
Variant
Z790-PLUS WIFI D4
Release Year
2024
Manufacturer Color
Unknown
UPC
195553941082
EAN
0195553941082
Part Numbers
TUF GAMING Z790-PLUS WIFI D4 9B13-119-602
BuildCores ID
8ok3ldsyy
General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z790
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1
M.2 Slots
M 2242 PCIe 4.0 x4 M 2260 PCIe 4.0 x4 M 2280 PCIe 4.0 x4 M 22110 PCIe 4.0 x4 & SATA
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I225-V 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
1
USB 4.0
1
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek S1220A 7.1 Surround Sound
Audio Channels
7.1
Back Panel Ports

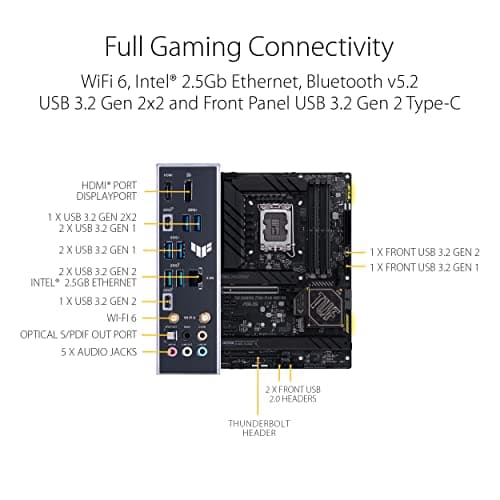

1 x USB 3.2 Gen 2x2 (Type-C) 3 x USB 3.2 Gen 2 (2x Type-A 1x Type-C) 4 x USB 3.2 Gen 1 (Type-A) 1 x DisplayPort 1 x HDMI 2.1 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF Out
Motherboard

ASUS TUF Gaming Z790-PLUS WIFI D4

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Intel LGA 1700 socket: Ready for 12thand13th Gen Intel Core processors, support PCIe 5.0 and out of box Windows 11 ready.Bluetooth : Bluetooth Version 5.2

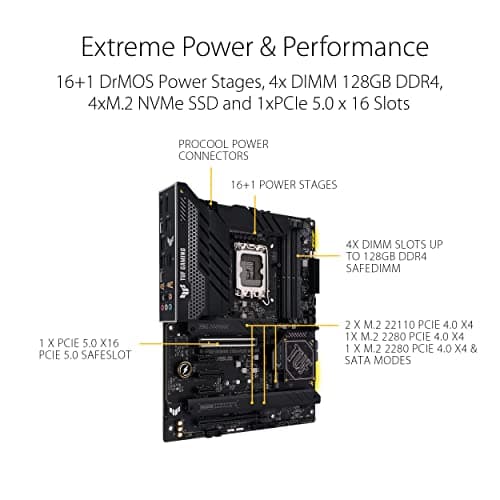

Enhanced Power Solution: 16plus1 DrMOS, ProCool sockets, military-grade TUF components, and Digiplus VRM for maximum durability and performance

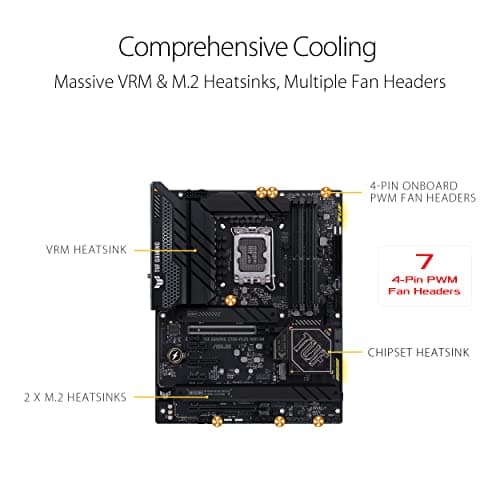

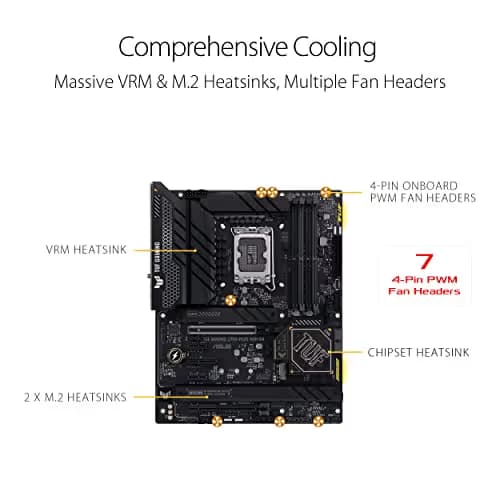

Comprehensive Cooling : VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility

Ultra Fast Gaming Networking : WiFi 6 AX201 (802.11 ax), Intel I225-V 2.5Gb LAN, TUF LANGuard and TurboLAN technology

Fastest Connectivity: 4x M.2/NVMe SSD, Front panel USB 3.2 Gen 2 Type-C header, USB Gen 2x2 Type-C and Thunderbolt 4 (USB4)header

Additional Features

Intel LGA 1700 socket: Ready for 12thand13th Gen Intel Core processors, support PCIe 5.0 and out of box Windows 11 ready.Bluetooth : Bluetooth Version 5.2

Enhanced Power Solution: 16plus1 DrMOS, ProCool sockets, military-grade TUF components, and Digiplus VRM for maximum durability and performance

Comprehensive Cooling : VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility

Ultra Fast Gaming Networking : WiFi 6 AX201 (802.11 ax), Intel I225-V 2.5Gb LAN, TUF LANGuard and TurboLAN technology

Fastest Connectivity: 4x M.2/NVMe SSD, Front panel USB 3.2 Gen 2 Type-C header, USB Gen 2x2 Type-C and Thunderbolt 4 (USB4)header
