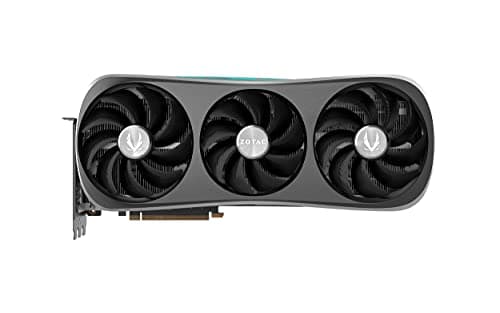

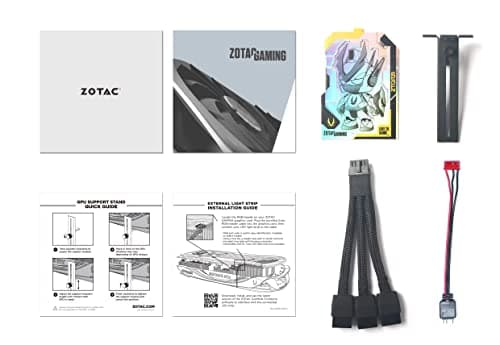

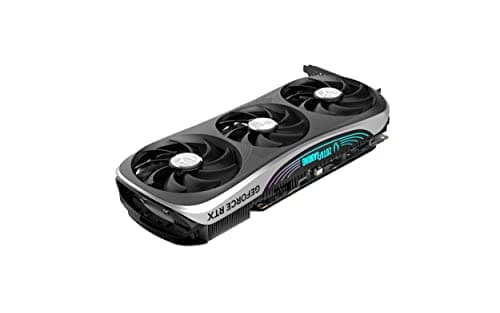

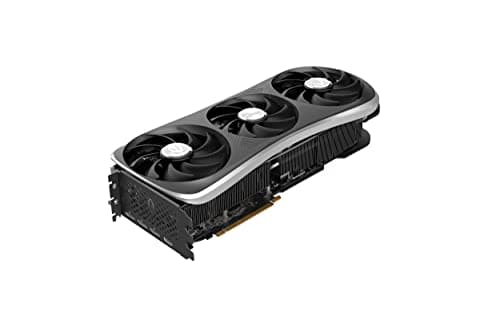

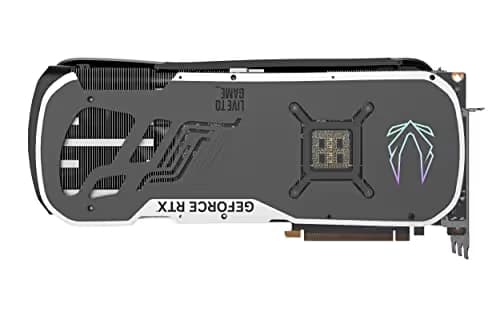

ZOTAC GAMING GeForce RTX 4090 Trinity image
ZOTAC GAMING GeForce RTX 4090 Trinity image
ZOTAC GAMING GeForce RTX 4090 Trinity image
ZOTAC GAMING GeForce RTX 4090 Trinity image
ZOTAC GAMING GeForce RTX 4090 Trinity image
ZOTAC GAMING GeForce RTX 4090 Trinity image
ZOTAC GAMING GeForce RTX 4090 Trinity image
ZOTAC GAMING GeForce RTX 4090 Trinity image

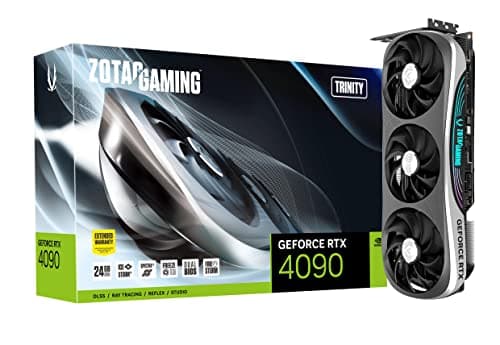

ZOTAC GAMING GeForce RTX 4090 Trinity main image
General Specifications
Chipset Manufacturer
NVIDIA
Chipset
GeForce RTX 4090
Core Count
16384
Core Base Clock
2520 MHz
Core Boost Clock
2520 MHz
Memory
24 GB
Memory Type
GDDR6X
Memory Clock
21000 MHz
Memory Bus
384 bit
TDP
450 W
Interface
PCIe 4.0 x16
Frame Sync
G-Sync
Colors
None
Length
356 mm
Case Slot Width
3.5
Total Slot Width
4
Cooling
3 Fans
Radiator Size
Unknown
Radiator Fan Size
Unknown
Radiator Fan Count
Unknown
Radiator Fan Configuration
Unknown
PCIe 12VHPWR
1
HDMI 2.1
1
DisplayPort 2.1
3
Lighting
Unknown
Product Information
Manufacturer
Zotac
Series
ZOTAC GAMING GeForce RTX 4090 Trinity
Variant
N/A
Release Year
2022
Manufacturer Color
Unknown
UPC
810012083232
EAN
0810012083232
Part Numbers
ZT-D40900D-10P
BuildCores ID
oj06bnkhs
GPU

ZOTAC GAMING GeForce RTX 4090 Trinity

Loading...
Loading
Loading...
Loading
No retailers available yet
Price History
Loading price history...
* Amazon pricing is not included in price history graphs.

Additional Features

NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency, 4th Generation Tensor Cores: Up to 2X AI performance, 3rd Generation RT Cores: Up to 2X ray tracing performance

Boost Clock 2520 MHz, 24GB GDDR6X, 384-bit, 21 Gbps, PCIE 4.0

IceStorm 3.0 Advanced Cooling, SPECTRA 2.0 ARGB Lighting, 2x 110mm 1x 100mm dual ball bearing fans, FREEZE Fan Stop, Active Fan Control, Metal Backplate

8K Ready, 4 Display Ready, HDCP 2.3, VR Ready

3 x DisplayPort 1.4a, 1 x HDMI 2.1a, DirectX 12 Ultimate, Vulkan RT API, Vulkan 1.3, OpenGL 4.6

Additional Features

NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency, 4th Generation Tensor Cores: Up to 2X AI performance, 3rd Generation RT Cores: Up to 2X ray tracing performance

Boost Clock 2520 MHz, 24GB GDDR6X, 384-bit, 21 Gbps, PCIE 4.0

IceStorm 3.0 Advanced Cooling, SPECTRA 2.0 ARGB Lighting, 2x 110mm 1x 100mm dual ball bearing fans, FREEZE Fan Stop, Active Fan Control, Metal Backplate

8K Ready, 4 Display Ready, HDCP 2.3, VR Ready

3 x DisplayPort 1.4a, 1 x HDMI 2.1a, DirectX 12 Ultimate, Vulkan RT API, Vulkan 1.3, OpenGL 4.6
