MSI MAG Z790 TOMAHAWK WIFI DDR5 ATX image

MSI MAG Z790 TOMAHAWK WIFI DDR5 ATX main image

Product Information

Manufacturer

MSI

Series

MAG

Variant

Z790 TOMAHAWK WIFI

Release Year

2022

Manufacturer Color

Black

UPC

824142305690

EAN

4711377025492

Part Numbers

MAG Z790 TOMAHAWK WIFI 7D91-009R 911-7D91-010 MAG Z790 TOMAHAWK Z790TOMWI

BuildCores ID

00aa4b8gb

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel Z790

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK

Lighting

Unknown

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 22110/2280/2260 PCIe 4.0 x4 M 2280/2260 PCIe 4.0 x4 M 2280/2260/2242 PCIe 4.0 x4 M 2280/2260/2242 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC4080

Audio Channels

7.1

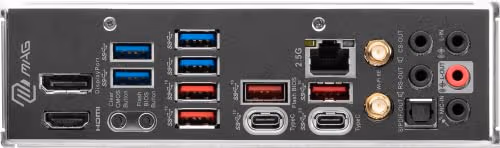

Back Panel Ports

1 x DisplayPort 1.4 1 x HDMI 2.1 port 1 x Clear CMOS button 1 x Flash BIOS button 4 x USB 3.2 Gen 1 5Gbps Type-A ports 4 x USB 3.2 Gen 2 10Gbps Type-A ports 1 x USB 3.2 Gen 2 10Gbps Type-C port 1 x USB 3.2 Gen 2x2 20Gbps Type-C port 1 x 2.5Gbps LAN (RJ45) port 2 x Wi-Fi antenna connectors 5 x Audio jacks 1 x Optical S/PDIF Out connector

See an issue?Report an issue on OpenDB
