Product Information
Manufacturer
MSI
Series
PRO
Release Year
2019
Manufacturer Color
Unknown
UPC
824142189627
EAN
0824142189627
Part Numbers
X570APRO X570-A PRO
BuildCores ID
07ki41ji0
General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD 570X
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 3 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 3.0 x4 and SATA 6Gb/s
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek RTL8111H 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
2
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
Back-Connect Connectors
No
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC1220
Audio Channels
7.1

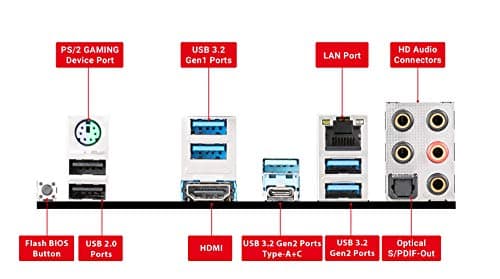

Back Panel Ports
1 x Flash BIOS Button 1 x PS/2 keyboard/mouse combo port 2 x USB 2.0 ports 1 x HDMI port 4 x USB 3.2 Gen1 ports 1 x LAN (RJ45) port 1 x USB 3.2 Gen2 Type A port 1 x USB 3.2 Gen2 Type C port 5 x OFC audio jacks 1 x Optical S/PDIF OUT connector
Motherboard

MSI X570-A PRO

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics Desktop Processors for AM4 socket

Audio boost 4 technology with nahimic 3 software enhancement for immersive experiences

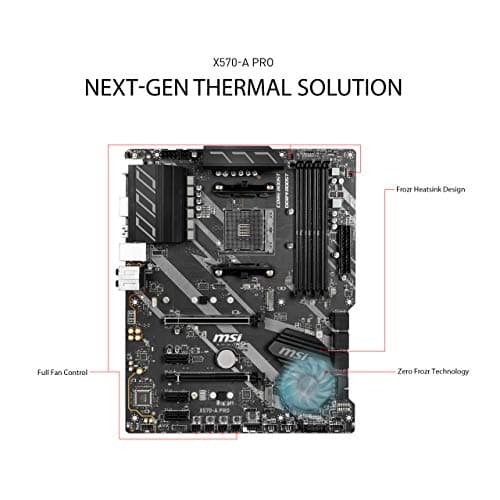

Frozr heatsink with patented fan design – propeller blade technology and double ball bearings

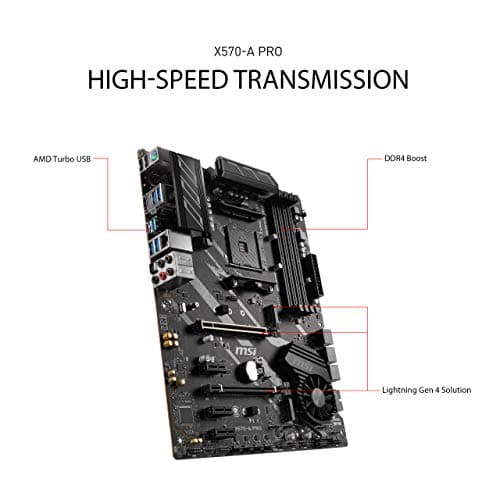

Pci-e gen 4 & lightning gen 4 m. 2 slots capable of unidirectional transfer speeds up to 64 GB/s

Turbo usb 3. 2 gen2 with reversible type-c connector. Operating system-support for windows 10 64-bit

Additional Features

Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics Desktop Processors for AM4 socket

Audio boost 4 technology with nahimic 3 software enhancement for immersive experiences

Frozr heatsink with patented fan design – propeller blade technology and double ball bearings

Pci-e gen 4 & lightning gen 4 m. 2 slots capable of unidirectional transfer speeds up to 64 GB/s

Turbo usb 3. 2 gen2 with reversible type-c connector. Operating system-support for windows 10 64-bit
