General Specifications
Socket
LGA 1851
Form Factor
ATX
Chipset
Intel Z890
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
GREEN
BLACK
GREY
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
2 x PCIe 4.0 x4
M.2 Slots
M 2260/ 2280 PCIe 5.0 x4
M 2260/ 2280/ 22110 PCIe 4.0 x4
M 2242/ 2260/ 2280 PCIe 4.0 x4
M 2242/ 2260/ 2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Intel Killer E5000 5Gbps LAN controller 10 Gb/s
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
1
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
6
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
1
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC1220P
Audio Channels
7.1

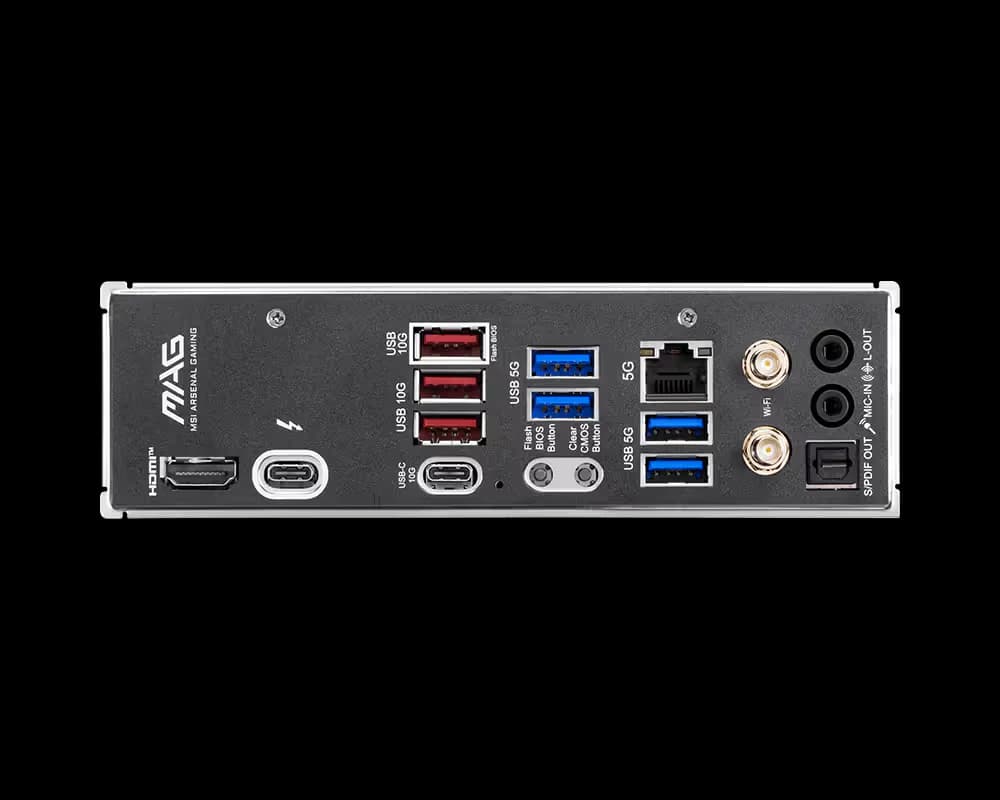

Back Panel Ports
1 x HDMI port
1 x Thunderbolt 4 USB-C port
1 x Flash BIOS button
1 x Clear CMOS button
3 x USB 10Gbps Type-A ports
1 x USB 10Gbps Type-C port
4 x USB 5Gbps Type-A ports
1 x 5Gbps LAN (RJ45) port
2 x Wi-Fi Antenna connectors
2 x audio jacks
1 x Optical S/PDIF Out connector
Product Information
Manufacturer
MSI
Series
MAG
Variant
Z890 TOMAHAWK WIFI II
Release Year
2026
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
MAG-Z890-TOMAHAWK-WIFI-II
BuildCores ID
0ev07qnaq
Motherboard

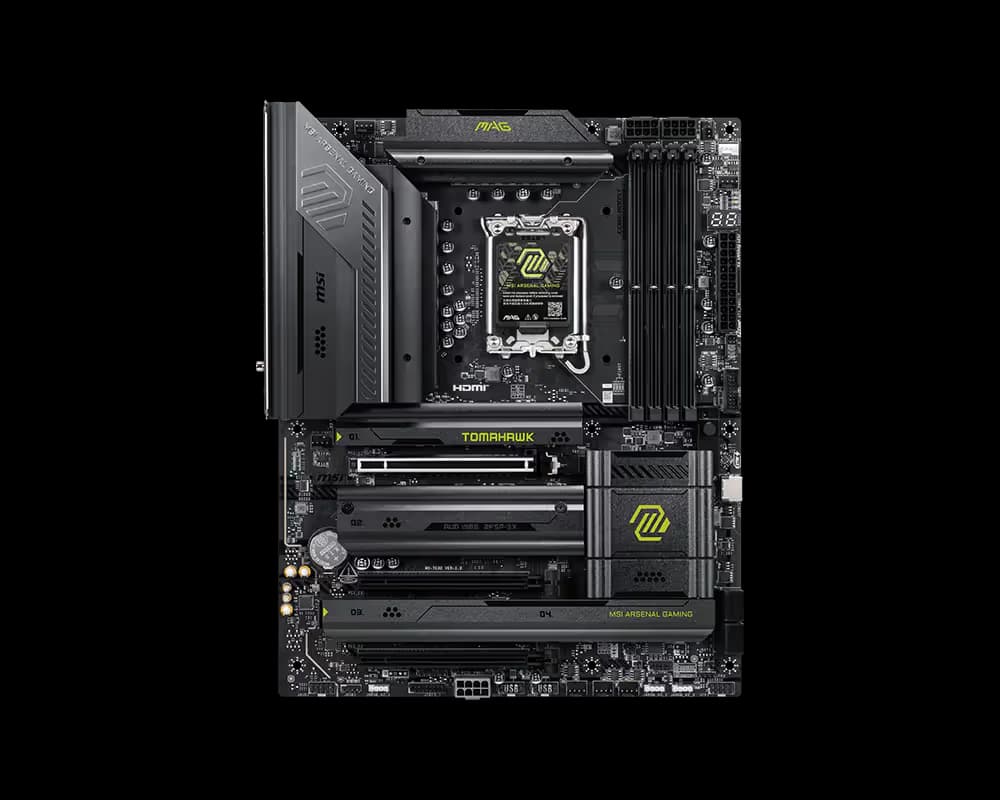

MSI MAG Z890 TOMAHAWK WIFI II
