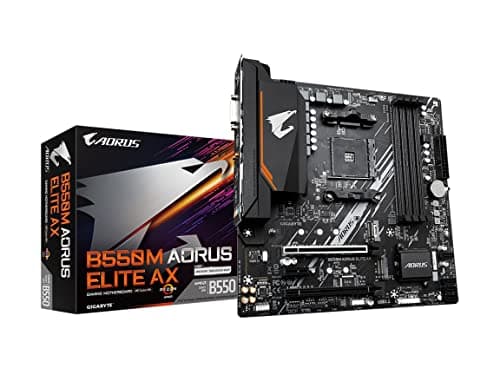

Gigabyte B550M AORUS ELITE AX DDR4 Micro ATX image

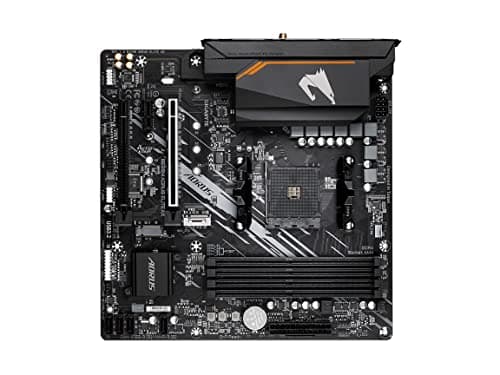

Gigabyte B550M AORUS ELITE AX DDR4 Micro ATX main image

Product Information

Manufacturer

Gigabyte

Series

B550M

Variant

AORUS ELITE

Release Year

Unknown

Manufacturer Color

Unknown

UPC

889523037294

EAN

4719331855055

Part Numbers

B550M AORUS ELITE AX

BuildCores ID

0fu3hx12j

General Specifications

Socket

AM4

Form Factor

Micro ATX

Chipset

AMD B550

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 3.0 x2

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 1 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

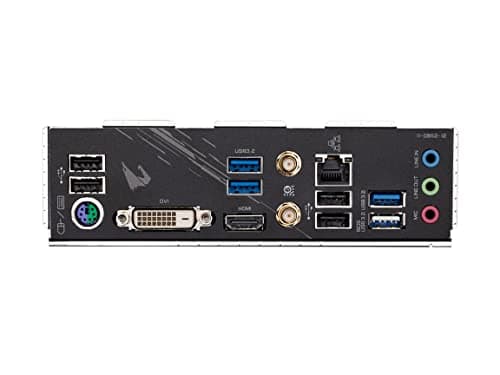

Back Panel Ports

1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

See an issue?Report an issue on OpenDB
