General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B850
Max Memory
128 GB
Memory Type
DDR5
Memory Slots
2
Colors
BLACK
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 3.0 x1
M.2 Slots
M 2260/ 2280 PCIe 5.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 8125 2.5G LAN 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
2
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
1
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
0
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1

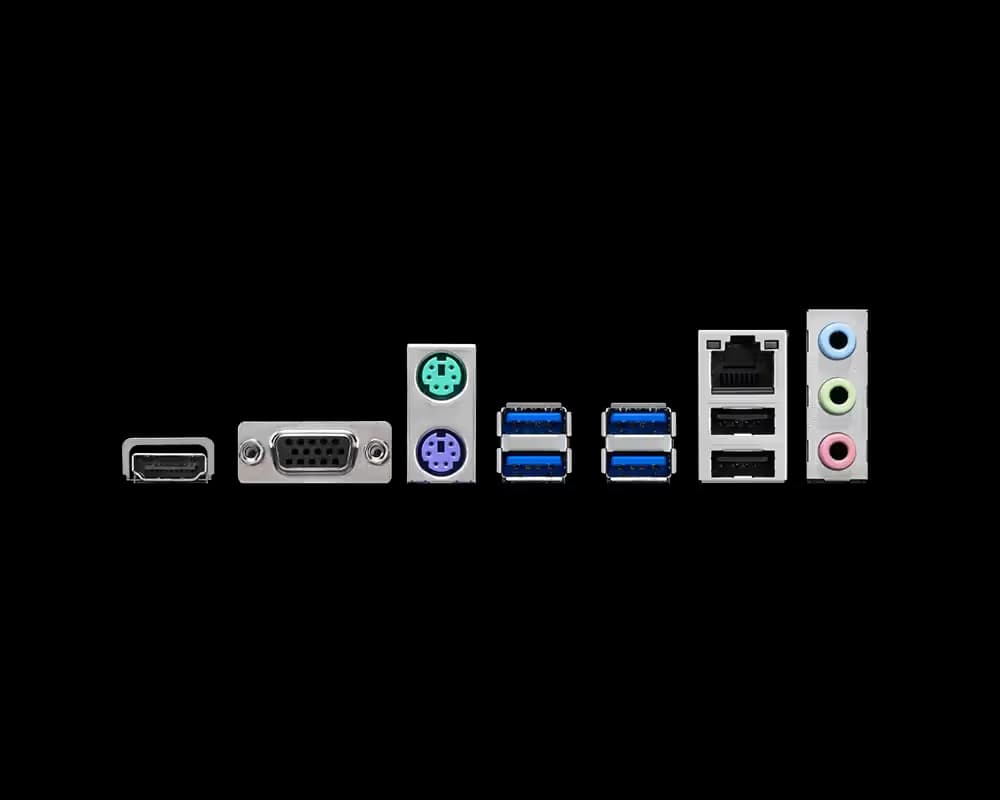

Back Panel Ports
1x HDMI port
1x VGA port
1x PS/2 mouse port
1x PS/2 keyboard port
2x USB 5Gbps Type-A ports
2x USB 5Gbps Type-A ports
1x USB 2.0 Type-A port
1x USB 2.0 Type-A port
1x 2.5Gbps LAN port
3x Audio jacks
Product Information
Manufacturer
MSI
Series
PRO
Variant
B850ME-EVO
Release Year
2025
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
None
BuildCores ID
1tipjouoy
Motherboard
MSI PRO B850M-E EVO
SocketAM5
Form FactorMicro ATX
ChipsetAMD B850
Loading...
LoadingLoading...
LoadingNo retailers available yet
Price History
Loading price history...
* Amazon pricing is not included in price history graphs.
