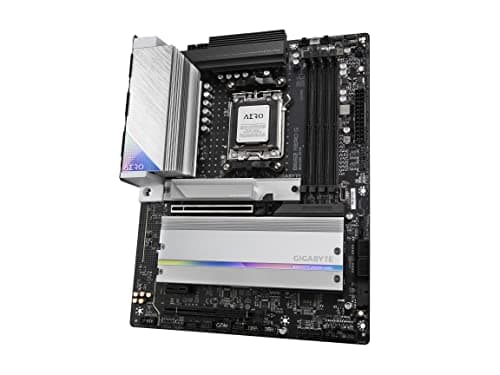

Gigabyte B650 AERO G AM5 WIFI DDR5 ATX image

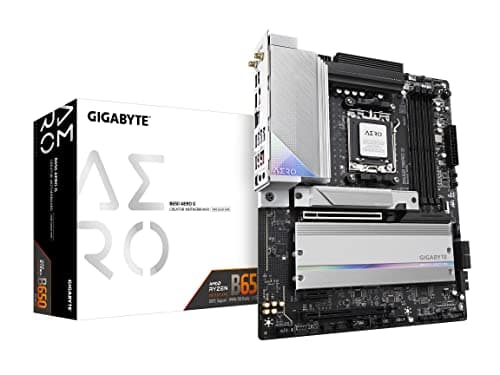

Gigabyte B650 AERO G AM5 WIFI DDR5 ATX main image

Product Information

Manufacturer

Gigabyte

Series

B650

Variant

AERO G

Release Year

Unknown

Manufacturer Color

Unknown

UPC

889523033708

EAN

0889523033708

Part Numbers

B650 AERO G B650

BuildCores ID

21s3xqxc3

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B650

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 25110/22110/2580/2280 PCIe 5.0 x4 M 25110/22110/2580/2280 PCIe 4.0 x4 M 25110/22110/2580/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Wi-Fi 6E Bluetooth 5.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

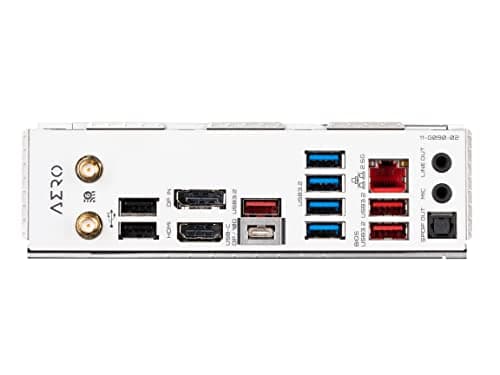

Back Panel Ports

2 x SMA antenna connectors (2T2R) 2 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port (DisplayPort) with USB 3.2 Gen 2 support 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x Audio jacks 1 x Optical S/PDIF Out connector

See an issue?Report an issue on OpenDB

Motherboard

Gigabyte B650 AERO G AM5 WIFI DDR5 ATX

Name: Gigabyte B650 AERO G AM5 WIFI DDR5 ATX
Brand: Gigabyte
SKU: 21s3xqxc3

Best Price

$248.99

via

	—	$248.99
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$248.99 via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$248.99 via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links
