LoadingGeneral Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B650
Max Memory
192 GB
Memory Type
DDR5
Memory Slots
4
Colors
GREY
ORANGE
WHITE
Lighting
Unknown
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 4.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 5.0 x4
M 2242/2260/2280 PCIe 5.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 2.5 Gb/s
WiFi
Wi-Fi 6 Bluetooth 5.2
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
2
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
4-pin
ECC Support
Unknown
RAID Support
Yes
Back-Connect Connectors
Unknown
BIOS Flashback
Yes
Clear CMOS Button
Unknown
Audio Chipset
Realtek ALC897
Audio Channels
7.1
Back Panel Ports
1 x HDMI 1.4 port
1 x DisplayPort 1.2
1 x USB 3.2 Gen 2 Type-C port
1 x USB 3.2 Gen 2 Type-A port
2 x USB 3.2 Gen 1 Type-A ports
4 x USB 2.0 ports
1 x 2.5G LAN (RJ45) port
2 x Wi-Fi Antenna connectors
6 x Audio jacks
1 x BIOS Update Button
Product Information
Manufacturer
Colorful
Series
B650M
Variant
MEOW WiFi Orange
Release Year
Unknown
Manufacturer Color
Unknown
UPC
None
EAN
None
Part Numbers
COLORFIRE B650M-MEOW WIFI
BuildCores ID
2dox5o5gw
Motherboard
3D

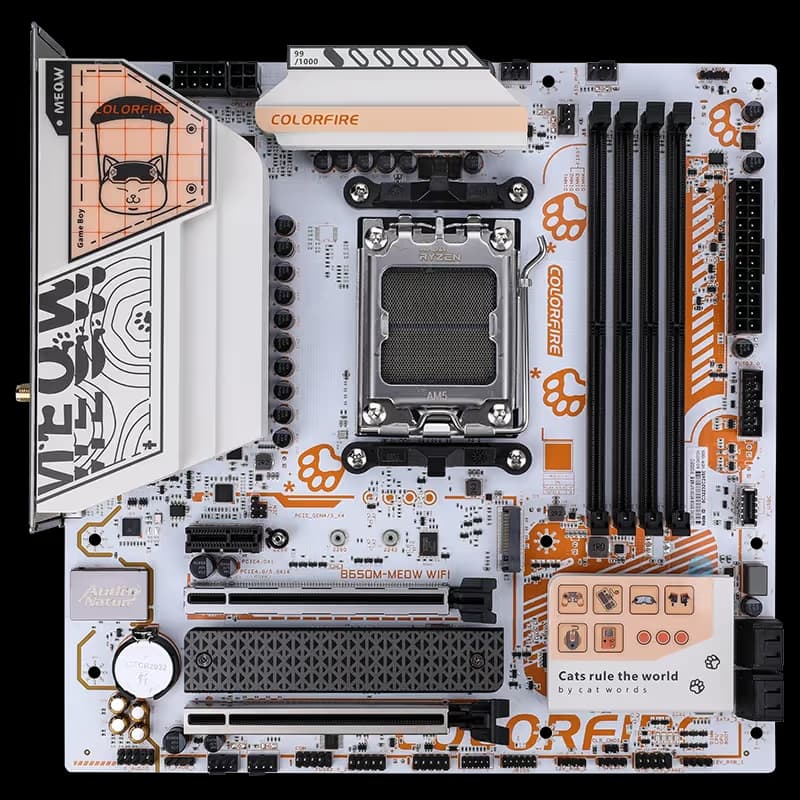

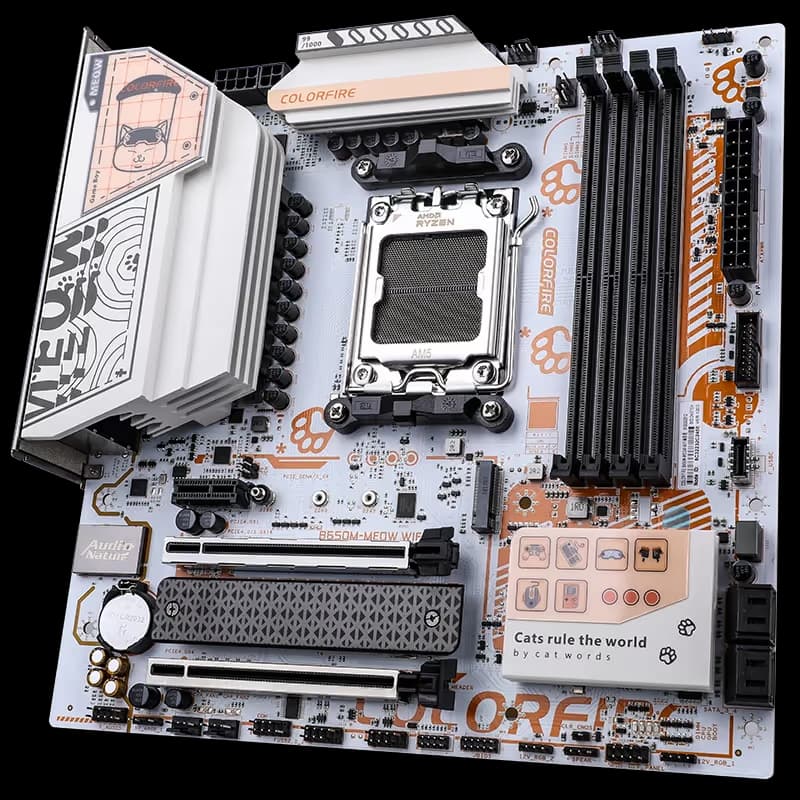

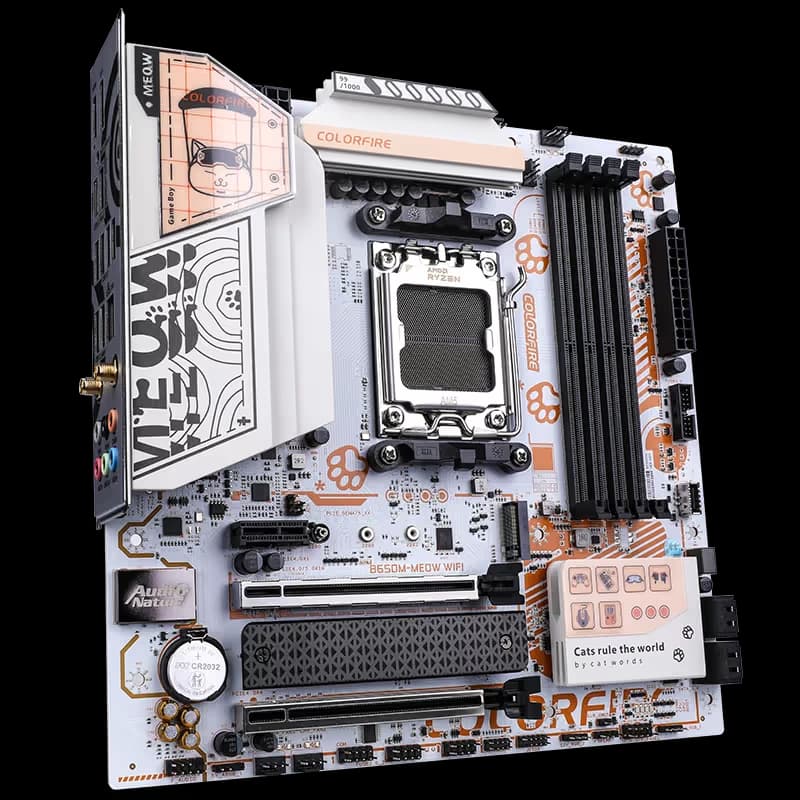

COLORFIRE B650M-MEOW WIFI ORANGE
