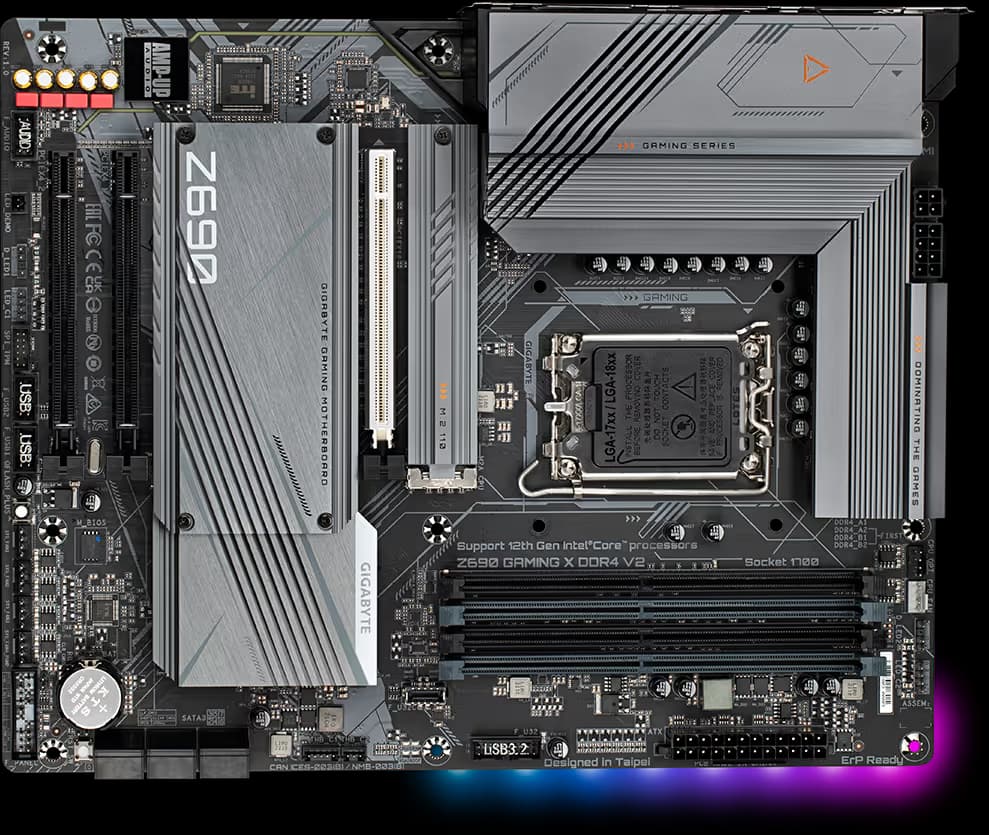

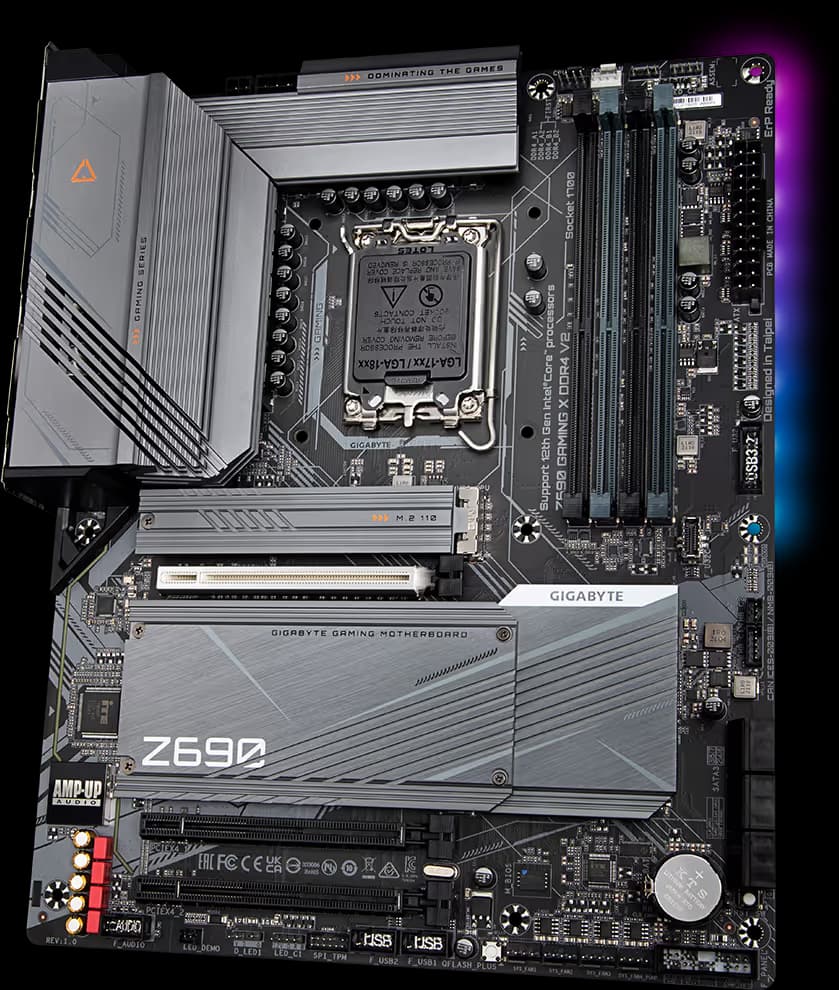

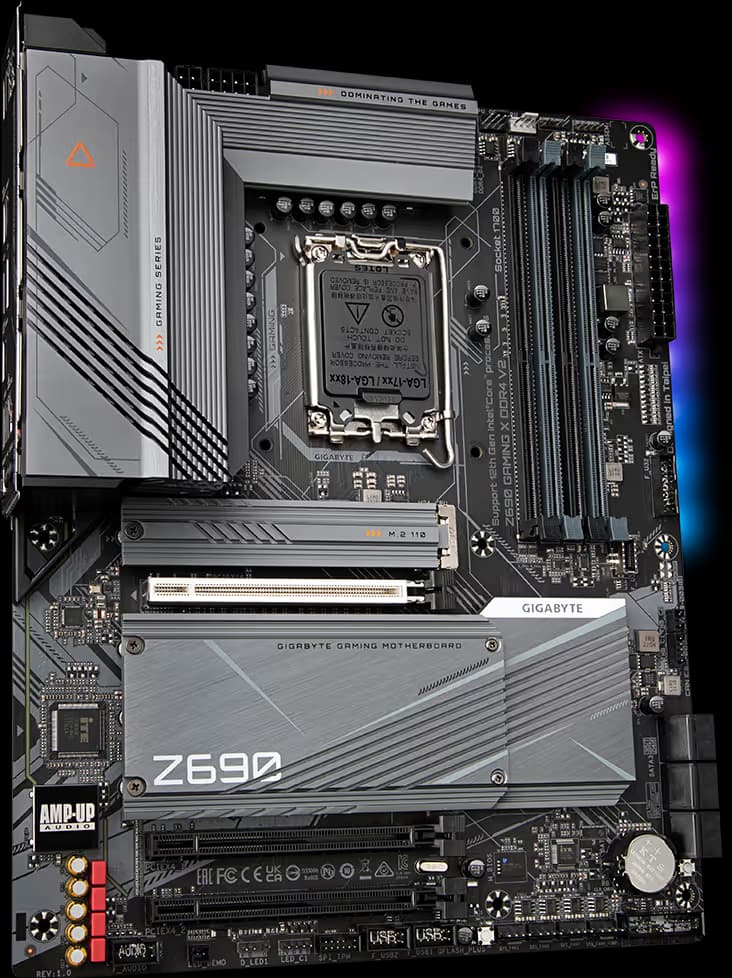

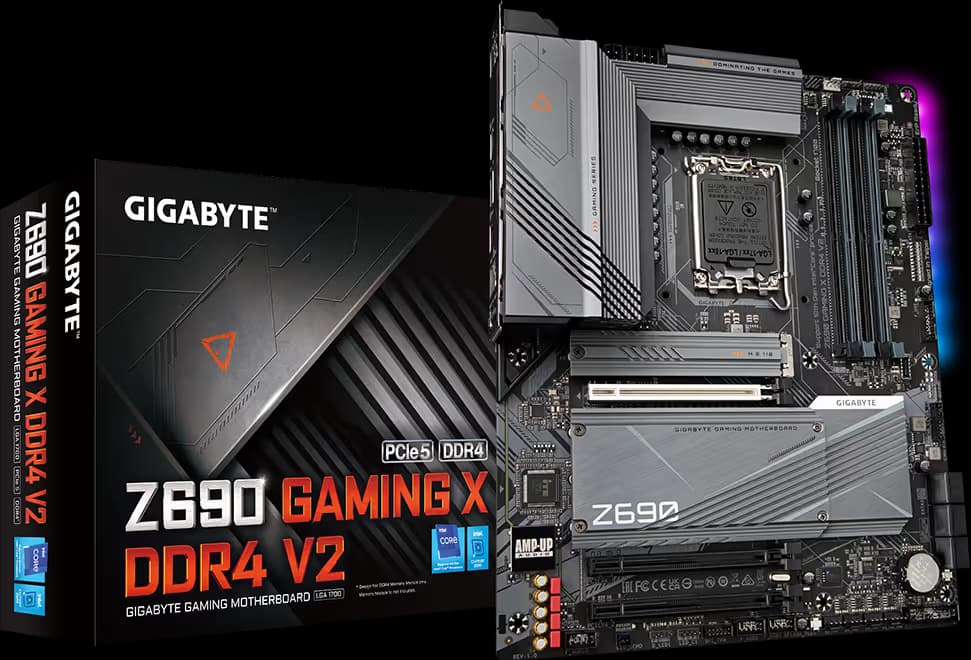

Gigabyte Z690 GAMING X DDR4 V2 image
Gigabyte Z690 GAMING X DDR4 V2 image
Gigabyte Z690 GAMING X DDR4 V2 image
Gigabyte Z690 GAMING X DDR4 V2 image
Gigabyte Z690 GAMING X DDR4 V2 image
Gigabyte Z690 GAMING X DDR4 V2 main image
General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z690
Weight
Unknown
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK GREY
Lighting
Unknown
PCIe Slots
1 x PCIe 5.0 x16 2 x PCIe 3.0 x4
M.2 Slots
M 2260/2280/22110 PCIe 4.0 x4 M 2260/2280/22110 PCIe 4.0 x4 M 2260/2280/22110 PCIe 4.0 x4 M 2260/2280/22110 PCIe 4.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 2.5GbE LAN 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
2
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
2
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin 4-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC1220-VB
Audio Channels
7.1

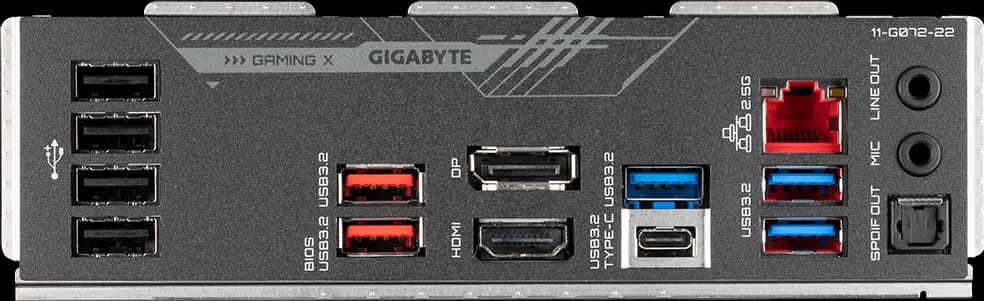

Back Panel Ports
1 x USB Type-C port with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Display Outputs
Unknown
Product Information
Manufacturer
Gigabyte
Series
GAMING
Variant
Z690 X DDR4 V2
Release Year
2021
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
Z690-GAMING-X-DDR4-V2-rev-10
BuildCores ID
2i60vesti
See an issue?Report an issue on OpenDB
Motherboard

Gigabyte Z690 GAMING X DDR4 V2

Best Price

$312.91

via
Loading...
Walmart
FREE s/h

$312.91

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Walmart
FREE s/h
—
In stock

$312.91

via Walmart

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Walmart
FREE s/h
—
In stock

$312.91

via Walmart

* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue
