LoadingProduct Information
Manufacturer
Colorful
Series
B860M
Variant
iGame ULTRA V20
Release Year
Unknown
Manufacturer Color
Unknown
UPC
None
EAN
None
Part Numbers
None
BuildCores ID
2mfjv0xqt
General Specifications
Socket
LGA 1851
Form Factor
Micro ATX
Chipset
Intel B860
Max Memory
192 GB
Memory Type
DDR5
Memory Slots
4
Colors
WHITE
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
M.2 Slots
M 2242/2260/2280 PCIe 5.0 x4
M 2242/2260/2280/22110 PCIe 4.0 x4
M 2242/2260/2280/22110 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
None
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
1
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
Unknown
RAID Support
Yes
Back-Connect Connectors
Unknown
BIOS Flashback
Unknown
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC1220
Audio Channels
7.1
Back Panel Ports
4×USB 2.0 interfaces
2×USB 3.2 Gen 1 Type-A interfaces
1×USB 3.2 Gen 2 Type-A interface
1×USB4 Type-C interface
1×DP 1.4 interface
1×HDMI 2.0 interface
1×2.5G network interface
1×S/PDIF audio interface
1×BIOS update button
1×CMOS clearing key
Motherboard
3D

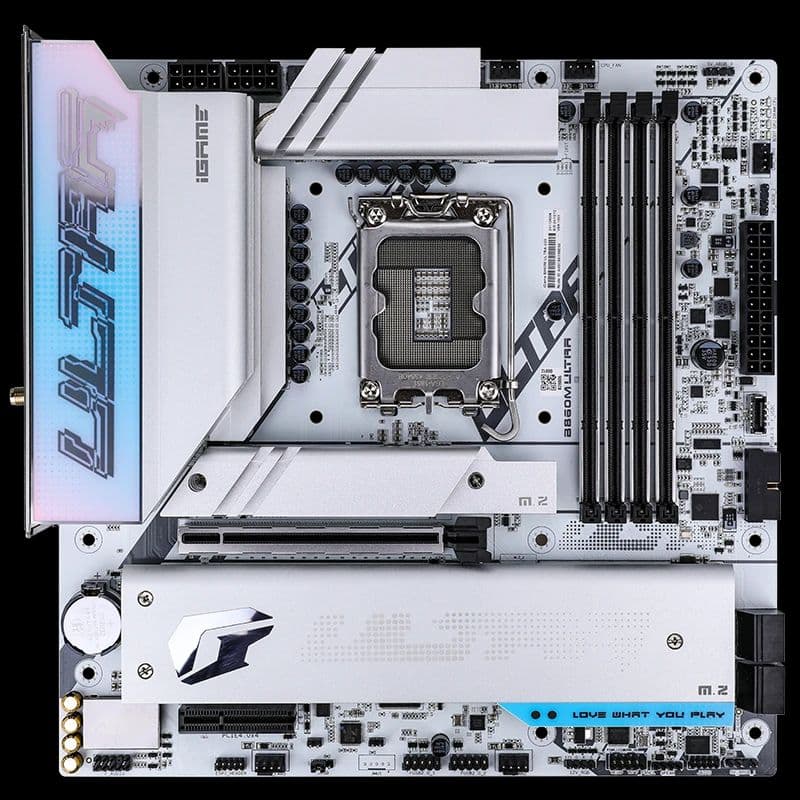

Colorful iGame B860M Ultra V20
