Product Information
Manufacturer
Gigabyte
Series
B840
Variant
GAMING X WIFI
Release Year
Unknown
Manufacturer Color
Unknown
UPC
None
EAN
None
Part Numbers
B840 GAMING X WIFI6E
B840 GAMING X WF6E
BuildCores ID
2pp8qn84o
General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD B840
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
PCIe Slots
1 x PCIe 4.0 x16
1 x PCIe 3.0 x4
2 x PCIe 3.0 x1
M.2 Slots
M 25110/22110/2580/2280 PCIe 4.0 x4
M 25110/22110/2580/2280 PCIe 4.0 x4
M 25110/22110/2580/2280 PCIe 3.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 2.5 Gb/s
WiFi
Wifi 6E Bluetooth 5.3
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
1
RGB 12V Headers
3
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
4-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek
Audio Channels
7.1

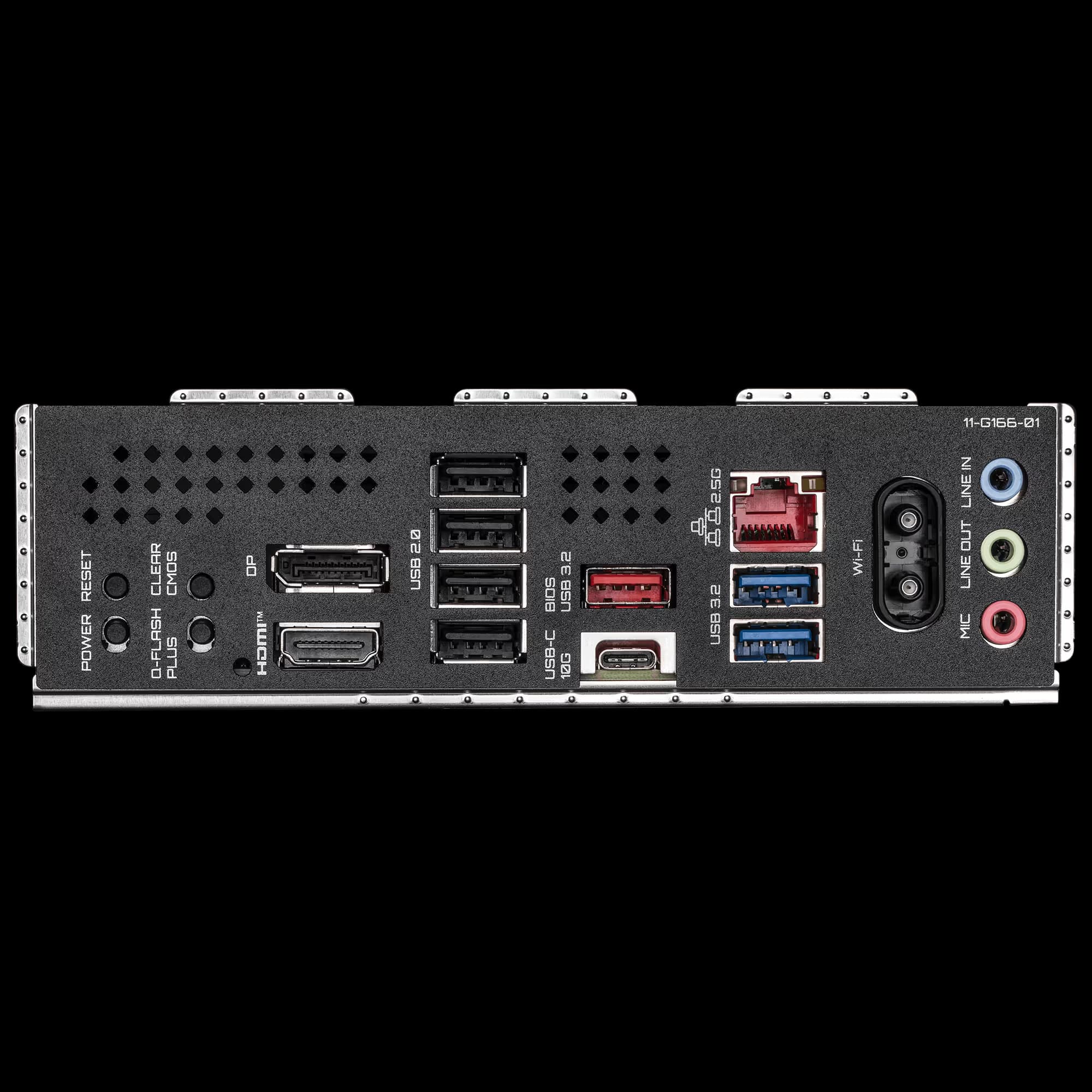

Back Panel Ports
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port (USB 3.2 Gen 2)
1 x USB 3.2 Gen 2 Type-A port (Red)
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port (2.5GbE)
2 x Antenna connectors (2T2R)
3 x Audio jacks
Motherboard

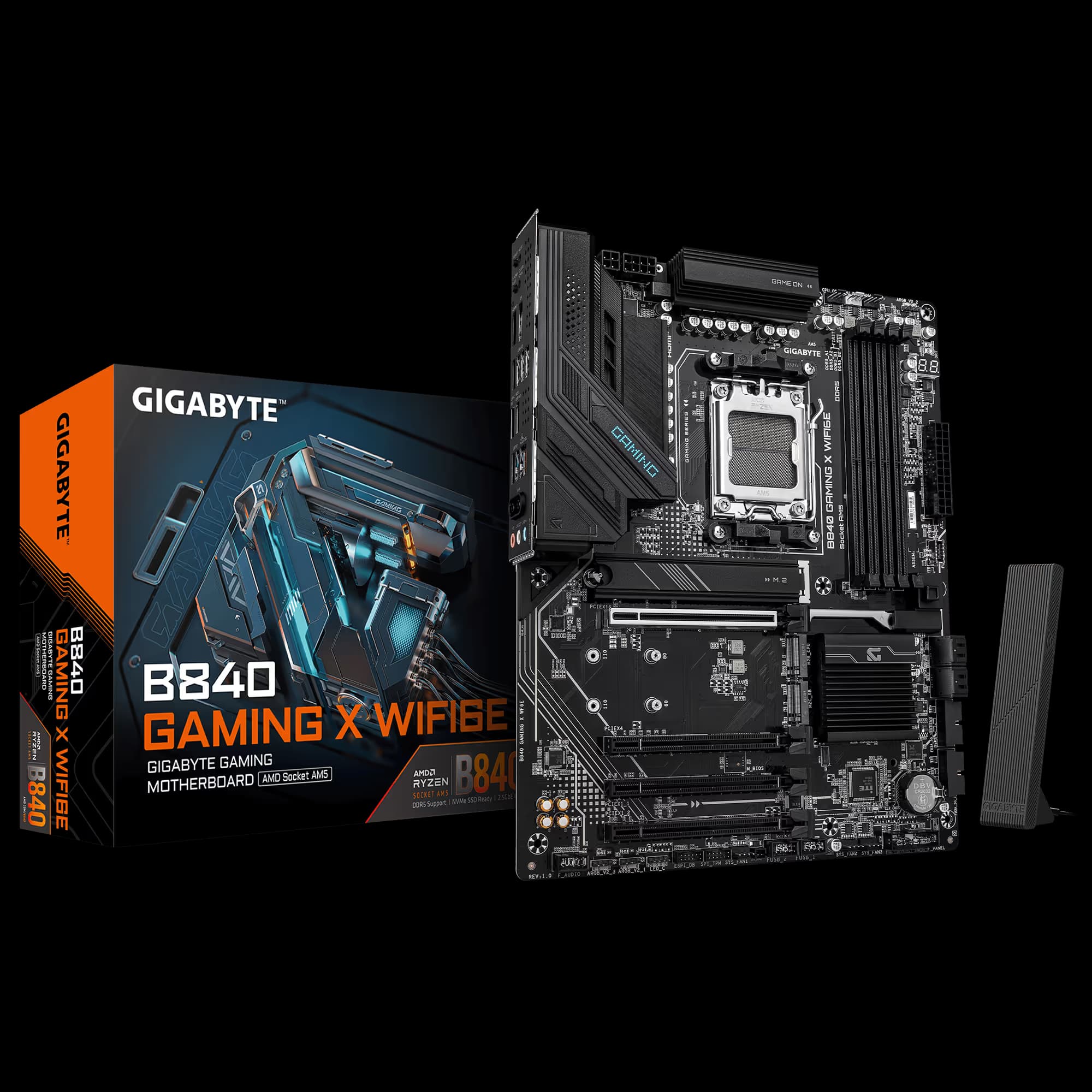

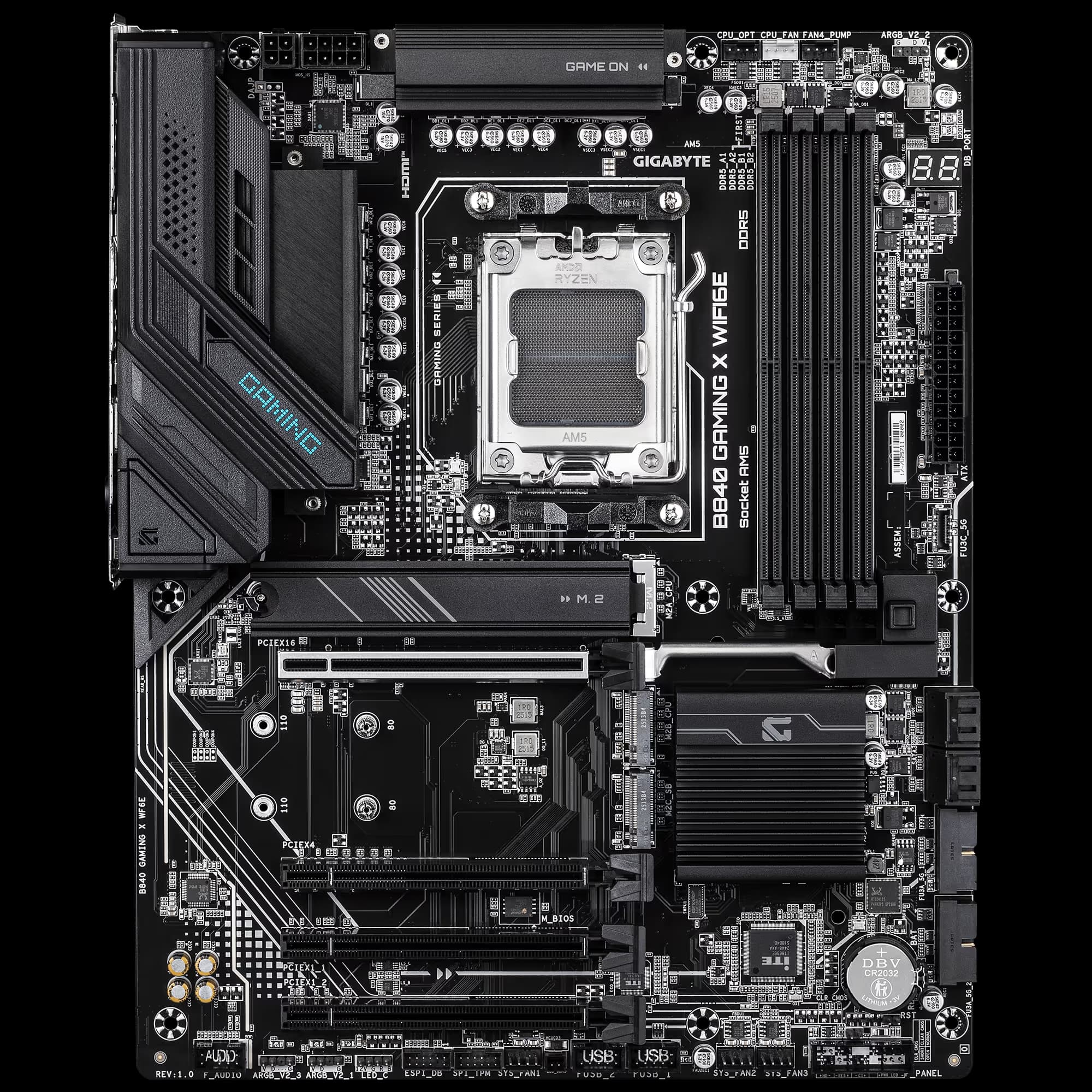

Gigabyte B840 GAMING X WIFI6E DDR5 ATX AM5
