Product Information
Manufacturer
ASUS
Series
ROGSTRIX
Variant
B365-FGAMING
Release Year
2019
Manufacturer Color
Unknown
UPC
192876340455
EAN
0192876340455
Part Numbers
ROG STRIX B365-F GAMING ROGSTRIXB365-FGAMING
BuildCores ID
3f9hun8k7
General Specifications
Socket
LGA 1151
Form Factor
ATX
Chipset
Intel B365
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 3.0 x16 6 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280 PCIE3.0x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
IntelI219-V 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
RealtekALC887
Audio Channels
7.1
Back Panel Ports

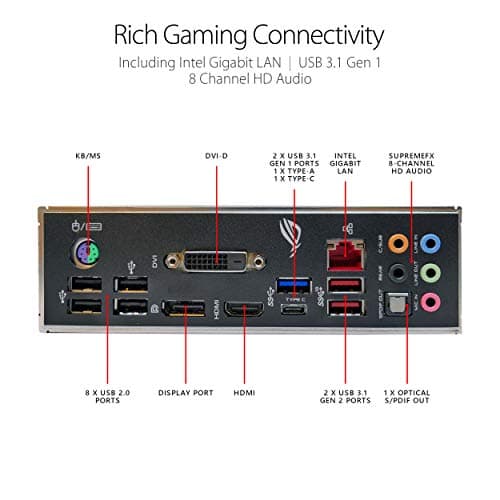

1xPS/2keyboard(purple) 1xPS/2mouse(green) 1xDVI-D 1xD-Sub 1xHDMI 1xLAN(RJ45) 1xUSB3.1Gen1USBType-Cupto5Gbps 4xUSB3.1Gen1Type-A 1x8-channelAudioI/O
Motherboard

ASUSROGSTRIXB365-FGAMING

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

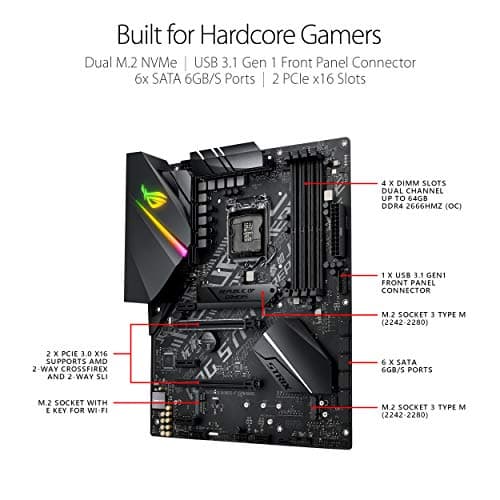

1. LGA1151 socket: ready for 9th/8th Gen Intel Core desktop processors.

2. Dual Channel Non-ECC Un-buffered DDR4, 4 x DIMM slots support up to 64GB DDR4 Memory

3. Gaming connectivity: Dual onboard M. 2 with Intel Optane Memory Ready, USB 3. 1 Gen 2 Type-A connectors, DisplayPort, HDMI and DVI

4. Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer and lag-free online play.

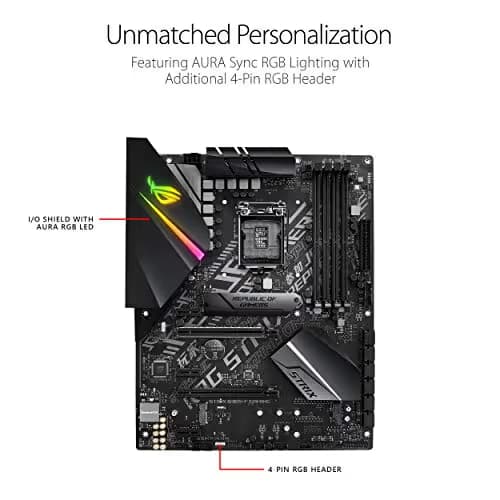

5. Unmatched Personalization: one RGB header with Asus exclusive AURA Sync RGB lighting and a 3D-printing friendly mount

6. Comprehensive cooling: fan Xpert 4 with GPU temperature sensing allows for dynamic fan calibration and optimized system cooling while gaming

7. Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.

Additional Features

1. LGA1151 socket: ready for 9th/8th Gen Intel Core desktop processors.

2. Dual Channel Non-ECC Un-buffered DDR4, 4 x DIMM slots support up to 64GB DDR4 Memory

3. Gaming connectivity: Dual onboard M. 2 with Intel Optane Memory Ready, USB 3. 1 Gen 2 Type-A connectors, DisplayPort, HDMI and DVI

4. Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer and lag-free online play.

5. Unmatched Personalization: one RGB header with Asus exclusive AURA Sync RGB lighting and a 3D-printing friendly mount

6. Comprehensive cooling: fan Xpert 4 with GPU temperature sensing allows for dynamic fan calibration and optimized system cooling while gaming

7. Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.

Product Information
Manufacturer
ASUS
Series
ROGSTRIX
Variant
B365-FGAMING
Release Year
2019
Manufacturer Color
Unknown
UPC
192876340455
EAN
0192876340455
Part Numbers
ROG STRIX B365-F GAMING ROGSTRIXB365-FGAMING
BuildCores ID
3f9hun8k7
General Specifications
Socket
LGA 1151
Form Factor
ATX
Chipset
Intel B365
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 3.0 x16 6 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280 PCIE3.0x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
IntelI219-V 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
RealtekALC887
Audio Channels
7.1
Back Panel Ports
1xPS/2keyboard(purple) 1xPS/2mouse(green) 1xDVI-D 1xD-Sub 1xHDMI 1xLAN(RJ45) 1xUSB3.1Gen1USBType-Cupto5Gbps 4xUSB3.1Gen1Type-A 1x8-channelAudioI/O
