Product Information
Manufacturer
ASUS
Series
TUF
Release Year
2018
Manufacturer Color
Unknown
UPC
889349951668
EAN
0889349951668
Part Numbers
TUF X470-Plus Gaming X470-Plus Gaming
BuildCores ID
3n8ccadbf
General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD X470
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
1 x PCIe 3.0 x16 1 x PCIe 3.0 x8 3 x PCIe 2.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIE 3.0 x4 M 2242/2260/2280/22110 SATA M 2242/2260/2280 SATA & PCIE 3.0 x2
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek RTL8111H 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
2
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC887-VD2
Audio Channels
7.1

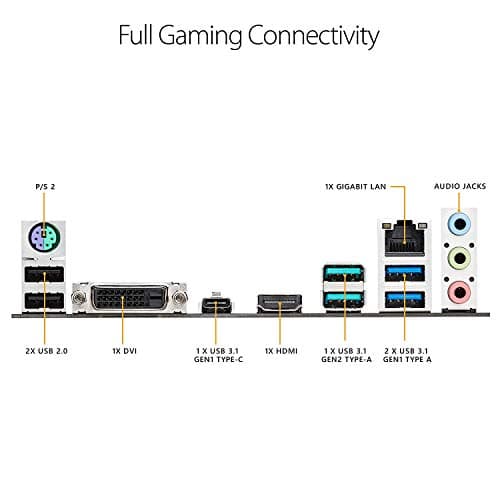

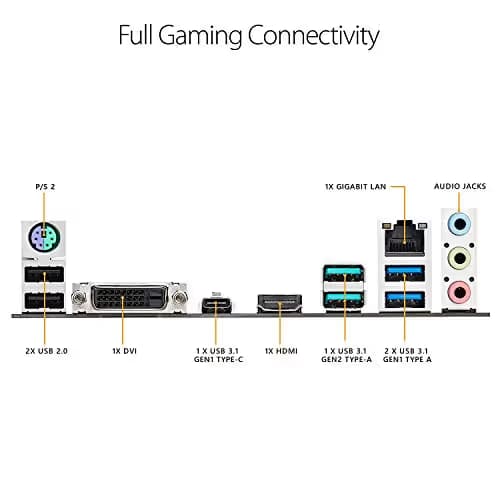

Back Panel Ports
1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A 1 x USB 3.1 Gen 1 (blue) USB Type-C 2 x USB 2.0 2 x USB 3.1 Gen 1 (blue) 3 x Audio jack(s)
Motherboard

ASUS TUF X470-Plus Gaming

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, USB 3.1 Gen2 and gigabit LAN

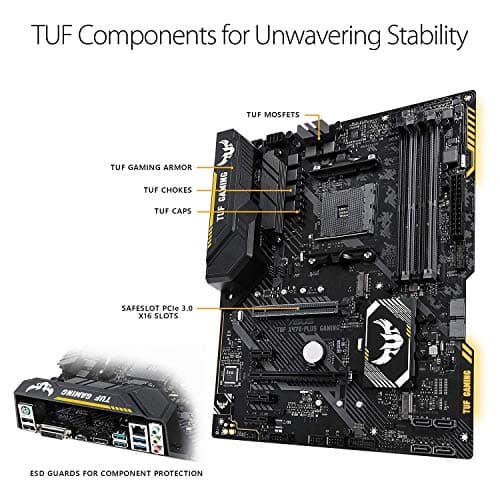

Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize durability

Gamer’s Guardian with SafeSlot and Fan Xpert 4 Core provides hardware-level safeguards for maximum performance with dynamic system cooling

Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and additional RGB header

3-Year Warranty for guaranteed reliability built on military-grade engineering

Additional Features

AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, USB 3.1 Gen2 and gigabit LAN

Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize durability

Gamer’s Guardian with SafeSlot and Fan Xpert 4 Core provides hardware-level safeguards for maximum performance with dynamic system cooling

Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and additional RGB header

3-Year Warranty for guaranteed reliability built on military-grade engineering
