General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z790
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
Lighting
RGB
ARGB
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
2 x PCIe 3.0 x1
M.2 Slots
M 22110/2280/2260/2242 PCIe 4.0 x4
M 2280/2260/2242 PCIe 4.0 x4
M 2280/2260/2242 PCIe 4.0 x4 / SATA
M 2280/2260/2242 PCIe 4.0 x4 / SATA
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel 2.5 Gb/s
WiFi
Wifi 6E
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
6
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
2
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1

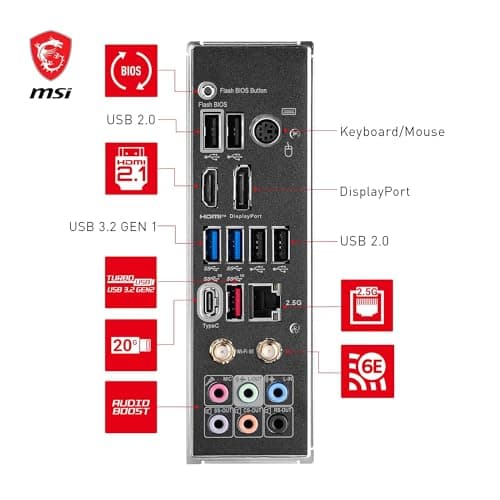

Back Panel Ports
● 1x Flash BIOS button
● 1x PS/2 port
● 4x USB 2.0 Type-A ports (From Z790 chipset)
● 1x DisplayPort
● 1x HDMI™ port
● 1x LAN (RJ45) jack
● 2x USB 3.2 Gen 1 5Gbps Type-A ports (From Z790 chipset)
● 1x USB 3.2 Gen 2 10Gbps Type-A port (From Z790 chipset)
● 1x USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790
● 2x Wi-Fi Antenna connectors
● 6x Audio jacks
Display Outputs
Connector: hdmi
Count: 1
Version Label: HDMI 2.1
Video Signal: hdmi
Transport: native
Graphics Route: integrated
Mode Claims: Resolution: 3840 × 2160 px
Refresh Rate: 60
Claim: maximum_at_resolution
Hdr: supported
Conditions: Maximum 3840 × 2160 @ 60 Hz; HDR supported; requires processor integrated graphics
Connector: displayport
Count: 1
Version Label: DisplayPort 1.4 (HBR2)
Video Signal: displayport
Transport: native
Graphics Route: integrated
Mode Claims: Resolution: 3840 × 2160 px
Refresh Rate: 60
Claim: maximum_at_resolution
Conditions: Maximum 3840 × 2160 @ 60 Hz; HBR2; requires processor integrated graphics
Product Information
Manufacturer
MSI
Series
GAMING
Variant
Z790 PLUS WIFI
Release Year
2023
Manufacturer Color
Black
UPC
824142369197
EAN
0824142369197
4711377134712
Part Numbers
Z790 GAMING PLUS WIFI
7E06-026R
911-7E06-028
MSI Creator M16
Z790 GAMING PLUS WIFI-AMZ
BuildCores ID
46ipg50c2

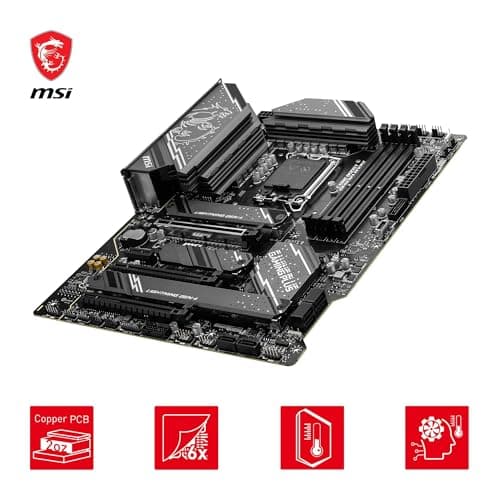

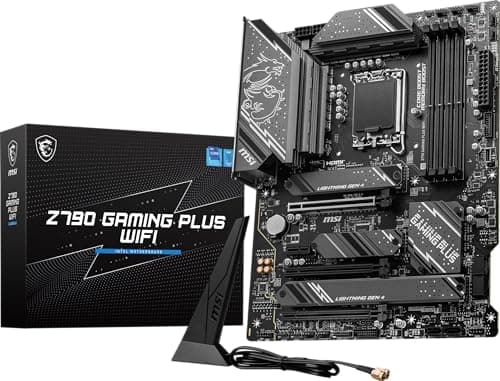

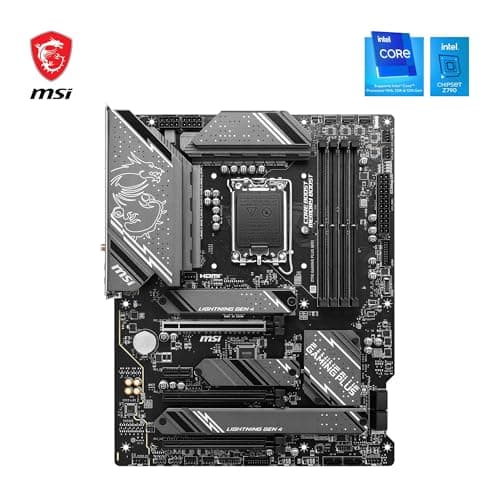

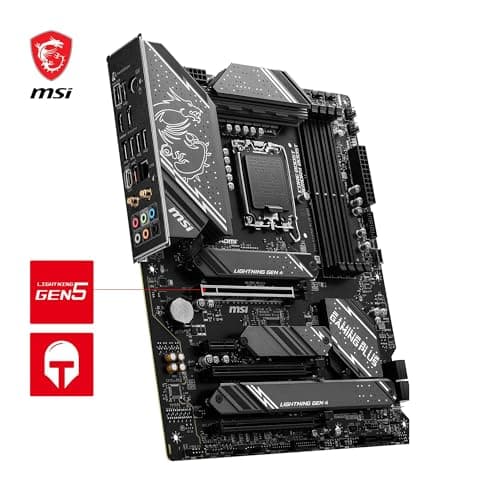

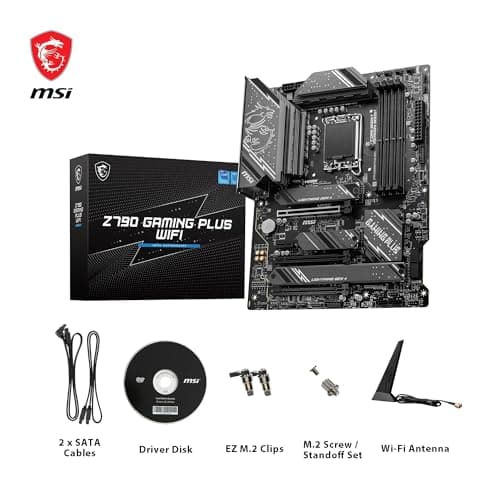

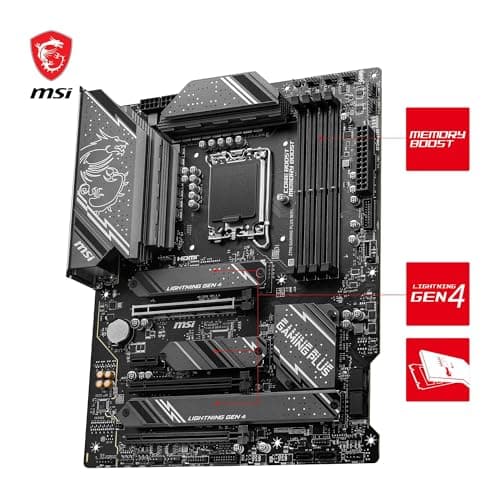

Motherboard
MSI Z790 GAMING PLUS WIFI LGA1700 DDR5 ATX
SocketLGA 1700
Form FactorATX
ChipsetIntel Z790
Best Price
$219.99
viaLoading...
FREE s/h | $219.99 | |
FREE s/h | $219.99 | |
— | $283.71 | |
— | N/A | |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
FREE s/h | — | In stock | $219.99 via Best Buy | |
FREE s/h | — | In stock | $219.99 via MSI | |
— | — | In stock | $283.71 via MemoryC | |
— | — | Check on Amazon | N/A via Amazon |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
FREE s/h | — | In stock | $219.99 via Best Buy | |
FREE s/h | — | In stock | $219.99 via MSI | |
— | — | In stock | $283.71 via MemoryC | |
— | — | Check on Amazon | N/A via Amazon |
