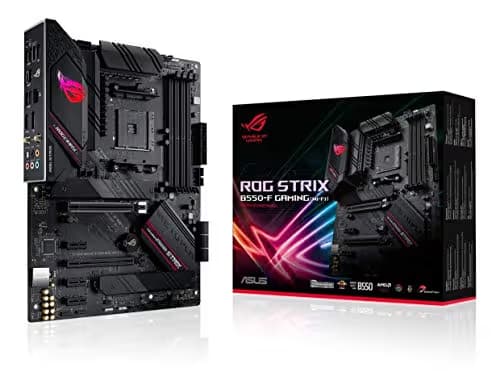

ASUS ROG STRIX B550-F GAMING WIFI main image

General Specifications

Socket

AM4

Form Factor

ATX

Chipset

AMD B550

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK

Lighting

ARGB

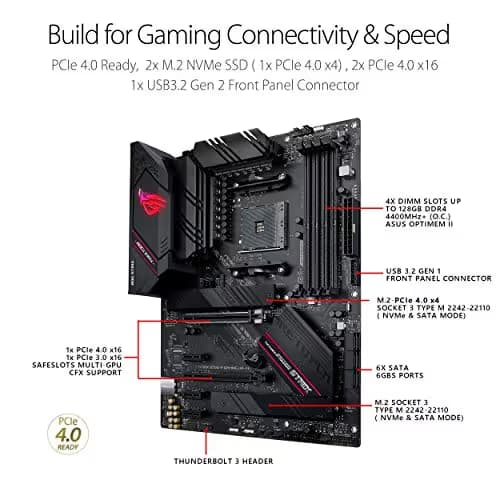

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 3.0 x4 3 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280/22110 PCIe 3.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel I225-V 2.5 Gb/s

WiFi

WiFi 6

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

SupremeFX S1220A

Audio Channels

7.1

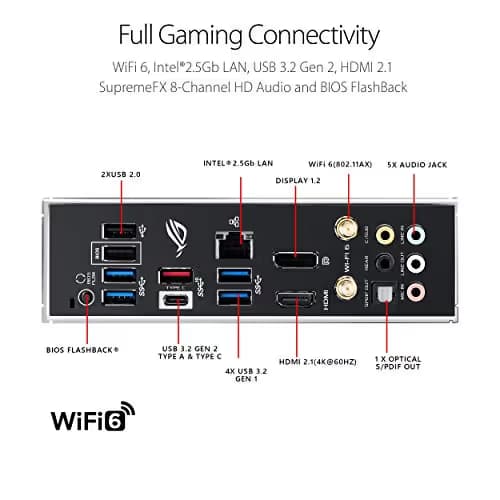

Back Panel Ports

1 x BIOS FlashBack™ Button(s) 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 1 x Intel® I225-V 2.5Gb Ethernet 4 x USB 3.2 Gen 1 ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) 1 x DisplayPort 1 x HDMI 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s)

Product Information

Manufacturer

ASUS

Series

ROG STRIX

Variant

B550-F GAMING WIFI

Release Year

2020

Manufacturer Color

Black

UPC

192876748787

EAN

0192876748787

Part Numbers

ROG STRIX B550-F GAMING (WI-FI) STRIX B550-F GAMING (WI-FI) 90MB14F0-M0EAY0

BuildCores ID

47ul2jvqi
