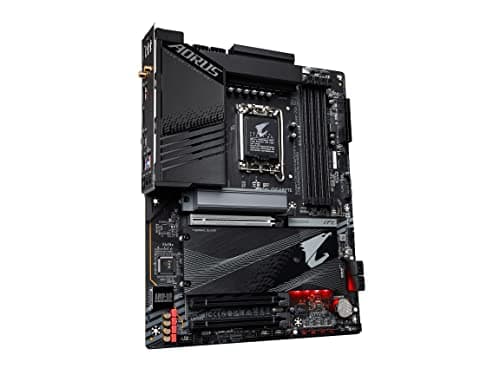

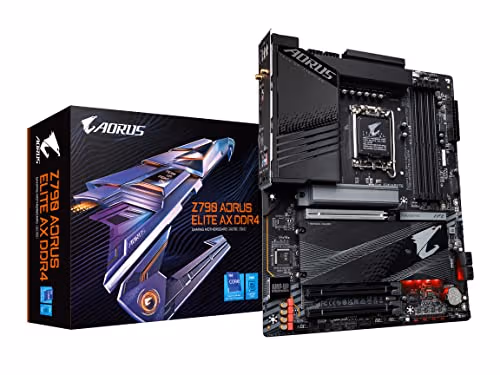

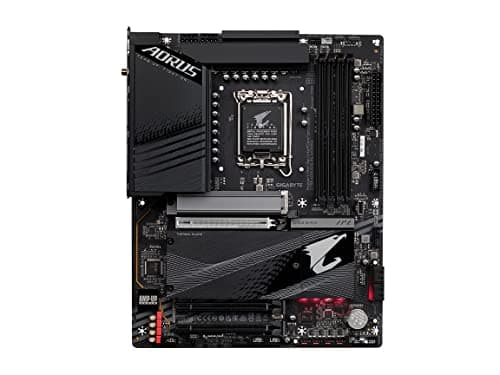

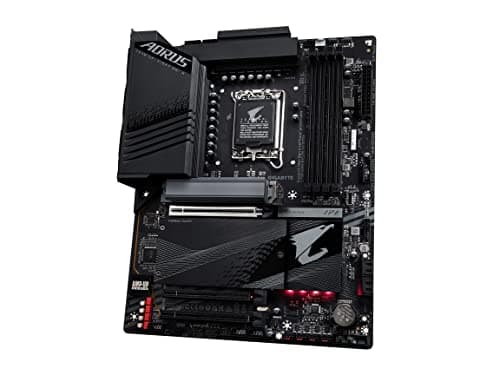

Gigabyte Z790 AORUS ELITE AX DDR4 ATX image

Gigabyte Z790 AORUS ELITE AX DDR4 ATX main image

Product Information

Manufacturer

Gigabyte

Series

Z790

Variant

AORUS ELITE AX DDR4

Release Year

2022

Manufacturer Color

Black

UPC

889523034101

EAN

0889523034101

Part Numbers

Z790 AORUS ELITE AX DDR4

BuildCores ID

49cf2l0nt

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel Z790

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 4.0 x4

M.2 Slots

M 22110/2280 PCIe 4.0 x4 M 22110/2280 PCIe 4.0 x4 M 22110/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

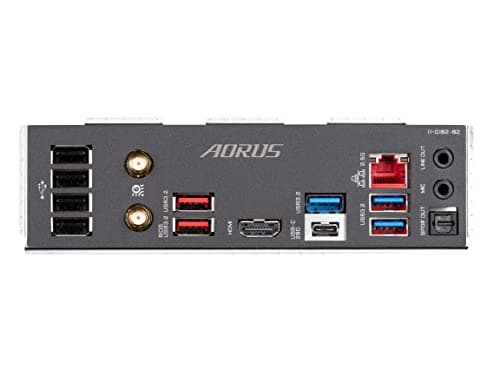

Back Panel Ports

1 x USB Type-C® port with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

See an issue?Report an issue on OpenDB

Motherboard

Gigabyte Z790 AORUS ELITE AX DDR4 ATX

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links
