Product Information

Manufacturer

MSI

Series

MEG

Variant

X570S ACE MAX

Release Year

2024

Manufacturer Color

Unknown

UPC

824142266021

EAN

0824142266021

Part Numbers

7D50-001R 7D50-001

BuildCores ID

4ku6t3wun

General Specifications

Socket

AM4

Form Factor

ATX

Chipset

AMD X570

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x8 1 x PCIe 4.0 x8 1 x PCIe 4.0 x1

M.2 Slots

M 2280/ 22110 PCIe 4.0 M 2260/ 2280 SATA 6Gbps M 2280/ 22110 SATA 6Gbps M 2260/ 2280 SATA 6Gbps

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek RTL8125B 2.5 Gb/s

WiFi

Wifi 6 Bluetooth 5.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA

Audio Channels

7.1

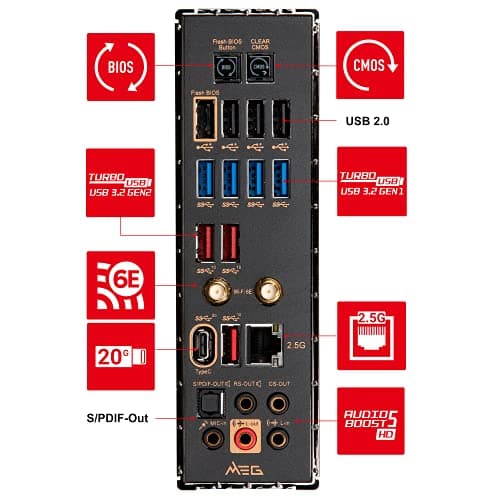

Back Panel Ports

1 x Clear CMOS Button 1 x Flash BIOS Button 1 x 2.5 Gbps LAN (RJ45) port 2 x Antenna Bracket 1 x USB 3.2 Gen 2x2 Type-C 4 x USB 3.2 Gen 1 5Gbps Type-A ports 3 x USB 3.2 Gen 2 10Gbps Type-A ports 1 x Optical S/PDIF Out 5 x Audio Jacks

See an issue?Report an issue on OpenDB

Motherboard

MSI X570S MEG ACE MAX AMD AM4 ATX Motherboard

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Additional Features

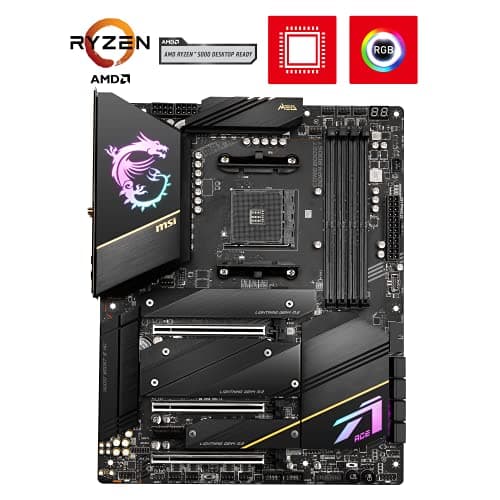

• Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors

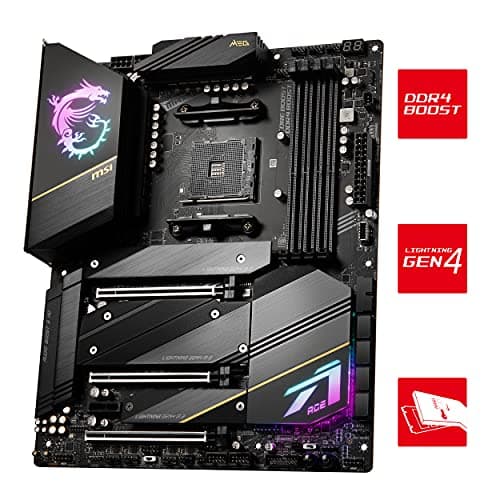

• Supports DDR4 Memory, Dual Channel 5300(OC) MHz+

• Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance

• Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution

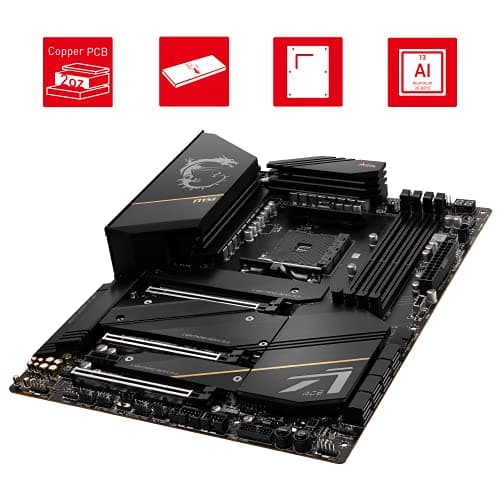

• Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and MOSFET Baseplate

Additional Features

• Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors

• Supports DDR4 Memory, Dual Channel 5300(OC) MHz+

• Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance

• Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution

• Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and MOSFET Baseplate
