General Specifications

Socket

LGA 1200

Form Factor

Micro ATX

Chipset

Intel B460

Weight

Unknown

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

None

Lighting

Unknown

PCIe Slots

1 x PCIe 3.0 x16 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 SATA and PCIe x4/x2 M 2242/2260/2280 SATA and PCIe x4/x2

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel GbE LAN 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC1200

Audio Channels

7.1

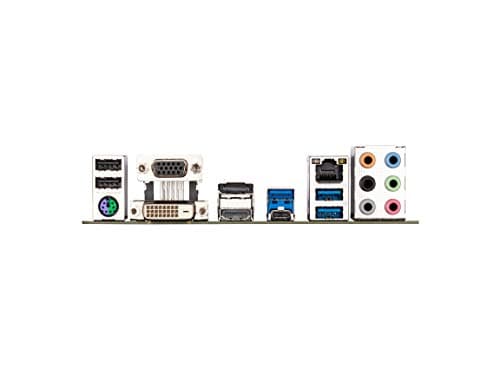

Back Panel Ports

1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks

Display Outputs

Unknown

Product Information

Manufacturer

Gigabyte

Variant

rev. 1.0

Release Year

2020

Manufacturer Color

Unknown

UPC

889523022023

EAN

0889523022023

Part Numbers

B460M D3H

BuildCores ID

4udb1octq

See an issue?Report an issue on OpenDB

Motherboard

B460M D3H

SocketLGA 1200

Form FactorMicro ATX

ChipsetIntel B460

	—	N/A

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Unavailable	N/A via Amazon

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Unavailable	N/A via Amazon

* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue

Price History

Loading price history...

* Amazon pricing is not included in price history graphs.

Additional Features

• Supports 10th Gen Intel Core processors

• Dual Channel Non-ECC Unbuffered DDR4

• Dual NVMe PCIe Gen3 X4 M. 2 Slots

• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

• Intel GbE LAN with cFosSpeed Internet Accelerator Software

• Intel USB 3. 2 Gen1 Type-C Support

• 4 Display Interfaces Support

• GIGABYTE DualBIOS Design

• Intel Optane Memory Ready

Additional Features

• Supports 10th Gen Intel Core processors

• Dual Channel Non-ECC Unbuffered DDR4

• Dual NVMe PCIe Gen3 X4 M. 2 Slots

• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

• Intel GbE LAN with cFosSpeed Internet Accelerator Software

• Intel USB 3. 2 Gen1 Type-C Support

• 4 Display Interfaces Support

• GIGABYTE DualBIOS Design

• Intel Optane Memory Ready
