General Specifications

Socket

LGA 1200

Form Factor

Mini-ITX

Chipset

Intel Z490

Max Memory

64 GB

Memory Type

DDR4

Memory Slots

Colors

None

Lighting

Unknown

PCIe Slots

1 x PCIe 3.0 x16

M.2 Slots

M 2280 PCIe 3.0 x4 M 2280 PCIe 3.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC1220-VB

Audio Channels

7.1

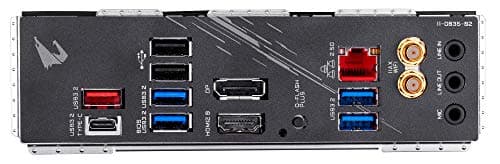

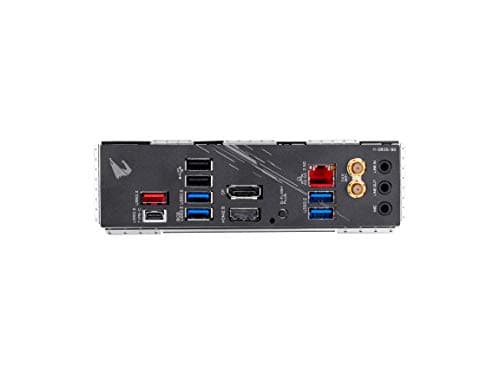

Back Panel Ports

DisplayPort HDMI USB Type-C 3.2 Gen 2 USB 3.2 Gen 2 Type-A (red) USB 3.2 Gen 1 USB 2.0/1.1 Q-Flash Plus button RJ-45 SMA antenna connectors (2T2R) audio jacks

Product Information

Manufacturer

Gigabyte

Series

AORUS

Variant

ULTRA

Release Year

2020

Manufacturer Color

Unknown

UPC

889523021354

EAN

0889523021354

Part Numbers

Z490I AORUS ULTRA

BuildCores ID

55b6rxfp8

See an issue?Report an issue on OpenDB

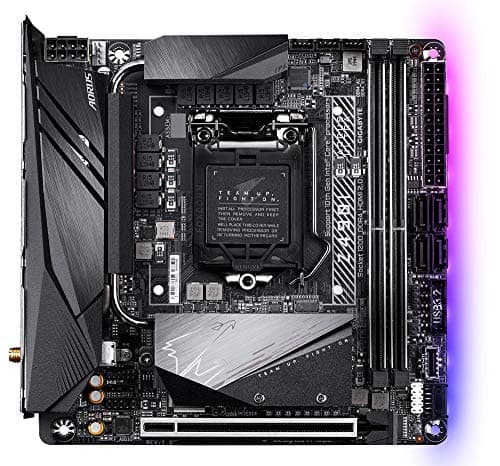

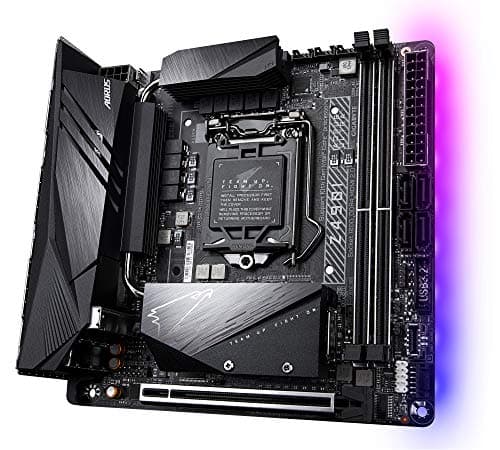

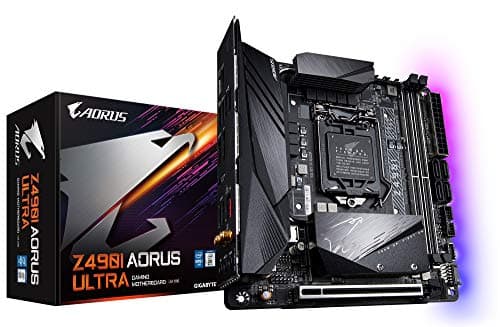

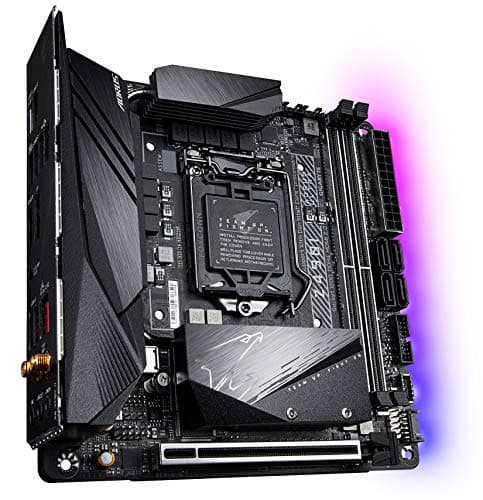

Motherboard

Z490I AORUS ULTRA

SocketLGA 1200

Form FactorMini-ITX

ChipsetIntel Z490

No retailers available yet

Price History

Loading price history...

* Amazon pricing is not included in price history graphs.

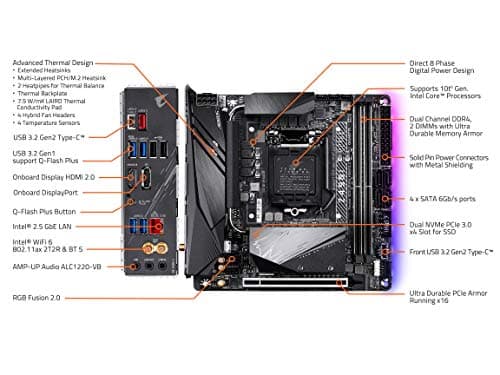

Additional Features

• Supports 10th Gen Intel Core processors

• Direct 8 Phases Digital VRM with 90A Smart Power Stage with Tantalum Polymer Capacitors Array

• Extended MOSFET Heatsink and Multi-layed PCH M.2 Heatsink with Heatpipes

• Xtreme Memory Design Dual Channel DDR4 (4x DIMM slots)

• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

• Intel 2.5 GbE LAN

• 2x M.2 Slots and 1x AORUS Next Gen Thermal Guard

• Intel WiFi 6 and Bluetooth 5 2x2 with AORUS Antenna

• AMP UP Audio ALC1220-VB AUDIO DAC

• RGB Fusion 2.0

Additional Features

• Supports 10th Gen Intel Core processors

• Direct 8 Phases Digital VRM with 90A Smart Power Stage with Tantalum Polymer Capacitors Array

• Extended MOSFET Heatsink and Multi-layed PCH M.2 Heatsink with Heatpipes

• Xtreme Memory Design Dual Channel DDR4 (4x DIMM slots)

• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

• Intel 2.5 GbE LAN

• 2x M.2 Slots and 1x AORUS Next Gen Thermal Guard

• Intel WiFi 6 and Bluetooth 5 2x2 with AORUS Antenna

• AMP UP Audio ALC1220-VB AUDIO DAC

• RGB Fusion 2.0
